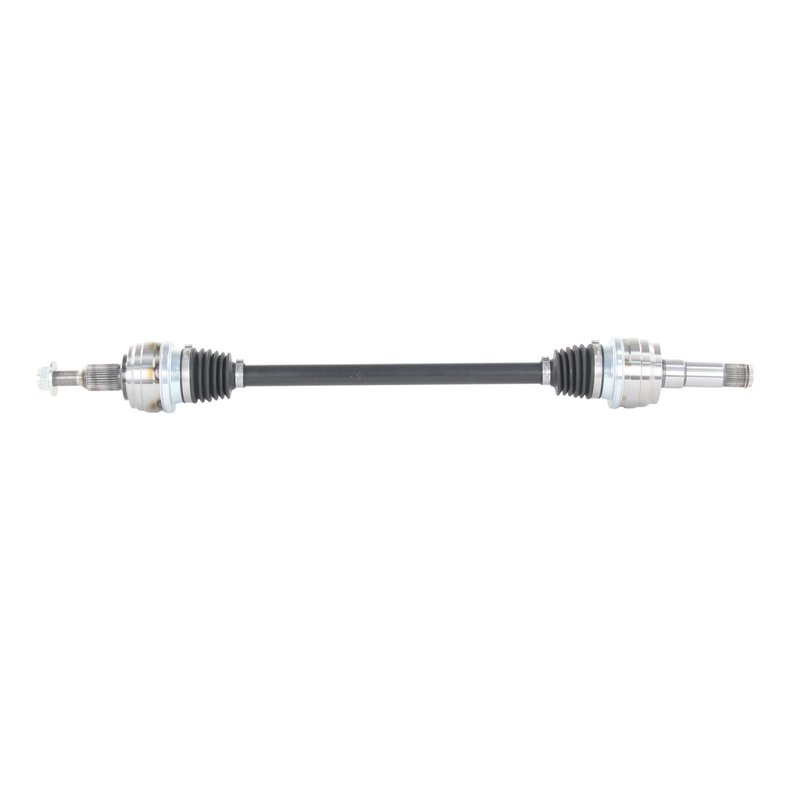

TrakMotive FD-86030 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-86030 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .83 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 35.06 |
| Overall Compressed Length (mm) | 891 |
| Overall Extended Length (in) | 38.25 |
| Overall Extended Length (mm) | 971 |
| Product line | CV Axle Shaft |
| Fits | Ford · 5 vehicles |
OE-style replacement. Built as a CV axle shaft for straightforward service.
Premium grade. Made to deliver dependable driveline performance.
ABS-ready fit. Works in non-ABS applications unless otherwise noted.
Cross-references TrakMotive FD-86030 for the same application. See all 1.
Rear Right CV Axle Shaft for Ford Explorer
TrakMotive FD-86030 is a premium CV axle shaft for the rear right position on 2020-2024 Ford Explorer models. It is built for standard duty replacement service and is specified for non-ABS applications unless otherwise noted.
Key Features
- Fits 2020-2024 Ford Explorer, rear right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male
- Outboard joint type: conventional
- 31 inboard splines and 33 outboard splines
- Overall compressed length: 35.06 in. (891 mm)
- Overall extended length: 38.25 in. (971 mm)
- Axle nut thread size: M22x1.5 with 32 mm hex size
- ABS tone ring not included; ABS ring tooth count: 0
Detailed Description
TrakMotive FD-86030 is a rear right CV axle shaft for the Ford Explorer, covering 2020, 2021, 2022, 2023, and 2024 model years. This axle shaft is engineered with a male inboard joint and a conventional outboard joint, along with the spline counts and dimensions needed for the specified application. It is a direct-fit driveline replacement for rear right Ford Explorer service where the original axle has worn, clicked, or developed vibration under load.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and this FD-86030 part number is listed for standard duty replacement use. The manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted, and the axle is produced by an ISO 9001:2008 and TS 16949:2009 certified company.
This part cross-references TrakMotive FD-86030 for the same application.
Common Repair Uses
- Eliminates clicking or popping from a worn rear axle assembly
- Restores smooth power transfer to the rear right wheel
- Addresses vibration caused by damaged CV joints or shaft wear
- Replaces a bent, noisy, or high-mileage axle shaft
- Supports driveline repair on 2020-2024 Ford Explorer rear right applications
Installation Notes and Tips
Verify rear right fitment, axle nut thread size, and spline count before installation. Confirm whether the vehicle is equipped for a non-ABS axle application, since this axle does not include an ABS tone ring. Use the correct 32 mm axle nut socket size and follow factory torque procedures during installation.
Quality Assurance
TrakMotive FD-86030 is a premium CV axle shaft from an ISO 9001:2008 and TS 16949:2009 certified manufacturer. The part is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Ford | Explorer | AWD | 2.3L | L4 | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Ford | Explorer | — | 3.3L | V6 | FLEX | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | Explorer | — | 3.3L | V6 | FLEX | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Ford | Explorer | — | 3.3L | V6 | FLEX | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Ford | Explorer | — | 3.3L | V6 | FLEX | Rear Right | Standard Duty Replacement; CV Axle Shaft |
