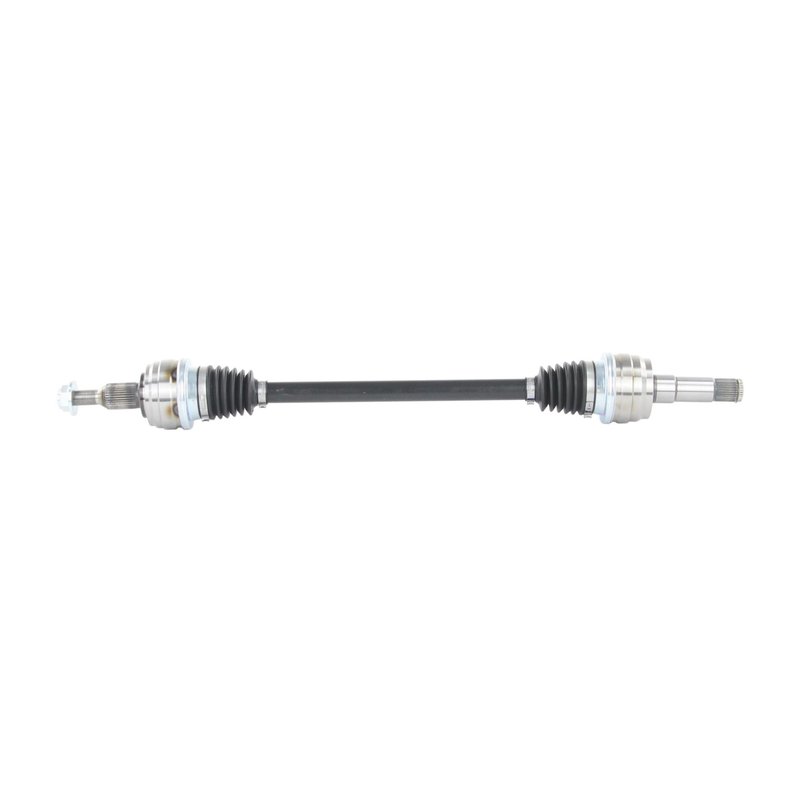

TrakMotive FD-86031 CV Axle Shaft - Rear Left
| Brand | TrakMotive FD-86031 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (in) | .83 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 33.31 |
| Overall Compressed Length (mm) | 846 |
| Overall Extended Length (in) | 36.44 |
| Overall Extended Length (mm) | 926 |
| Product line | CV Axle Shaft |
| Fits | Ford · 5 vehicles |
OE-style replacement. Premium CV axle shaft for a direct-fit driveline repair.
ABS-ready design. Fits non-ABS applications when no ABS tone ring is needed.
Certified quality. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86031 for the same application. See all 1.
Rear Left CV Axle Shaft for Ford Explorer
TrakMotive FD-86031 is a premium CV axle shaft for the rear left position on select 2020-2024 Ford Explorer models. It is built for standard-duty replacement needs and is specified for non-ABS applications unless otherwise noted.
Key Features
- Fits 2020-2024 Ford Explorer, rear left
- Premium-grade CV axle shaft for driveline service
- Inboard joint type: male
- Outboard joint type: conventional
- 31 inboard splines and 33 outboard splines
- Overall compressed length: 33.31 in (846 mm)
- Overall extended length: 36.44 in (926 mm)
- ABS tone ring not included; ABS ring tooth count: 0
- Axle nut thread size: M22x1.5 with 32 mm hex size
Detailed Description
TrakMotive FD-86031 is a rear left CV axle shaft engineered for the Ford Explorer platform from 2020 through 2024. This axle uses a male inboard joint and a conventional outboard joint, with spline counts and dimensions matched to the listed application for proper driveline fitment. It is a standard-duty replacement for vehicles in this fitment range and is intended for non-ABS applications unless otherwise noted. TrakMotive’s CV Axle Shaft line is positioned for direct replacement service in driveline and axle repairs, and this part number is FD-86031.
This part cross-references TrakMotive FD-86031 for the same application.
What It Helps Address
- Clicking or popping noises from a worn CV axle assembly
- Vibration during acceleration from a damaged axle shaft
- Grease leakage caused by a failed CV boot or joint wear
- Driveline looseness or binding at the rear left axle position
- Restoration of proper power transfer in the rear driveline
Installation Notes
Verify rear left fitment before installation on 2020-2024 Ford Explorer models. Confirm axle nut thread size, hex size, spline counts, and overall length against the original part. Because the axle nut is not included, reuse or replace the nut as required by the vehicle service procedure. Check whether the vehicle is equipped for non-ABS application use, since no ABS tone ring is included.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification for its manufacturing quality system.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Ford | Explorer | AWD | 2.3L | L4 | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2023 | Ford | Explorer | — | 3.3L | V6 | FLEX | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | Explorer | — | 3.3L | V6 | FLEX | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Ford | Explorer | — | 3.3L | V6 | FLEX | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Ford | Explorer | — | 3.3L | V6 | FLEX | Rear Left | Standard Duty Replacement; CV Axle Shaft |
