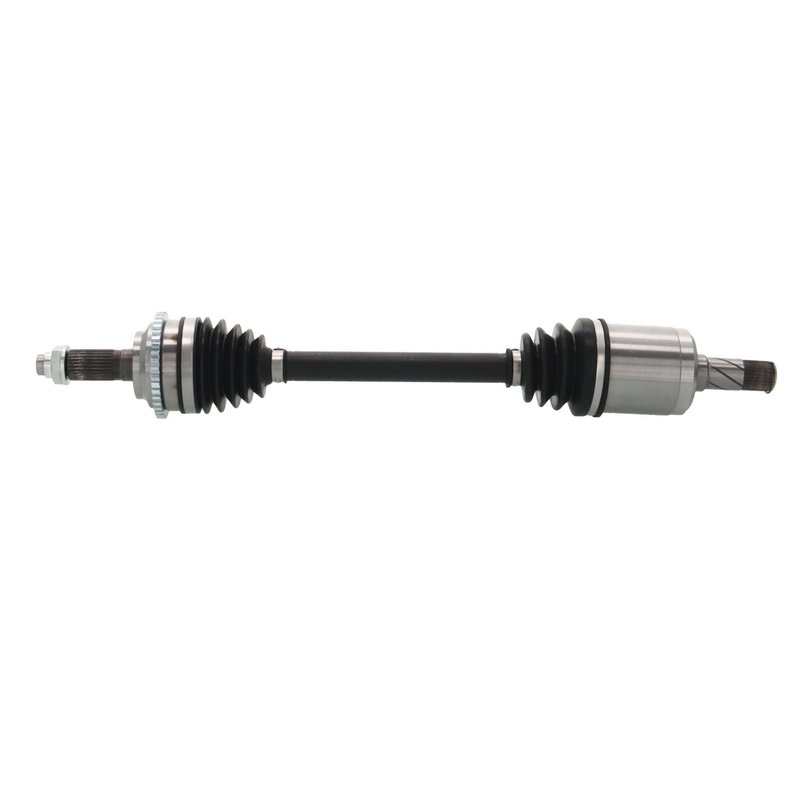

TrakMotive FD-86032 CV Axle Shaft - Front Left

TrakMotive FD-86032 CV Axle Shaft

The TrakMotive AAR CV Axle Shaft FD-86032 is a premium front left driveline replacement for select Ford Fusion and Mercury Milan applications. Built for 2006-2009 models, it matches the required spline counts, ABS tone ring setup, and compressed/extended length specifications for a direct-fit service part.

Key Features

• Front left CV axle shaft for select Ford Fusion and Mercury Milan vehicles
• Premium grade replacement from TrakMotive’s AAR CV Axle Shaft line
• 28 inboard splines and 28 outboard splines
• 44-tooth toothed ABS ring configuration
• Overall compressed length: 25.44 in (645.5-646 mm)
• Overall extended length: 28.88 in (708 mm)
• Male inboard joint with conventional outboard joint design
• Axle nut thread size: M22x1.5; socket size: 32 mm

Detailed Description

TrakMotive FD-86032 is a CV axle shaft engineered for front left installation on 2006-2009 Ford Fusion and 2006-2009 Mercury Milan models. This axle uses a 44-tooth toothed ABS ring, 28-spline inner and outer connections, and the specified shaft length to match the original driveline geometry for the listed vehicles. The AAR CV Axle Shaft product line is positioned as a premium replacement option for standard-duty service needs.

This part cross-references TrakMotive FD-86032 for the same application. TrakMotive manufactures to ISO 9001:2008 and TS 16949:2009 certified quality systems, and the manufacturer notes a limited lifetime warranty.

What This Part Helps Address

• Clicking or popping during turns caused by worn CV joints
• Vibration or shudder from a damaged axle shaft
• ABS warning concerns related to a worn or incorrect tone ring setup
• Driveline noise from excessive axle wear
• Loss of smooth power transfer to the front wheels

Installation Notes and Tips

Verify front left fitment before ordering. Fits 2006-2009 Ford Fusion, front left. Fits 2006-2009 Mercury Milan, front left. Confirm axle nut thread size, spline count, and ABS ring configuration against the original part before installation. The axle nut is not included, so reuse or source the correct M22x1.5 hardware as needed. ABS axles fit non-ABS applications unless otherwise noted by the vehicle application.

Quality Assurance

TrakMotive backs this AAR CV Axle Shaft with a limited lifetime warranty. The part is produced by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent manufacturing control for replacement driveline service.
