TrakMotivePart #: FD-86033

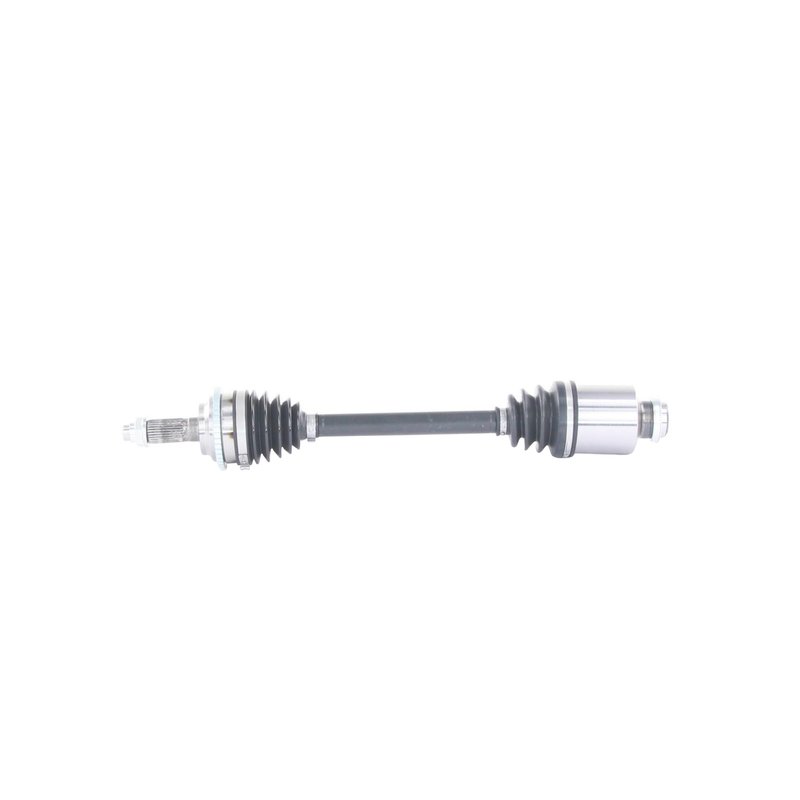

TrakMotive FD-86033 CV Axle Shaft - Front Right
⚙️ 8 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$138.57Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦AAR CV Axle Shaft, Front Right
🚗Fitment: Ford and Mercury, Fusion and Milan
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all CV Axle Shaft options
TrakMotive FD-86033 CV Axle Shaft - Front Right
| Brand | TrakMotive |
| Part Number | FD-86033 |
| Position | AAR CV Axle Shaft, Front Right |
| ABS Ring Tooth Count | 44 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 28-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.69 |
| Overall Compressed Length (mm) | 601 |
| Overall Extended Length (in) | 25.88 |
| Overall Extended Length (mm) | 657.5 |
| Overall Extended Length (mm) | 658 |
This part fits 8 vehicles. Search below:
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Ford | Fusion | FWD | Automatic | 2.3L | L4 | Front Right | Outer Assembly; AAR CV Axle Shaft |
| 2009 | Mercury | Milan | FWD | Automatic | 2.3L | L4 | Front Right | Outer Assembly; AAR CV Axle Shaft |
| 2008 | Ford | Fusion | FWD | Automatic | 2.3L | L4 | Front Right | Outer Assembly; AAR CV Axle Shaft |
| 2008 | Mercury | Milan | FWD | Automatic | 2.3L | L4 | Front Right | Outer Assembly; AAR CV Axle Shaft |
| 2007 | Ford | Fusion | FWD | Automatic | 2.3L | L4 | Front Right | Outer Assembly; AAR CV Axle Shaft |
| 2007 | Mercury | Milan | FWD | Automatic | 2.3L | L4 | Front Right | Outer Assembly; AAR CV Axle Shaft |
| 2006 | Ford | Fusion | Automatic | 2.3L | L4 | Front Right | Outer Assembly; AAR CV Axle Shaft | |
| 2006 | Mercury | Milan | FWD | Automatic | 2.3L | L4 | Front Right | Outer Assembly; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
FD-86033NCV47566
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
