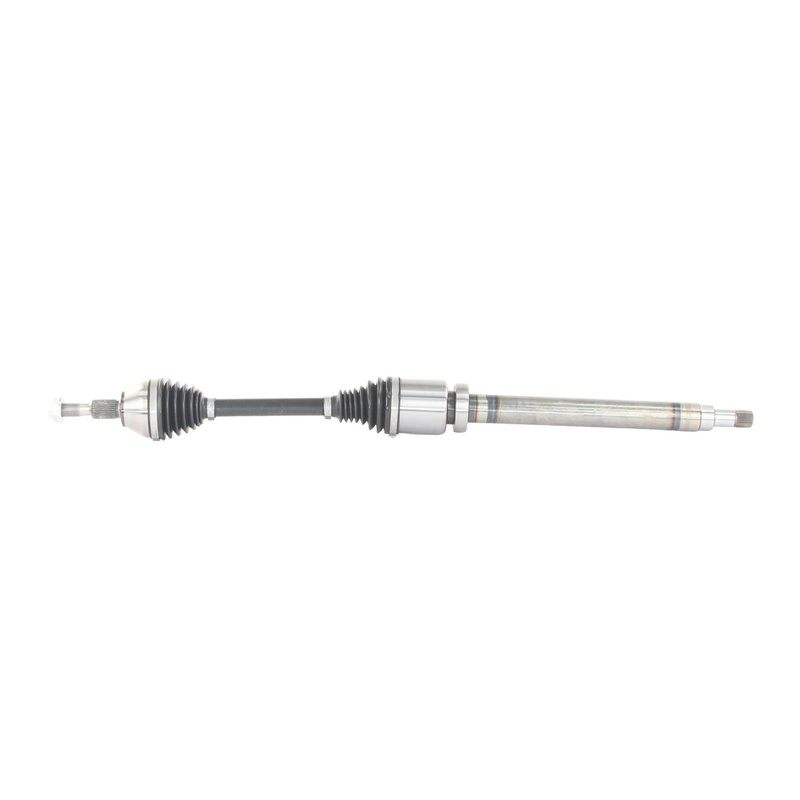

TrakMotive FD-86035 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86035 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Long + male |
| Inboard Joint Type | Long-male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 26 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 39.88 |
| Overall Compressed Length (mm) | 1013 |
| Overall Extended Length (in) | 41.94 |
| Overall Extended Length (mm) | 1064.5 |
| Overall Extended Length (mm) | 1065 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford · 2 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service fit.
Premium grade. Built with a conventional outboard joint and long male inboard joint.
Certified company. Made by an ISO 9001:2008 and TS 16949:2009 certified manufacturer.
Cross-references TrakMotive FD-86035 for the same application. See all 1.
Front Right CV Axle Shaft for Ford Fusion
TrakMotive FD-86035 is a premium AAR CV axle shaft for the front right position on select 2013-2014 Ford Fusion models. It is built for OE-style fitment with a conventional outboard joint and a long male inboard joint, making it a direct replacement for the original driveline component.
Fits 2013-2014 Ford Fusion, front right. This TrakMotive FD-86035 axle shaft is engineered for the OE AAR design used on these applications and is a direct-fit driveline service part for the Ford Fusion front right side.
Key Features
- TrakMotive AAR CV axle shaft, part number FD-86035
- Fits 2013-2014 Ford Fusion, front right
- Premium grade replacement for driveline service
- Long male inboard joint with conventional outboard joint
- 26 inboard splines and 27 outboard splines
- No ABS tone ring included; 0 ABS ring tooth count
- Overall compressed length: 39.88 in (1013 mm)
- Overall extended length: 41.94 in (1064.5 mm)
Product Details
FD-86035 is a front right CV axle shaft for the Ford Fusion that matches the OE AAR design called out in the fitment data. The axle uses a long male inboard joint and a conventional outboard joint, with spline counts and overall length dimensions provided to support accurate replacement selection. TrakMotive identifies this part as a premium driveline component for the 2013-2014 Ford Fusion platform.
This part cross-references TrakMotive FD-86035 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn front right CV axle
- Vibration during acceleration caused by axle wear
- Grease leakage from a damaged CV joint boot or shaft assembly
- Excessive driveline play from spline or joint wear
- Noise from a failing OE AAR axle on Ford Fusion models
Installation Notes and Tips
Verify the vehicle is a 2013-2014 Ford Fusion with the front right OE AAR axle configuration before installation. Confirm axle length, spline count, and axle nut thread size M22x1.5 against the removed part to ensure proper match. The axle nut is not included, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive states that this AAR CV axle shaft is produced by an ISO 9001:2008 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2014 | Ford | Fusion | FWD | Manual | 1.6L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2013 | Ford | Fusion | FWD | Manual | 1.6L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
