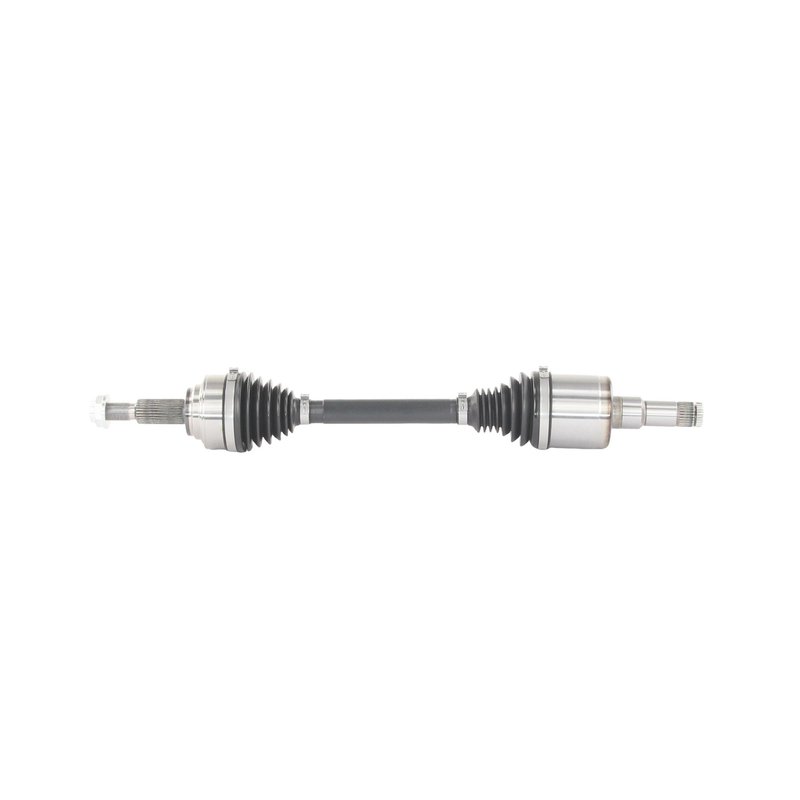

TrakMotive FD-86036 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-86036 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.25 |
| Overall Compressed Length (mm) | 667 |
| Overall Extended Length (in) | 28.19 |
| Overall Extended Length (mm) | 716 |
| Product line | CV Axle Shaft |
| Fits | Ford · 3 vehicles |
OE-style replacement. CV axle shaft for straightforward service and dependable driveline function.
Premium grade. Built to deliver a refined fit and consistent performance.
ABS-ready design. Fits non-ABS applications and omits the tone ring.
Cross-references TrakMotive FD-86036 for the same application. See all 1.
TrakMotive FD-86036 CV Axle Shaft
The TrakMotive FD-86036 CV axle shaft is a premium driveline replacement for the front left side of select Ford Mustang Mach-E models. It is built for 2021-2023 Ford Mustang Mach-E, front left applications and follows the dimensions and spline counts needed for a direct-fit service part.
Key Features
- Fits 2021-2023 Ford Mustang Mach-E, front left
- CV axle shaft for driveline and axle service
- Premium grade construction
- 27 inboard splines and 27 outboard splines
- Male inboard joint with conventional outboard joint type
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 26.25 in (667 mm)
- Overall extended length: 28.19 in (716 mm)
- Axle nut thread size: M22x1.5; socket size: 32 mm
Product Details
TrakMotive FD-86036 is a CV axle shaft for the front left position on the Ford Mustang Mach-E. It is specified with 27 splines on both ends, a male inboard joint, and a conventional outboard joint, along with the listed compressed and extended lengths for proper driveline geometry. This part number, FD-86036, is the direct reference for ordering and service lookup on 2021-2023 Ford Mustang Mach-E front left axle replacement jobs.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and this application is backed by the brand’s ISO 9001:2008 and TS 16949:2009 certified manufacturing standards. The manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted, and this axle is listed without an ABS tone ring.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Axle shaft noise from driveline wear
- Grease leakage or torn axle boot damage
- Excessive play in the front left axle assembly
Installation Notes
Verify front left fitment before installation on 2021-2023 Ford Mustang Mach-E vehicles. Confirm axle nut thread size, socket size, spline count, and overall length against the original part before assembly. This part does not include an axle nut. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Quality Assurance
TrakMotive manufactures this CV axle shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. The FD-86036 includes a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Ford | Mustang Mach-E | GT | AWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | Mustang Mach-E | GT | AWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Ford | Mustang Mach-E | GT | AWD | Front Left | Standard Duty Replacement; CV Axle Shaft |
