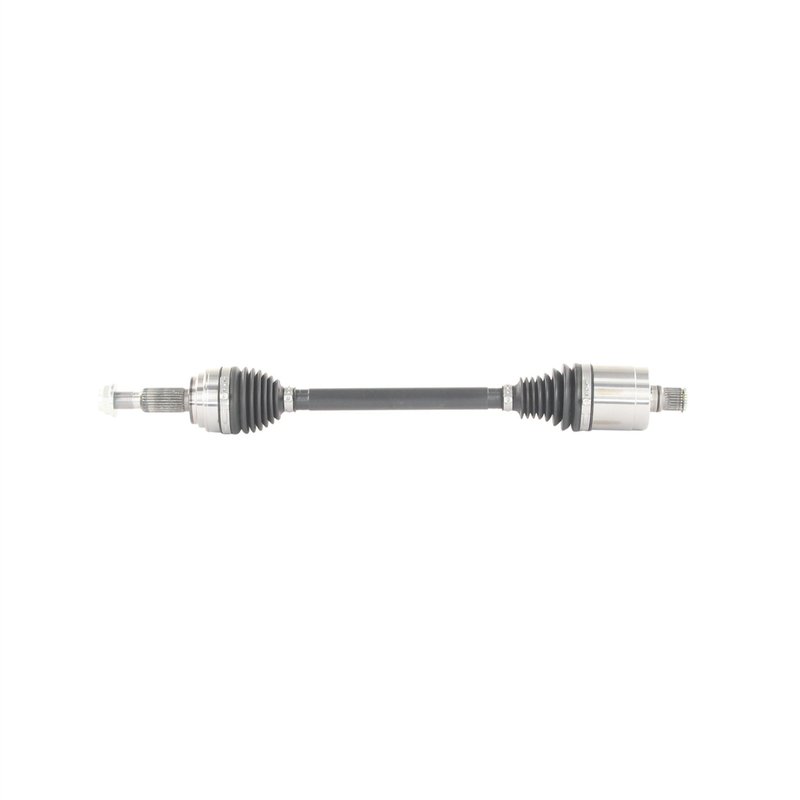

TrakMotive FD-86037 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86037 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 25.69 |
| Overall Compressed Length (mm) | 653 |
| Product line | CV Axle Shaft |
| Fits | Ford · 3 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline replacement.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86037 and NCV11264 for the same application. See all 2.
Front Right CV Axle Shaft for Mustang Mach-E
TrakMotive FD-86037 is a premium CV axle shaft for the front right position on the 2021-2023 Ford Mustang Mach-E. It is built for direct replacement service with the correct spline counts, compressed length, and axle nut specifications for the listed application.
Key Features
- Fits 2021-2023 Ford Mustang Mach-E, front right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male
- Outboard joint type: conventional
- 25 inboard splines and 27 outboard splines
- Overall compressed length: 653 mm (25.69 in)
- Axle nut thread size: M22x1.5
- Axle nut socket size: 32 mm
- No ABS tone ring included; ABS ring tooth count: 0
Product Details
TrakMotive CV Axle Shaft FD-86037 is engineered for the front right side of the Ford Mustang Mach-E from 2021 through 2023. The axle uses a male inboard joint and a conventional outboard joint, with 25 inboard splines and 27 outboard splines to match the listed vehicle application. This part number, FD-86037, is also cross-referenced as NCV11264 for the same application.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and this axle is backed by the brand’s limited lifetime warranty. TrakMotive also states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification.
Common Repair Uses
- Restores front right axle function on a Ford Mustang Mach-E
- Addresses clicking or popping noises during turns
- Helps correct vibration from a worn CV joint or shaft
- Replaces a damaged axle with incorrect spline or length specifications
- Supports repair after boot failure, grease loss, or joint wear
Installation Notes
Verify front right fitment, axle nut thread size M22x1.5, and 32 mm socket size before installation. Confirm the vehicle uses the listed non-ABS axle configuration, since this axle does not include an ABS tone ring. Compare the original shaft length and spline counts to the replacement part before assembly.
Quality Assurance
TrakMotive FD-86037 is covered by a limited lifetime warranty. The brand also identifies its manufacturing system as ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Ford | Mustang Mach-E | Select | AWD | Front Right | Outer Assembly; CV Axle Shaft |
| 2022 | Ford | Mustang Mach-E | Select | AWD | Front Right | Outer Assembly; CV Axle Shaft |
| 2021 | Ford | Mustang Mach-E | Select | AWD | Front Right | Outer Assembly; CV Axle Shaft |
