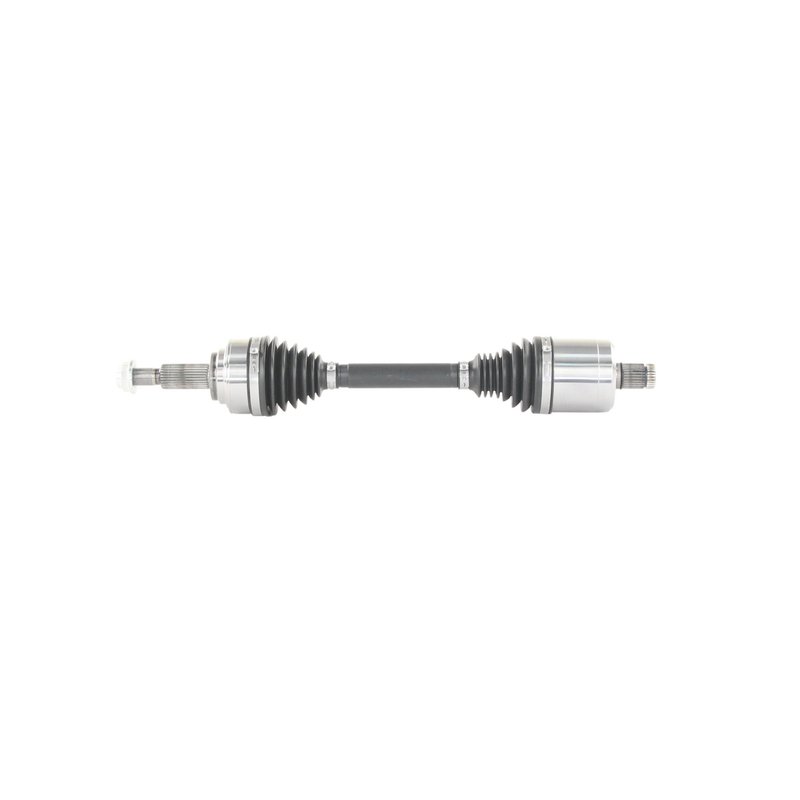

TrakMotive FD-86039 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86039 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.06 |
| Overall Compressed Length (mm) | 586 |
| Product line | CV Axle Shaft |
| Fits | Ford · 3 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
ABS-ready design. Fits non-ABS applications when no tone ring is needed.
Premium grade. Built by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive FD-86039 for the same application. See all 1.
Front Right CV Axle Shaft for Mustang Mach-E
TrakMotive FD-86039 is a premium CV axle shaft for the front right position on the 2021-2023 Ford Mustang Mach-E. It is built for direct replacement service on the outer assembly and is specified with 27 inboard splines and 27 outboard splines for the listed application.
Key Features
- Fits 2021-2023 Ford Mustang Mach-E, front right
- CV axle shaft for the driveline and axle system
- Inboard joint type: male
- Outboard joint type: conventional
- 27 inboard splines and 27 outboard splines
- Overall compressed length: 586 mm (23.06 in)
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm
- No ABS tone ring included
- Premium grade construction
Detailed Description
TrakMotive FD-86039 is a CV axle shaft for the front right side of the Ford Mustang Mach-E, covering 2021, 2022, and 2023 model years. This axle is configured as an outer assembly for the listed application and uses a male inboard joint with a conventional outboard joint. The axle dimensions, spline counts, and axle nut specifications are provided to support accurate replacement selection for the Mustang Mach-E driveline.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and this part number, FD-86039, follows that application-specific approach. It is a direct-fit option for the front right position on the Mustang Mach-E when the listed spline count and compressed length match the vehicle configuration.
What This Part Helps Address
- Clicking or popping noises from a worn front right CV axle
- Vibration during acceleration from driveline wear
- Grease leakage from a damaged axle assembly
- Excessive play or binding in the front axle shaft
- Replacement needs after CV joint or shaft damage
Installation Notes and Tips
Verify the front right position, spline counts, axle nut thread size, and compressed length before installation. This axle does not include an axle nut, and no ABS tone ring is included. ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive FD-86039 is backed by a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2023 | Ford | Mustang Mach-E | GT | AWD | Front Right | Outer Assembly; CV Axle Shaft |
| 2022 | Ford | Mustang Mach-E | GT | AWD | Front Right | Outer Assembly; CV Axle Shaft |
| 2021 | Ford | Mustang Mach-E | GT | AWD | Front Right | Outer Assembly; CV Axle Shaft |
