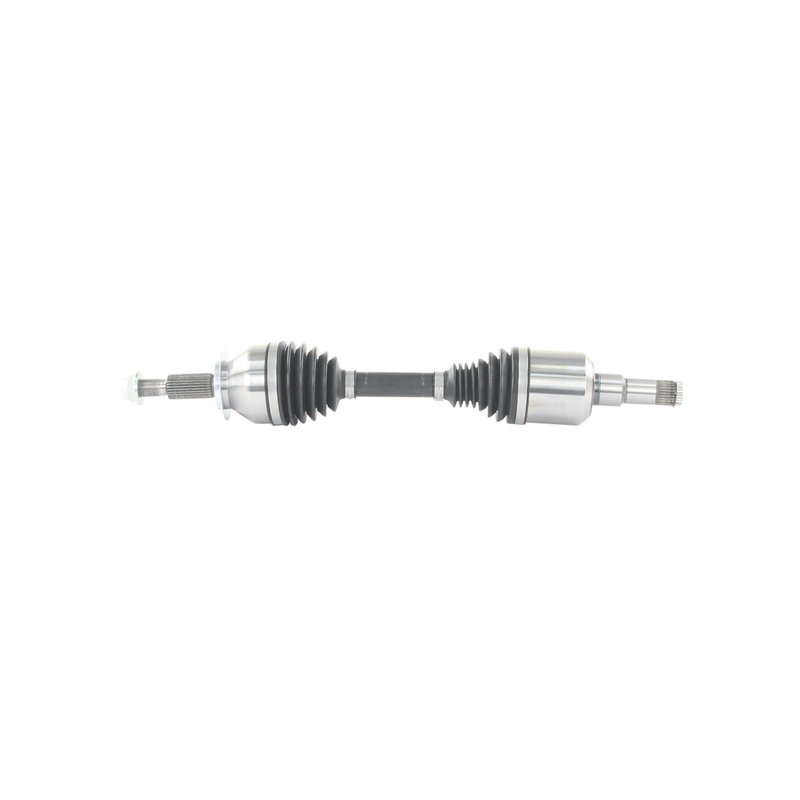

TrakMotive FD-86040 CV Axle Shaft - Rear Left
| Brand | TrakMotive FD-86040 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 23.81 |
| Overall Compressed Length (mm) | 604.5 |
| Overall Compressed Length (mm) | 605 |
| Product line | CV Axle Shaft |
| Fits | Ford · 3 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline replacement.
ABS-ready design. Fits non-ABS applications when no tone ring is needed.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86040 and NCV11265 for the same application. See all 2.
Rear Left CV Axle Shaft for Mustang Mach-E
TrakMotive FD-86040 is a premium CV axle shaft for the rear left position on the 2021-2023 Ford Mustang Mach-E. It is built for standard duty replacement service and is engineered to match the vehicle’s driveline requirements with the correct spline counts and compressed length.
For shoppers searching for a 2021-2023 Ford Mustang Mach-E rear left CV axle shaft, FD-86040 provides a direct-fit replacement option with OE-style dimensions and a conventional outboard joint design.
Key Features
- Fits 2021-2023 Ford Mustang Mach-E, rear left
- Premium-grade CV axle shaft for driveline repair
- 27 inboard splines and 27 outboard splines
- Overall compressed length: 23.81 in. (604.5-605 mm)
- Male inboard joint and conventional outboard joint
- No ABS tone ring included; ABS ring tooth count: 0
- Axle nut thread size: M22x1.5 with 32 mm hex size
- TrakMotive FD-86040 part number for catalog matching
Product Details
TrakMotive CV Axle Shaft FD-86040 is part of the brand’s CV Axle Shaft line and is intended for rear left replacement on the Ford Mustang Mach-E. The shaft uses a male inboard joint, a conventional outboard joint, and the specified spline and length measurements to support proper fitment in the rear driveline assembly. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
TrakMotive manufactures to ISO 9001:2008 and TS 16949:2009 certified standards, and the axle is backed by a limited lifetime warranty. The part number FD-86040 is also listed with interchange reference NCV11265.
Common Repair Uses
- Replacing a worn or noisy rear left CV axle on a Ford Mustang Mach-E
- Addressing vibration during acceleration or deceleration
- Correcting clicking or binding from a damaged axle assembly
- Restoring driveline operation after boot or joint wear
- Repairing axle-related noise in 2021-2023 Mustang Mach-E rear drive applications
Installation Notes and Tips
Verify axle nut thread size, hex size, spline count, and compressed length before installation. This axle does not include an axle nut, and it does not include an ABS tone ring. Confirm rear left application and compare the original shaft to FD-86040 before assembly.
Quality Assurance
TrakMotive FD-86040 is produced by an ISO 9001:2008 and TS 16949:2009 certified company and includes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Ford | Mustang Mach-E | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | Mustang Mach-E | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Ford | Mustang Mach-E | Rear Left | Standard Duty Replacement; CV Axle Shaft |
