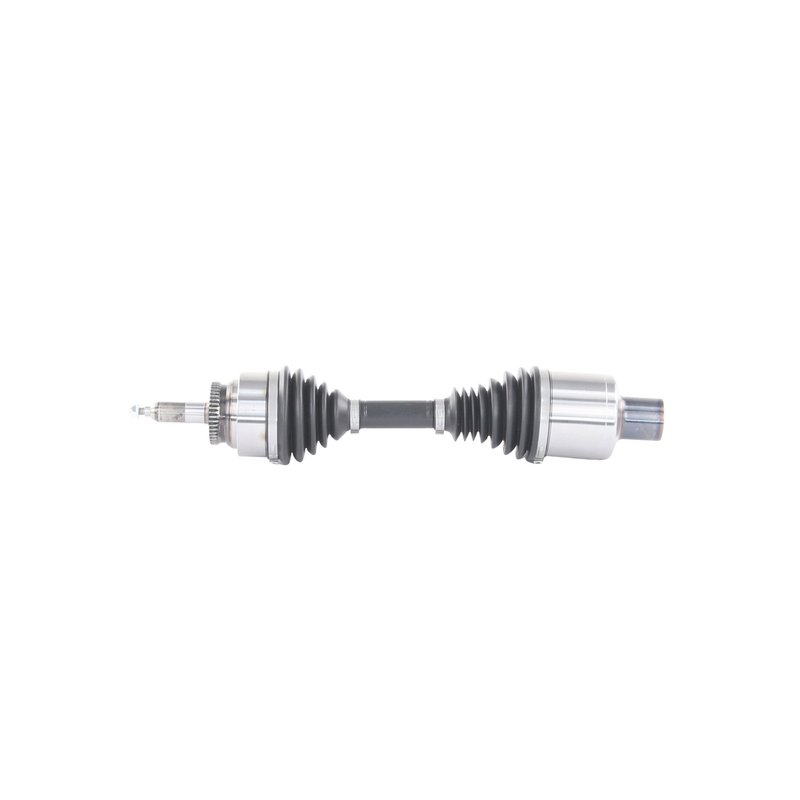

TrakMotive FD-86042 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86042 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 10.5 |
| Axle Nut Height (mm) | 11 |
| Axle Nut Hex Size (mm) | 14 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 14 |
| Axle Nut Thread Size | M10*1.5 |
| Axle Nut Thread Size | M10x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31-2t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 45 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 22.56 |
| Overall Compressed Length (mm) | 573 |
| Overall Extended Length (in) | 24.75 |
| Overall Extended Length (mm) | 628 |
| Product line | CV Axle Shaft |
| Fits | Ford · 4 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline replacement.
ABS-ready fit. Works in non-ABS applications when no ABS note is listed.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86042 for the same application. See all 1.
Ford F-150 Front Right CV Axle Shaft
TrakMotive FD-86042 is a premium CV axle shaft for select Ford F-150 front right applications. It is built for 2021-2024 Ford F-150 models, including 2021-2022 trucks with limited slip differential and 2023-2024 trucks with the noted front right fitment.
Key Features
- Premium-grade CV axle shaft for driveline repair
- Front right position for select Ford F-150 applications
- Female inboard joint and conventional outboard joint design
- 31-2T inboard splines and 45 outboard splines
- Overall compressed length: 22.56 in. (573 mm)
- Overall extended length: 24.75 in. (628 mm)
- ABS tone ring not included; ABS ring tooth count: 0
- Axle nut thread size: M10x1.5 with 14 mm hex/socket size
Product Details
TrakMotive FD-86042 is a CV axle shaft engineered for front right service on the Ford F-150. The shaft dimensions, spline counts, and joint configuration support direct replacement needs on the listed 2021-2024 Ford F-150 applications. TrakMotive identifies this CV axle shaft as part of its CV Axle Shaft line, and the company states its products are backed by a limited lifetime warranty and manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems. This part cross-references TrakMotive FD-86042 for the same application.
What It Helps Repair
- Clicking or popping during turns from a worn front axle assembly
- Vibration or shudder under acceleration from axle wear
- Grease leakage from a damaged CV joint boot or shaft assembly
- Noise from a failing front right driveline component
- Loss of smooth power transfer to the front wheel
Installation Notes
Before installation, inspect the intermediate shaft for damage and replace it if needed, especially on 2023-2024 Ford F-150 front right applications. Confirm axle nut thread size, spline count, and position match the vehicle before assembly. ABS axles fit non-ABS applications unless otherwise noted, and this axle does not include an ABS tone ring.
Quality Assurance
TrakMotive states that this CV axle shaft is covered by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certified manufacturing standards for added production control.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Ford | F-150 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; CV Axle Shaft |
| 2023 | Ford | F-150 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; CV Axle Shaft |
| 2022 | Ford | F-150 | Front Right | With Limited Slip Differential; CV Axle Shaft |
| 2021 | Ford | F-150 | Front Right | With Limited Slip Differential; CV Axle Shaft |
