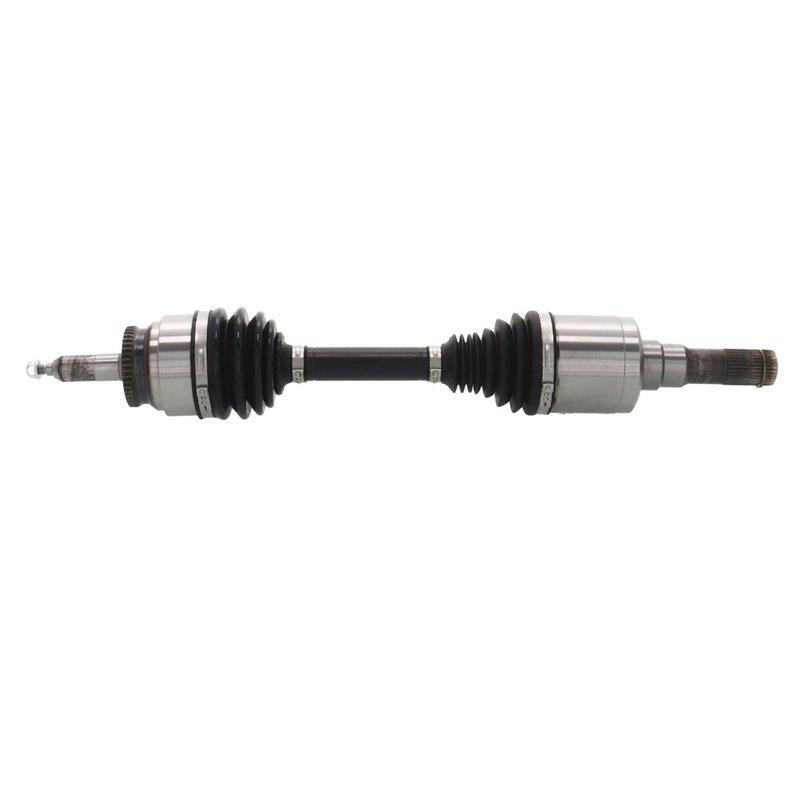

TrakMotive FD-86043 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-86043 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 10.5 |
| Axle Nut Height (mm) | 11 |
| Axle Nut Hex Size (mm) | 14 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 14 |
| Axle Nut Thread Size | M10*1.5 |
| Axle Nut Thread Size | M10x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 45 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 25.56 |
| Overall Compressed Length (mm) | 649 |
| Overall Extended Length (in) | 27.75 |
| Overall Extended Length (mm) | 704.5 |
| Overall Extended Length (mm) | 705 |
| Product line | CV Axle Shaft |
| Fits | Ford · 4 vehicles |
CV axle shaft. Direct replacement for driveline and axle service.
Premium grade. Built as a conventional CV axle shaft with a male inboard joint.
Certified company. Made by an ISO 9001:2008 and TS 16949:2009 certified manufacturer.
Cross-references TrakMotive FD-86043 and NCV11281 for the same application. See all 2.
Front Left CV Axle Shaft for Ford F-150
TrakMotive FD-86043 is a premium CV axle shaft for the front left position on 2021-2024 Ford F-150 models with an electric shift transfer case. It is built for direct replacement service and is engineered to match the required spline counts and compressed/extended length for the application.
TrakMotive CV Axle Shaft products are part of the brand’s driveline and axle line, focused on replacement fitment and application-specific construction. FD-86043 is a non-ABS axle configuration with a conventional outboard joint and male inboard joint design.
Key Features
- Fits 2021-2024 Ford F-150, front left
- Part number FD-86043
- Premium-grade CV axle shaft
- Inboard spline count: 31
- Outboard spline count: 45
- Overall compressed length: 649 mm (25.56 in)
- Overall extended length: 704.5-705 mm (27.75 in)
- Non-ABS design with no tone ring included
- Axle nut thread size: M10x1.5
- Axle nut hex/socket size: 14 mm
Detailed Description
FD-86043 is a direct-fit CV axle shaft for the front left side of the Ford F-150 in 2021, 2022, 2023, and 2024 applications. It is specified for vehicles with an electric shift transfer case and uses a conventional outboard joint with a male inboard joint. The axle is built to the listed spline counts and length dimensions to support proper fitment in the driveline assembly.
This part cross-references NCV11281 for the same application. Use FD-86043 when replacing a worn or damaged front axle on a Ford F-150 and when the vehicle configuration matches the listed fitment details.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from a damaged axle boot assembly
- Driveline noise caused by excessive axle play
- Front left axle failure on electric shift transfer case trucks
Installation Notes and Tips
Verify the vehicle’s front left application, transfer case type, spline counts, and axle nut thread size before installation. Confirm that the vehicle is a non-ABS application, since this axle is listed with no ABS tone ring. Always inspect related seals, hub components, and mounting points during replacement to help ensure a proper repair.
Quality Assurance
TrakMotive lists this CV axle shaft as a premium replacement part and states that the company is ISO 9001:2008 and TS 16949:2009 certified. The manufacturer also notes a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Ford | F-150 | Front Left | Electric Shift Transfer Case; CV Axle Shaft |
| 2023 | Ford | F-150 | Front Left | Electric Shift Transfer Case; CV Axle Shaft |
| 2022 | Ford | F-150 | Front Left | Electric Shift Transfer Case; CV Axle Shaft |
| 2021 | Ford | F-150 | Front Left | Electric Shift Transfer Case; CV Axle Shaft |
