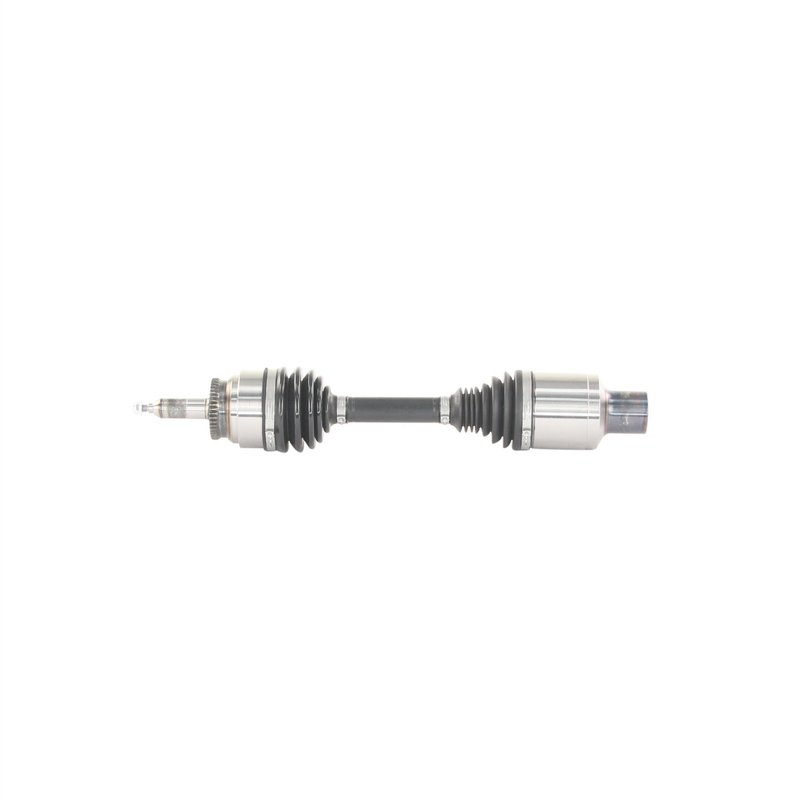

TrakMotive FD-86044 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86044 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 10.5 |
| Axle Nut Height (mm) | 11 |
| Axle Nut Hex Size (mm) | 14 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 14 |
| Axle Nut Thread Size | M10*1.5 |
| Axle Nut Thread Size | M10x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Female |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 45 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 22.63 |
| Overall Compressed Length (mm) | 574 |
| Overall Extended Length (in) | 24.81 |
| Overall Extended Length (mm) | 629.5 |
| Overall Extended Length (mm) | 630 |
| Product line | CV Axle Shaft |
| Fits | Ford · 2 vehicles |
CV axle shaft. Premium replacement for driveline and CV component applications.
Conventional joint design. Built with a female inboard joint for dependable power transfer.
ABS tone ring omitted. Fits non-ABS applications unless otherwise noted.
Cross-references TrakMotive FD-86044 and NCV11291 for the same application. See all 2.
Front Right CV Axle Shaft for Ford F-150
TrakMotive FD-86044 is a premium CV axle shaft for the front right position on the 2021-2022 Ford F-150 without limited slip differential. It is built for driveline service where smooth power transfer, proper spline engagement, and consistent front axle operation matter.
The TrakMotive CV Axle Shaft line focuses on direct-fit replacement coverage for common driveline repairs. FD-86044 follows that approach with application-specific dimensions and spline counts for the Ford F-150 front right axle location.
- Fits 2021-2022 Ford F-150, front right
- Premium-grade CV axle shaft for driveline repair
- 31 inboard splines and 45 outboard splines
- Female inboard joint with conventional outboard joint type
- Overall compressed length: 22.63 in (574 mm)
- Overall extended length: 24.81 in (629.5-630 mm)
- ABS tone ring not included; ABS ring tooth count: 0
- Axle nut thread size: M10x1.5; 14 mm hex/socket size
FD-86044 is a direct replacement CV axle shaft for the front right side of the Ford F-150. It is specified for 2021-2022 trucks without limited slip differential and is engineered around the listed spline counts, joint style, and shaft length to support proper fitment in the driveline assembly. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
- Front-end vibration or clicking during turns
- Worn or damaged axle splines
- Noise from a failing CV joint
- Axle shaft replacement after boot or joint wear
- Restoring driveline function on a Ford F-150 front right application
Installation Notes and Tips
Verify the vehicle is a 2021-2022 Ford F-150, front right, without limited slip differential before ordering. Confirm axle nut thread size, hex size, and overall shaft length against the original part. The axle nut is not included, and ABS tone ring hardware is not part of this axle assembly.
Quality Assurance
TrakMotive identifies this CV axle shaft as a premium part and backs it with a limited lifetime warranty. The manufacturer states its products are made by an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Ford | F-150 | Front Right | Without Limited Slip Differential; CV Axle Shaft |
| 2021 | Ford | F-150 | Front Right | Without Limited Slip Differential; CV Axle Shaft |
