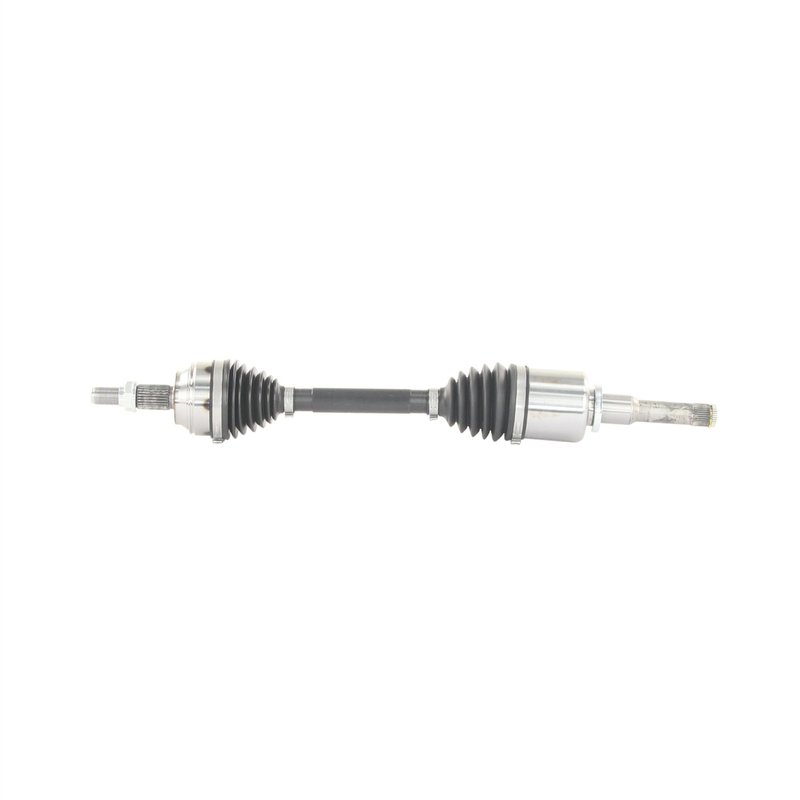

TrakMotive FD-86046 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-86046 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | No |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Type | Male |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Overall Compressed Length (in) | 26.88 |
| Overall Compressed Length (mm) | 683 |
| Overall Extended Length (in) | 28.94 |
| Overall Extended Length (mm) | 735.5 |
| Overall Extended Length (mm) | 736 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford · 4 vehicles |
Premium grade. Built as a CV axle shaft for dependable driveline performance.
ABS-ready design. Fits non-ABS applications when no tone ring is needed.
Certified manufacturing. Produced by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive FD-86046 for the same application. See all 1.
Front Left CV Axle Shaft for Transit Connect
TrakMotive FD-86046 is a premium CV axle shaft for the front left position on 2019-2022 Ford Transit Connect models. It is built for standard duty replacement applications and is specified as a non-ABS axle, with ABS axles fitting non-ABS applications unless otherwise noted.
Key Features
- Fits 2019-2022 Ford Transit Connect, front left
- TrakMotive AAR CV Axle Shaft line
- Premium grade replacement axle shaft
- Inboard joint type: male
- Outboard joint type: conventional
- 35 inboard splines and 27 outboard splines
- Overall compressed length: 26.88 in (683 mm)
- Overall extended length: 28.94 in (735.5-736 mm)
- Axle nut thread size: M22x1.5
- Axle nut socket size: 32 mm
Product Details
FD-86046 is a direct-fit driveline replacement for the Ford Transit Connect front left side. The TrakMotive AAR CV Axle Shaft line is positioned for standard duty service, and this axle is engineered with the listed spline counts, joint styles, and dimensions to match the application. TrakMotive identifies the part as a non-ABS axle configuration, and the axle nut is not included.
This part cross-references TrakMotive FD-86046 for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear
- Grease leakage from a damaged CV boot and joint assembly
- Excessive play or noise in the front left driveline
- Loss of smooth power transfer to the wheel
Installation Notes and Tips
Verify front left fitment against the vehicle’s brake and ABS configuration before installation. Confirm axle nut thread size M22x1.5 and 32 mm socket size during service, and compare the compressed and extended lengths to the removed axle before final assembly. Inspect related seals, hubs, and suspension components for wear while the axle is out.
Quality Assurance
TrakMotive lists this axle under its AAR CV Axle Shaft line and notes ISO 9001:2008 and TS 16949:2009 certified company standards. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Ford | Transit Connect | 2.5L | L4 | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
| 2021 | Ford | Transit Connect | 2.5L | L4 | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
| 2020 | Ford | Transit Connect | 2.5L | L4 | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
| 2019 | Ford | Transit Connect | 2.5L | L4 | Front Left | Standard Duty Replacement; AAR CV Axle Shaft |
