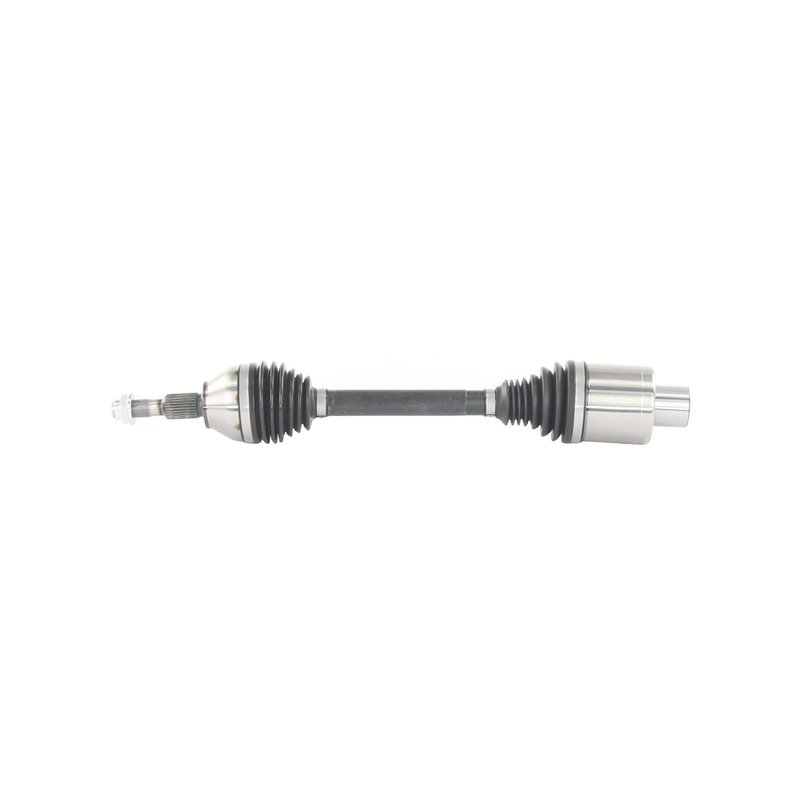

TrakMotive FD-86047 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86047 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 13/16 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 27-2t |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24 3/16 |
| Overall Compressed Length (mm) | 615 |
| Overall Extended Length (in) | 26 3/8 |
| Overall Extended Length (in) | 26.375 |
| Overall Extended Length (mm) | 669.5 |
| Overall Extended Length (mm) | 670 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford and Lincoln · 9 vehicles |
AAR CV axle shaft. Premium driveline replacement for dependable power transfer.
ABS-ready design. Fits non-ABS applications unless otherwise noted.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Cross-references TrakMotive FD-86047 and NCV11279 for the same application. See all 2.
Front Right CV Axle Shaft for Edge and Nautilus
TrakMotive FD-86047 is a premium CV axle shaft for the front right position on select Ford Edge and Lincoln Nautilus models. It is built with spline-style shaft connections, thermoplastic boots, and an included axle nut for a direct replacement on the listed applications.
Key Features
- Fits 2019-2024 Ford Edge, front right
- Fits 2019-2021 Lincoln Nautilus, front right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: female with 27-2T splines
- Outboard joint type: conventional with 27 splines
- Thermoplastic inboard and outboard joint boots
- Axle nut included; M22 x 1.5 thread, stake locking type
- No ABS tone ring included
- Overall compressed length: 24 3/16 in. (615 mm)
- Overall extended length: 26 3/8 in. (670 mm)
Detailed Description
TrakMotive FD-86047 AAR CV Axle Shaft is a direct-fit driveline replacement for the front right side of the Ford Edge and Lincoln Nautilus applications listed above. The shaft uses a female inboard connection, a conventional outboard joint, and thermoplastic boot materials to support consistent operation in everyday driving conditions. This part number, FD-86047, also cross-references NCV11279 for the same application.
The AAR CV Axle Shaft line focuses on application-specific fitment and OE-style replacement geometry. For Ford Edge and Lincoln Nautilus service work, FD-86047 provides the correct spline counts, axle nut specification, and overall length needed for the listed front right installations.
Common Repair Symptoms
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration from a damaged axle shaft
- Torn CV boots with grease leakage
- Excessive driveline play or noise at the front right axle
- Axle nut or spline wear during front-end service
Installation Notes and Tips
Verify front right fitment by year, make, and model before installation. Inspect the intermediate shaft for damage when replacing the CV axle, and replace it if needed. Confirm axle nut thread size, socket size, and locking style during service, and follow the vehicle manufacturer’s torque and staking procedures.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, reflecting controlled manufacturing and quality management practices for driveline components. FD-86047 is built as a premium replacement for the specified Ford Edge and Lincoln Nautilus front right applications.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Ford | Edge | — | 2.7L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2023 | Ford | Edge | — | 2.7L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2022 | Ford | Edge | — | 2.7L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Ford | Edge | — | 2.7L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Lincoln | Nautilus | AWD | 2.7L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Ford | Edge | AWD | 2.7L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Lincoln | Nautilus | AWD | 2.7L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Ford | Edge | AWD | 2.7L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Lincoln | Nautilus | AWD | 2.7L | V6 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
