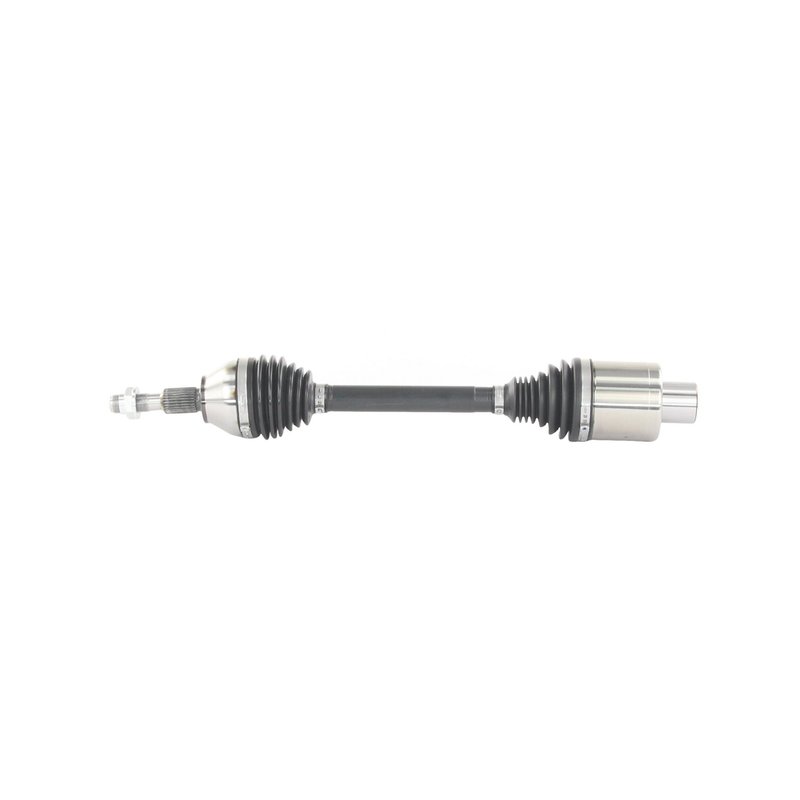

TrakMotive FD-86048 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86048 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 13/16 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Stake |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 27-2t |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24 5/8 |
| Overall Compressed Length (mm) | 625.5 |
| Overall Extended Length (in) | 26 3/4 |
| Overall Extended Length (in) | 26.75 |
| Overall Extended Length (mm) | 680 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford and Lincoln · 4 vehicles |
Premium grade. Built as a CV axle shaft with thermoplastic boots for durable joint protection.
Spline connections. Inboard and outboard shaft ends use spline engagement for secure power transfer.
Axle nut included. Comes with a hex, stake-locking nut for easier installation.
Cross-references TrakMotive FD-86048 and NCV11247 for the same application. See all 2.
Front Right CV Axle Shaft for Edge and Nautilus
TrakMotive FD-86048 is a premium CV axle shaft for the front right position on select 2019-2020 Ford Edge and 2019-2020 Lincoln Nautilus models. Built for driveline service on vehicles with spline-style shaft connections, it includes a stake-lock axle nut and is backed by TrakMotive’s limited lifetime warranty.
Key Features
- Fits 2019-2020 Ford Edge, front right
- Fits 2019-2020 Lincoln Nautilus, front right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: female with spline connection
- Outboard joint type: conventional with spline connection
- Thermoplastic boots on both inboard and outboard joints
- Axle nut included; M22 x 1.5 thread, 32 mm socket size
- No ABS tone ring included
- Overall compressed length: 24 5/8 in. (625.5 mm)
- Overall extended length: 26.75 in. (680 mm)
Product Details
TrakMotive FD-86048 AAR CV Axle Shaft is engineered for the front right side of the Ford Edge and Lincoln Nautilus applications listed above. The axle uses 27 outboard splines and a 27-2T inboard spline configuration, with thermoplastic boot material at both joints for consistent protection in driveline service. This part number, FD-86048, is also referenced for the same application under cross-reference number NCV11247.
The AAR CV Axle Shaft line is positioned as a premium replacement option within TrakMotive’s driveline and axle catalog. For 2019-2020 Ford Edge and 2019-2020 Lincoln Nautilus service, FD-86048 provides the specified front right fitment and includes the axle nut required for the listed configuration.
Common Repair Uses
- Restoring smooth power transfer after CV joint wear
- Replacing a damaged or noisy front right axle assembly
- Addressing vibration, clicking, or binding during turns
- Repairing torn boots that have led to grease loss or contamination
- Correcting driveline issues on Ford Edge and Lincoln Nautilus front right applications
Installation Notes
Before installation, verify spline count, axle length, and axle nut specifications against the vehicle. When replacing a CV axle, inspect the intermediate shaft for damage and replace it if necessary, as noted for these applications. This axle does not include an ABS tone ring, and ABS-equipped vehicles should be checked against the application details before ordering.
Quality Assurance
TrakMotive manufactures this axle as an ISO 9001:2008 and TS 16949:2009 certified company. FD-86048 is covered by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Ford | Edge | AWD | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Lincoln | Nautilus | AWD | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Ford | Edge | AWD | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2019 | Lincoln | Nautilus | AWD | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
