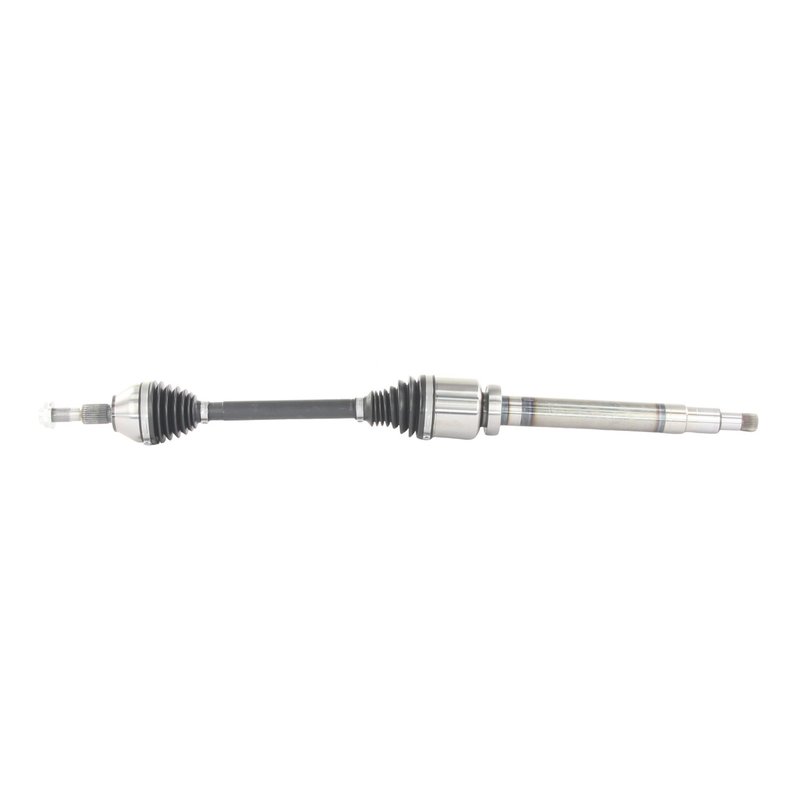

TrakMotive FD-86049 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86049 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long+male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39 1/2 |
| Overall Compressed Length (mm) | 1003.5 |
| Overall Extended Length (in) | 41 7/16 |
| Overall Extended Length (in) | 41.44 |
| Overall Extended Length (mm) | 1052 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford and Lincoln · 4 vehicles |
OE-style replacement. Built as a premium CV axle shaft for straightforward service.
Thermoplastic boots. Help protect the joints with durable, flexible coverage.
Spline connection design. Provides a secure, precise fit at both ends.
Cross-references TrakMotive FD-86049 and NCV11246 for the same application. See all 2.
Front Right CV Axle Shaft for Ford Edge and Lincoln Nautilus
TrakMotive FD-86049 is a premium AAR CV axle shaft built for front right applications on select 2019-2020 Ford Edge and 2019-2020 Lincoln Nautilus models. It is engineered with spline-style shaft connections, thermoplastic boots, and the correct axle nut included for a direct replacement service.
Key Features
- Fits 2019-2020 Ford Edge, front right
- Fits 2019-2020 Lincoln Nautilus, front right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: long+Male with spline connection
- Outboard joint type: conventional with spline connection
- 35 inboard splines and 27 outboard splines
- Thermoplastic inboard and outboard joint boots
- Axle nut included with self-lock design, M22 x 1.5 thread
- No ABS tone ring included
- Overall compressed length: 39 1/2 in; extended length: 41.44 in
Product Details
TrakMotive FD-86049 is part of the AAR CV Axle Shaft line, a product line focused on application-specific driveline replacement parts. This axle is built to match OE AAR design requirements for the front right position on the Ford Edge and Lincoln Nautilus listed above. The shaft uses a 35-spline inboard connection and a 27-spline outboard connection, along with thermoplastic boot material for the inboard and outboard joints. The included axle nut features a hex head, self-locking design, and M22 x 1.5 thread size for proper service replacement.
This part cross-references Monroe Shocks & Struts (e.g., NCV11246) for the same application. TrakMotive FD-86049 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company, and it is backed by a limited lifetime warranty.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn front right CV axle
- Vibration or shudder under acceleration caused by axle wear
- Torn CV boots that expose the joint to contamination
- Excessive driveline play from damaged splines or joints
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify front right fitment by matching the vehicle year, make, model, and spline count before installation. Inspect the hub, seals, and surrounding driveline components for wear, and replace any damaged hardware or related parts as needed during service. Confirm axle nut thread size and socket fitment before tightening to specification.
Quality Assurance
TrakMotive FD-86049 is produced by an ISO 9001:2008 and TS 16949:2009 certified company. It includes a limited lifetime warranty for added confidence in service.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Ford | Edge | FWD | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Lincoln | Nautilus | FWD | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Ford | Edge | FWD | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lincoln | Nautilus | FWD | 2.0L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
