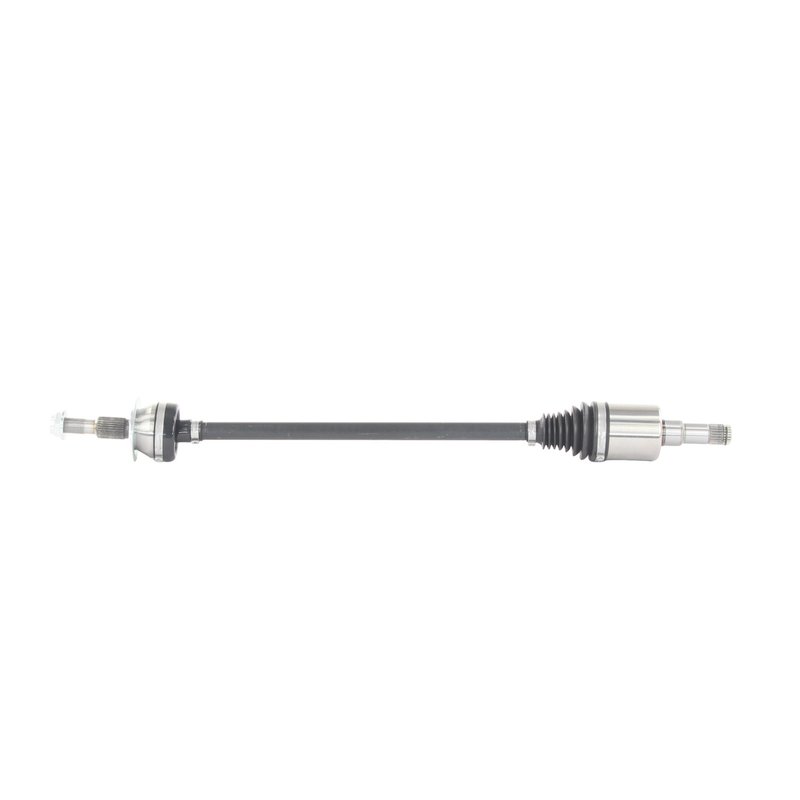

TrakMotive FD-86052 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-86052 |
|---|---|
| Position | Rear Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 33 3/4 |
| Overall Compressed Length (mm) | 857 |
| Overall Extended Length (in) | 35 7/8 |
| Overall Extended Length (in) | 35.875 |
| Overall Extended Length (mm) | 912 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford and Lincoln · 4 vehicles |
Premium grade. Built with thermoplastic boots for durable CV joint protection.
Spline connection. 25 inboard and 27 outboard splines for secure engagement.
Self-locking nut included. Comes with a hex axle nut for easier installation.
Cross-references TrakMotive FD-86052 and NCV11213 for the same application. See all 2.
Rear Right CV Axle Shaft for Ford Edge and Lincoln Nautilus
TrakMotive FD-86052 is a premium CV axle shaft for rear right applications on the 2019-2020 Ford Edge and 2019-2020 Lincoln Nautilus. It is built as an OE AAR design replacement with the spline counts, joint styles, and compressed/extended lengths needed for the listed applications.
Key Features
- Fits 2019-2020 Ford Edge, rear right
- Fits 2019-2020 Lincoln Nautilus, rear right
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male with 25 splines
- Outboard joint type: conventional with 27 splines
- Thermoplastic boots on both inboard and outboard joints
- Overall compressed length: 33 3/4 in. (857 mm)
- Overall extended length: 35 7/8 in. (912 mm)
- Axle nut included with M22 x 1.5 thread size and self-lock design
- No ABS tone ring included
Product Details
TrakMotive FD-86052 is a rear right CV axle shaft engineered for the Ford Edge and Lincoln Nautilus applications listed above. The axle uses a spline-style shaft connection, a male inboard joint, and a conventional outboard joint to match the OE AAR design. It also includes the axle nut specified for the application, with a 32 mm socket size and hex head design.
The TrakMotive AAR CV Axle Shaft line focuses on application-specific driveline replacement parts built to OE-style dimensions and configurations. This part number, FD-86052, follows that approach with the correct compressed and extended lengths, spline counts, and joint construction for the rear right position on the 2019-2020 Ford Edge and 2019-2020 Lincoln Nautilus.
This part cross-references Monroe Shocks & Struts (e.g., NCV11213) for the same application.
Common Repair Symptoms
- Clicking or popping from the rear axle area during turns or load changes
- Vibration or shudder from the driveline under acceleration
- Torn CV boots with grease leakage at the joint
- Excessive play or noise from a worn rear right axle shaft
- Loss of smooth power transfer to the rear wheel
Installation Notes
Verify rear right position, spline count, and axle length before installation. Confirm whether the vehicle is equipped for the listed OE AAR design application, and inspect the hub, seals, and surrounding driveline components during replacement. Use the included axle nut and torque all fasteners to factory specifications.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for this CV axle shaft.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Ford | Edge | — | Rear Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Lincoln | Nautilus | AWD | Rear Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Ford | Edge | — | Rear Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Lincoln | Nautilus | AWD | Rear Right | OE AAR design; AAR CV Axle Shaft |
