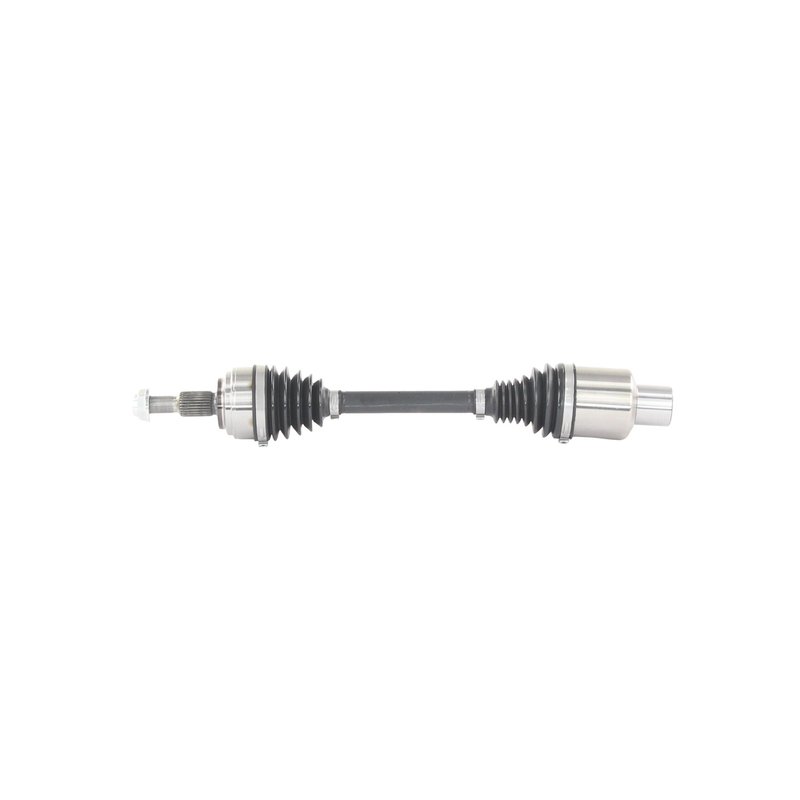

TrakMotive FD-86053 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86053 |
|---|---|
| Position | Front Right |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 27-2t |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22 5/8 |
| Overall Compressed Length (mm) | 575 |
| Overall Extended Length (in) | 24 11/16 |
| Overall Extended Length (in) | 24.69 |
| Overall Extended Length (mm) | 627 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford · 8 vehicles |
Premium grade. Built with thermoplastic boots for durable CV joint protection.
Self-lock axle nut. Included for a secure, ready-to-install axle assembly.
Spline connection. Provides a precise fit between the shaft and joints.
Cross-references TrakMotive FD-86053 and NCV11253 for the same application. See all 2.
Front Right CV Axle Shaft for Ford Escape and Bronco Sport
TrakMotive FD-86053 is a premium AAR CV axle shaft built for front right applications on select Ford models. It is engineered for 2020-2024 Ford Escape and 2021-2023 Ford Bronco Sport part-time 4x4 fitments, with OE-style spline connections and thermoplastic boots for service-ready driveline replacement.
Key Features
- Front right CV axle shaft for select Ford Escape and Ford Bronco Sport applications
- Part number FD-86053
- Premium grade construction
- Inboard female joint with spline connection
- 27 outboard splines and 27-2T inboard splines
- Thermoplastic inboard and outboard joint boots
- Axle nut included with self-lock design, M22 x 1.5 thread, 32 mm socket size
- No ABS tone ring included
- Overall compressed length: 22 5/8 in. (575 mm)
- Overall extended length: 24 11/16 in. (627 mm)
Product Details
TrakMotive FD-86053 is part of the AAR CV Axle Shaft line, a product line focused on direct-fit driveline replacement for passenger vehicles. This axle uses a conventional outboard joint, a female inboard joint, and spline-style shaft connections to match the specified Ford Escape and Ford Bronco Sport front right applications. The axle nut is supplied with the unit, and the assembly is built to ISO 9001:2008 and TS 16949:2009 certified standards.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. Compatible with 2020-2024 Ford Escape, front right, and 2021-2023 Ford Bronco Sport, front right, part time 4x4. TrakMotive FD-86053 is a direct replacement choice when servicing the front right driveline on these vehicles.
Common Repair Uses
- Restores driveline operation after CV joint wear
- Addresses clicking or popping noises during turns
- Helps correct vibration from a worn or damaged axle shaft
- Replaces a bent, seized, or broken front right axle assembly
- Supports repair after boot failure and grease loss
Installation Notes
Verify vehicle configuration before installation. For Ford Escape applications, inspect the intermediate shaft for damage and replace it if needed when servicing the CV axle. Confirm axle nut thread size, spline count, and overall length against the original part before assembly. This axle is specified without an ABS tone ring.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced under ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Ford | Escape | AWD | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2023 | Ford | Bronco Sport | — | — | — | Front Right | Part Time 4x4; AAR CV Axle Shaft |
| 2023 | Ford | Escape | AWD | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2022 | Ford | Bronco Sport | AWD | — | — | Front Right | Part Time 4x4; AAR CV Axle Shaft |
| 2022 | Ford | Escape | AWD | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2021 | Ford | Bronco Sport | AWD | — | — | Front Right | Part Time 4x4; AAR CV Axle Shaft |
| 2021 | Ford | Escape | AWD | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
| 2020 | Ford | Escape | AWD | 2.0L | L4 | Front Right | When replacing a CV Axle, it is recommended that the intermediate shaft be inspected for damage and replaced if necessary; AAR CV Axle Shaft |
