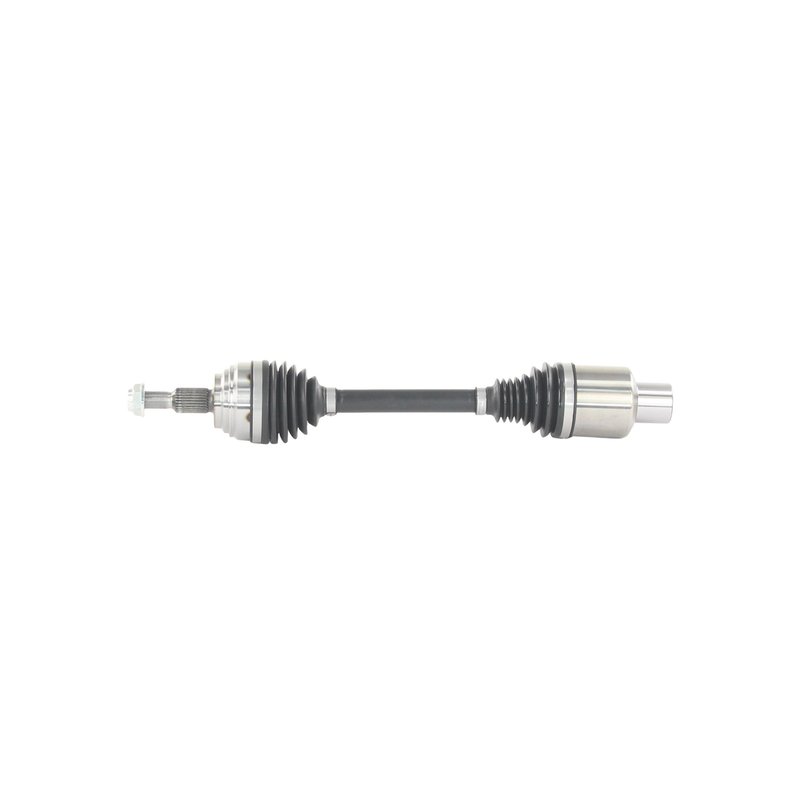

TrakMotive FD-86054 CV Axle Shaft - Front Right

Front Right CV Axle Shaft for Bronco Sport

TrakMotive FD-86054 is a premium CV axle shaft for the front right position on the 2021-2022 Ford Bronco Sport with full time 4x4. It is built for direct replacement service and includes the axle nut for a cleaner repair process.

The AAR CV Axle Shaft line focuses on application-specific driveline replacement parts for passenger vehicles and light-duty platforms. For this Ford Bronco Sport application, FD-86054 follows the required spline and joint configuration for the front right side.

Key Features

• Fits 2021-2022 Ford Bronco Sport, front right
• Premium-grade CV axle shaft for driveline repair
• Inboard joint type: female with spline connection
• Outboard joint type: conventional with spline connection
• Thermoplastic boots on both inboard and outboard joints
• Axle nut included with self-lock design
• No ABS tone ring included
• Overall compressed length: 22 3/4 in. (578 mm)
• Overall extended length: 24.81 in. (630 mm)
• Part number FD-86054

Detailed Description

TrakMotive FD-86054 is a CV axle shaft engineered for the front right side of the 2021-2022 Ford Bronco Sport. It uses a 27-spline outboard connection and a 27-2T inboard spline configuration, along with thermoplastic boot materials for both joints. The axle is supplied with a self-lock axle nut sized M22 x 1.5, and it does not include an ABS tone ring.

This part cross-references Monroe Shocks & Struts (e.g., NCV11275, NCV11285) for the same application. If you are replacing a worn front right axle on a Ford Bronco Sport, FD-86054 provides the correct fitment details for the listed full time 4x4 configuration.

Common Repair Uses

• Clicking or popping noises during turns
• Vibration from a worn or damaged CV axle
• Torn axle boots with grease loss
• Front right driveline wear on full time 4x4 vehicles
• Axle nut or spline wear during CV axle replacement

Installation Notes and Tips

Verify the vehicle is a 2021-2022 Ford Bronco Sport, front right, with full time 4x4 before installation. Confirm spline count, axle length, and axle nut thread size match the original part. Inspect the hub, seals, and surrounding suspension components during replacement, and torque the axle nut to the vehicle manufacturer’s specification.

Quality Assurance

TrakMotive backs this AAR CV Axle Shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:2008 and TS 16949:2009 certified company.
