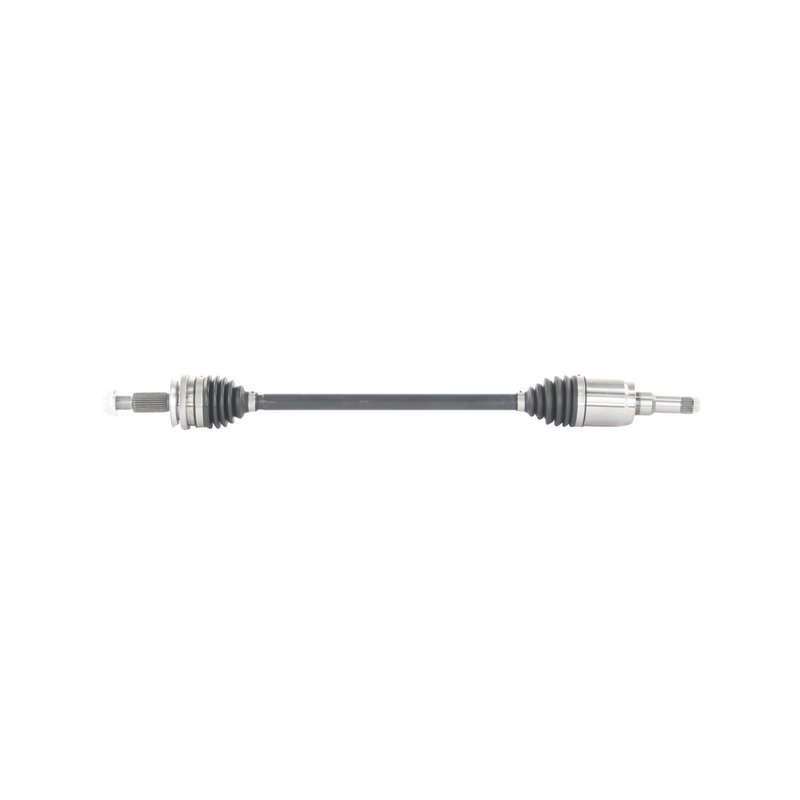

TrakMotive FD-86056 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-86056 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 88 |
| ABS Ring Type | Magnetic |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 7/16 |
| Axle Nut Length (mm) | 36.72 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22*1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32 11/16 |
| Overall Compressed Length (mm) | 831 |
| Overall Extended Length (in) | 34 15/16 |
| Overall Extended Length (in) | 34.94 |
| Overall Extended Length (mm) | 887 |
| Product line | CV Axle Shaft |
| Fits | Ford · 4 vehicles |
Premium grade. Built with thermoplastic boots and spline connections for dependable driveline performance.
ABS tone ring included. Magnetic ring with 88 teeth for accurate wheel-speed signal support.
Axle nut included. Self-locking hex nut is included for a more complete installation.
Cross-references TrakMotive FD-86056 and NCV11298 for the same application. See all 2.
Rear Right CV Axle Shaft for Ford
The TrakMotive FD-86056 CV axle shaft is a premium replacement for rear right driveline service on select Ford applications. It is built for 2021-2022 Ford Bronco Sport Part Time 4x4 and 2020-2021 Ford Escape Standard Duty Replacement rear right positions, with fitment details matched to the listed vehicle configurations.
Key Features
- Premium-grade CV axle shaft for rear right installation
- Fits 2021-2022 Ford Bronco Sport, rear right, Part Time 4x4
- Fits 2020-2021 Ford Escape, rear right, Standard Duty Replacement
- 23 inboard splines and 27 outboard splines for application-specific fit
- Thermoplastic inboard and outboard joint boots
- Male inboard joint with spline connection style
- Conventional outboard joint with spline connection style
- Includes axle nut with M22 x 1.5 thread, self-lock design, and 32 mm socket size
- ABS tone ring included with 88-tooth magnetic ring design
- Overall compressed length: 32 11/16 in. (831 mm); overall extended length: 34.94 in. (887 mm)
Product Details
TrakMotive FD-86056 is a rear right CV axle shaft engineered for Ford driveline repair where the original axle has worn splines, damaged joints, or vibration concerns. This Ford Bronco Sport CV axle shaft and Ford Escape CV axle shaft application uses a magnetic ABS ring with 88 teeth and includes the axle nut specified for the assembly. TrakMotive positions this CV axle shaft as a premium replacement and manufactures to ISO 9001:2008 and TS 16949:2009 certified quality systems.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles and light-duty applications. FD-86056 is listed with interchange reference NCV11298 and is identified for the rear right position on the confirmed Ford fitments above.
Common Repair Uses
- Restoring rear axle operation after CV joint wear or clicking noise
- Addressing vibration during acceleration or steady-speed driving
- Replacing a shaft with damaged splines or boot failure
- Correcting ABS-related driveline service needs when the tone ring is required
- Repairing rear right driveline issues on Ford Bronco Sport and Ford Escape models
Installation Notes
Verify rear right fitment by year, model, and drivetrain configuration before installation. Confirm spline count, axle nut thread size, and ABS ring requirements against the original part. Use the included axle nut only when it matches the vehicle specification, and follow factory torque procedures during installation.
Quality Assurance
TrakMotive FD-86056 is backed by a limited lifetime warranty. It is produced by an ISO 9001:2008 and TS 16949:2009 certified company, supporting consistent manufacturing control for this CV axle shaft replacement.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Ford | Bronco Sport | — | Rear Right | Part Time 4x4; CV Axle Shaft |
| 2021 | Ford | Bronco Sport | — | Rear Right | Part Time 4x4; CV Axle Shaft |
| 2021 | Ford | Escape | AWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Ford | Escape | AWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
