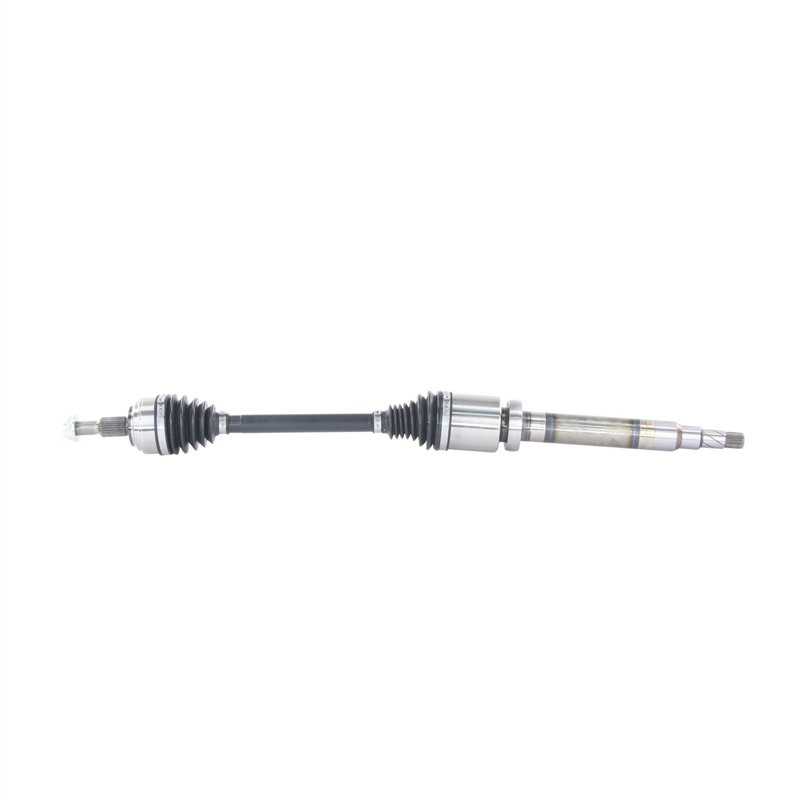

TrakMotive FD-86057 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86057 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Long-male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37.375 |
| Overall Compressed Length (mm) | 949 |
| Overall Extended Length (in) | 39.375 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford · 3 vehicles |
OE-style replacement. Built as a CV axle shaft for straightforward service.
Premium grade. Thermoplastic boots help protect the joints from wear.
Certified quality. Made by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86057 and NCV11249 for the same application. See all 2.
Front Right CV Axle Shaft for Ford Escape
The TrakMotive AAR CV Axle Shaft FD-86057 is a premium replacement axle for the front right position on select Ford Escape models. It is built to match OE AAR design requirements for 2020-2022 Ford Escape applications and includes a self-lock axle nut for the specified fitment.
Key Features
- Fits 2020-2022 Ford Escape, front right
- OE AAR design for direct replacement fitment
- Premium-grade CV axle shaft from TrakMotive
- Long-male inboard joint with spline connection
- Conventional outboard joint design
- Thermoplastic boots on inboard and outboard joints
- Includes axle nut with M22x1.5 thread, 32 mm hex size
- No ABS tone ring included; ABS ring tooth count: 0
- Overall compressed length: 949 mm; overall extended length: 1001 mm
Product Details
TrakMotive FD-86057 is part of the AAR CV Axle Shaft line, a product line focused on OE-style driveline replacement for vehicles that require precise spline counts, joint geometry, and length specifications. This axle uses 22 inboard splines and 27 outboard splines, with thermoplastic boot material at both joints for consistent sealing and driveline service. It cross-references NCV11249 for the same application.
For Ford Escape front right axle replacement needs, FD-86057 provides the specified OE AAR design fitment for 2020, 2021, and 2022 models. The axle nut is included and uses a hex head with self-locking design, helping match the original service configuration.
Common Problems This Part Addresses
- Clicking or popping during turns from a worn outer CV joint
- Vibration under acceleration caused by axle shaft wear
- Grease leakage from damaged CV boots
- Clunking or looseness from spline or joint wear
- Loss of driveline smoothness on the front right side
Installation Notes and Tips
Verify spline count, compressed length, and axle nut thread size before installation. This axle is specified for the front right position on 2020-2022 Ford Escape models with OE AAR design requirements. Confirm whether the vehicle is equipped for a non-ABS axle application, since no ABS tone ring is included.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The company is ISO 9001:2008 and TS 16949:2009 certified, supporting controlled manufacturing and quality management for driveline components.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2022 | Ford | Escape | FWD | 1.5L | L3 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2021 | Ford | Escape | FWD | 1.5L | L3 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Ford | Escape | FWD | 1.5L | L3 | Front Right | OE AAR design; AAR CV Axle Shaft |
