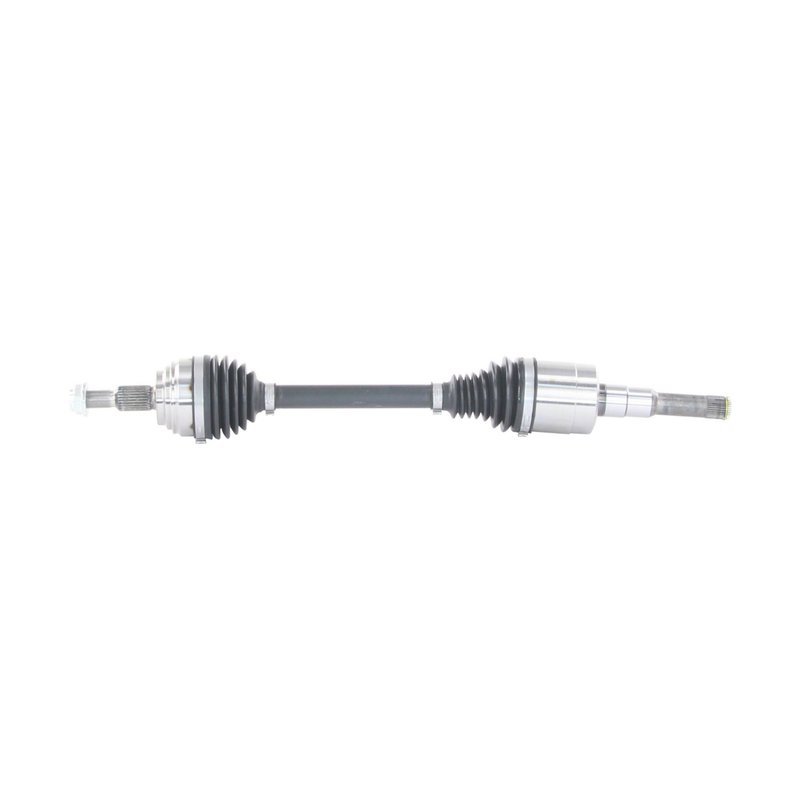

TrakMotive FD-86058 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-86058 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 35 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28 |
| Overall Compressed Length (mm) | 711 |
| Overall Extended Length (in) | 30 |
| Product line | AAR CV Axle Shaft |
| Fits | Ford · 8 vehicles |
OE-style replacement. AAR CV axle shaft for straightforward service.
Premium grade. Built with thermoplastic boots and spline connections.
Self-lock nut included. Comes with a hex axle nut for easier installation.
Cross-references TrakMotive FD-86058 for the same application. See all 1.
Front Left CV Axle Shaft for Ford Escape and Bronco Sport
TrakMotive FD-86058 is a premium AAR CV axle shaft for front left applications on select Ford models. It is built for 2020-2024 Ford Escape and 2021-2023 Ford Bronco Sport fitments, with OE AAR design details for the listed applications.
Key Features
- Front left CV axle shaft for select Ford driveline applications
- OE AAR design for the listed Ford Escape and Bronco Sport fitments
- Premium grade construction
- Male inboard joint with spline connection style
- Conventional outboard joint design
- Thermoplastic boot material on inboard and outboard joints
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
- No ABS tone ring included; ABS ring tooth count is 0
Product Details
TrakMotive FD-86058 is part of the AAR CV Axle Shaft line, a product line focused on OE-style axle shaft replacement for specific driveline layouts. This axle uses 35 inboard splines and 27 outboard splines, with an overall compressed length of 28 inches and an extended length of 30 inches. It is listed for front left use on 2020-2024 Ford Escape and 2021-2023 Ford Bronco Sport, including Bronco Sport full-time and part-time 4x4 applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. TrakMotive FD-86058 is a direct-fit driveline replacement for the specified Ford Escape and Ford Bronco Sport configurations.
Common Problems This Part Addresses
- Clicking or popping from a worn CV joint during turns
- Vibration from a damaged or unbalanced axle shaft
- Grease leakage from deteriorated axle boots
- Axle shaft wear from high-mileage front driveline use
- Loss of smooth power transfer to the front left wheel
Installation Notes and Tips
Verify the vehicle’s front left position, spline count, and axle nut thread size before installation. Confirm whether the application is equipped for non-ABS use, since this axle does not include an ABS tone ring. Use the included axle nut and torque all fasteners to Ford service specifications during installation.
Quality Assurance
TrakMotive manufactures this axle as an ISO 9001:2008 and TS 16949:2009 certified company. FD-86058 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Ford | Escape | AWD | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2023 | Ford | Bronco Sport | — | Front Left | Full Time And Part Time 4x4; AAR CV Axle Shaft |
| 2023 | Ford | Escape | AWD | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2022 | Ford | Bronco Sport | — | Front Left | Full Time And Part Time 4x4; AAR CV Axle Shaft |
| 2022 | Ford | Escape | AWD | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2021 | Ford | Bronco Sport | — | Front Left | Full Time And Part Time 4x4; AAR CV Axle Shaft |
| 2021 | Ford | Escape | AWD | Front Left | OE AAR design; AAR CV Axle Shaft |
| 2020 | Ford | Escape | AWD | Front Left | OE AAR design; AAR CV Axle Shaft |
