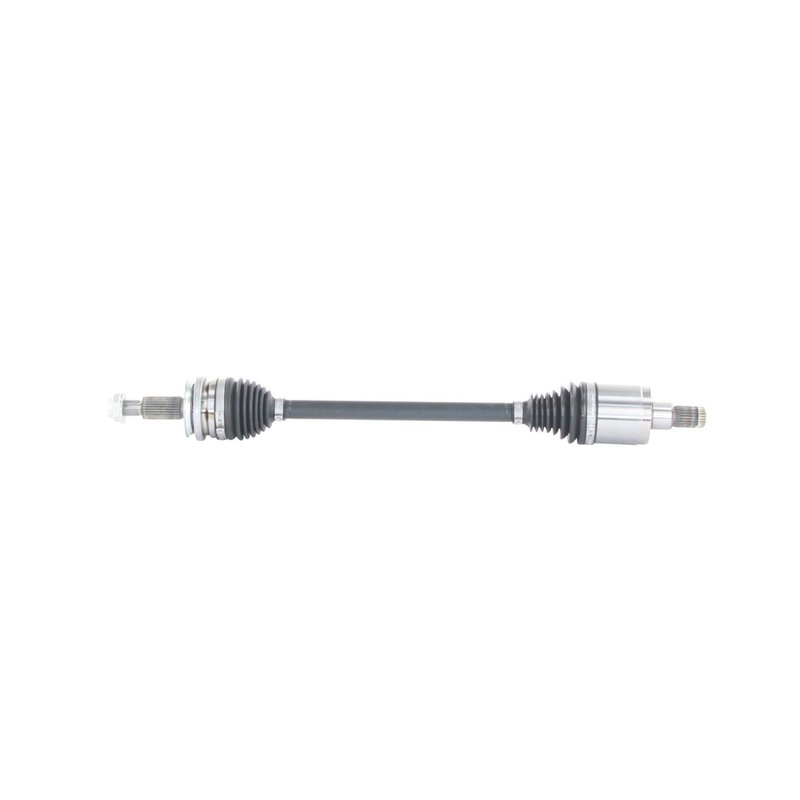

TrakMotive FD-86059 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-86059 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 88 |
| ABS Ring Type | Magnetic |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28 |
| Overall Compressed Length (mm) | 711 |
| Product line | CV Axle Shaft |
| Fits | Ford · 4 vehicles |
OE-style replacement. Built as a CV axle shaft for straightforward service.
Magnetic ABS ring. Includes an 88-tooth tone ring for reliable signal pickup.
Thermoplastic boots. Durable boot material helps protect the joints from wear.
Cross-references TrakMotive FD-86059 for the same application. See all 1.
Rear Right CV Axle Shaft for Bronco and Bronco Sport
TrakMotive FD-86059 is a premium CV axle shaft for the rear right position on select full-time 4WD Ford applications. It is built with a magnetic ABS tone ring, included axle nut, and thermoplastic boots for the inboard and outboard joints.
Compatible with 2021-2022 Ford Bronco and 2021-2022 Ford Bronco Sport, this CV axle shaft is engineered for direct replacement service where the original rear right axle has worn splines, joint noise, or ABS-related concerns.
Key Features
- Part number FD-86059 from TrakMotive CV Axle Shaft line
- Rear right axle shaft for full-time 4WD applications
- Magnetic ABS ring with 88 teeth and included tone ring
- Included axle nut with M22x1.5 thread, 32 mm hex size, and self-lock design
- Premium grade construction with thermoplastic joint boots
- Inboard spline count: 25; outboard spline count: 27
- Compressed length: 28 in; extended length: 29.94 in
Detailed Description
TrakMotive FD-86059 is a rear right CV axle shaft designed for 2021-2022 Ford Bronco and 2021-2022 Ford Bronco Sport models with full-time 4WD. The axle uses a conventional outboard joint, a male inboard joint, and spline connections at both ends for direct driveline service. Its magnetic ABS ring and included tone ring support wheel speed signal transfer in applications that require ABS integration. TrakMotive FD-86059 is a practical replacement choice when servicing a worn or damaged rear axle on a Bronco or Bronco Sport.
This part cross-references TrakMotive FD-86059 for the same application.
Common Repair Symptoms
- Clicking, binding, or vibration from the rear driveline
- Worn axle splines or damaged CV joint components
- ABS warning light caused by tone ring or sensor signal issues
- Grease leakage from deteriorated thermoplastic boots
- Noise during acceleration or load transfer in full-time 4WD operation
Installation Notes
Verify rear right fitment by year, model, and full-time 4WD configuration before installation. Inspect the hub, seals, and mating splines for wear, and replace any damaged related components during service. Confirm axle nut thread size, hex size, and locking style match the vehicle specification before final torque.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled production and quality management standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2022 | Ford | Bronco | Rear Right | Full Time 4WD; CV Axle Shaft |
| 2022 | Ford | Bronco Sport | Rear Right | Full Time 4WD; CV Axle Shaft |
| 2021 | Ford | Bronco | Rear Right | Full Time 4WD; CV Axle Shaft |
| 2021 | Ford | Bronco Sport | Rear Right | Full Time 4WD; CV Axle Shaft |
