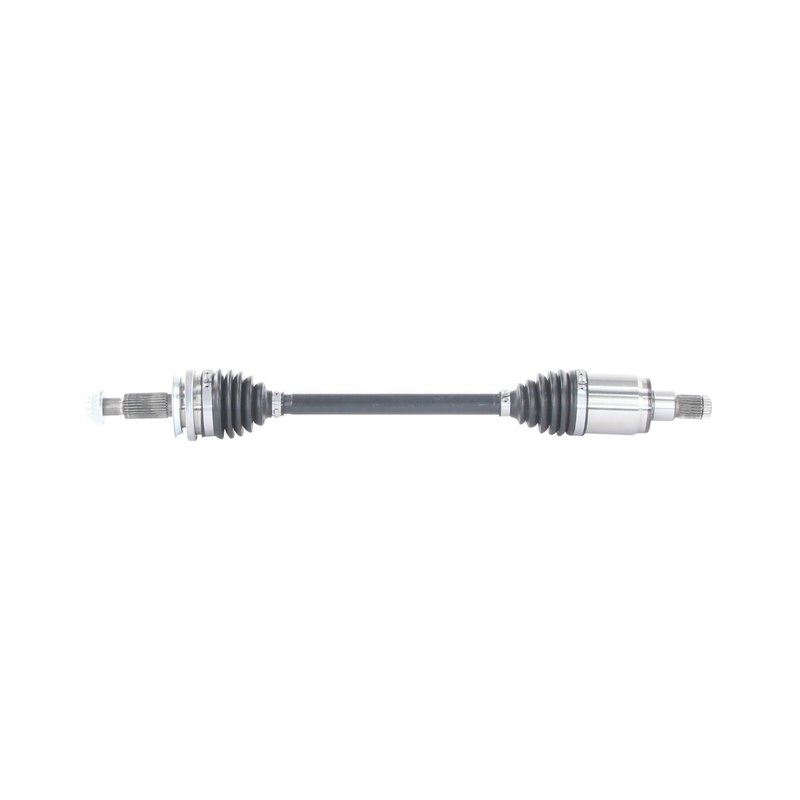

TrakMotive FD-86060 CV Axle Shaft - Rear Left
| Brand | TrakMotive FD-86060 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 88 |
| ABS Ring Type | Magnetic |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.44 |
| Overall Compressed Length (mm) | 671 |
| Product line | CV Axle Shaft |
| Fits | Ford · 6 vehicles |
OE-style replacement. CV axle shaft with included axle nut for a straightforward install.
Magnetic ABS ring. Helps deliver reliable wheel-speed signal performance.
Thermoplastic boots. Resist wear while protecting the joints from contamination.
Cross-references TrakMotive FD-86060, NCV11276 and NCV11292 for the same application. See all 3.
Rear Left CV Axle Shaft for Ford Bronco Sport and Escape
TrakMotive FD-86060 is a premium CV axle shaft for rear left applications on select Ford models. It is built with a thermoplastic boot design, a magnetic ABS tone ring, and included axle nut details to support a direct replacement service.
Key Features
- Fits 2021-2023 Ford Bronco Sport, rear left, Part Time 4x4
- Fits 2020-2022 Ford Escape, rear left, Standard Duty Replacement
- Premium-grade CV axle shaft for driveline repair
- Inboard joint type: male with spline connection
- Outboard joint type: conventional with spline connection
- ABS ring tooth count: 88 with magnetic tone ring included
- Axle nut included: M22x1.5, 32 mm hex, self-locking
- Overall compressed length: 26.44 in. Overall extended length: 28.625 in.
Product Details
The TrakMotive CV Axle Shaft, part number FD-86060, is engineered for rear left driveline service on the Ford Bronco Sport and Ford Escape listed above. This axle uses 25 inboard splines and 27 outboard splines, thermoplastic boot materials, and a magnetic ABS ring setup to match the required rear wheel speed sensing configuration. TrakMotive positions this CV axle shaft as a premium replacement backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing practices.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Restores drivetrain power transfer after CV joint wear
- Addresses clicking, vibration, or binding from a damaged axle shaft
- Replaces a torn boot or grease-loss condition before joint failure
- Supports ABS-related rear wheel speed signal service on equipped vehicles
- Corrects axle noise or play on rear left Ford Bronco Sport and Escape applications
Installation Notes
Verify rear left fitment by year, model, and drivetrain configuration before installation. The included axle nut uses a 32 mm hex and M22x1.5 thread size. Confirm spline counts, compressed length, and ABS ring style against the removed part to ensure proper alignment and sensor operation.
Quality Assurance
TrakMotive states this CV axle shaft is produced by an ISO 9001:2008 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Ford | Bronco Sport | — | Rear Left | Part Time 4x4; CV Axle Shaft |
| 2022 | Ford | Bronco Sport | — | Rear Left | Part Time 4x4; CV Axle Shaft |
| 2022 | Ford | Escape | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Ford | Bronco Sport | — | Rear Left | Part Time 4x4; CV Axle Shaft |
| 2021 | Ford | Escape | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2020 | Ford | Escape | AWD | Rear Left | Standard Duty Replacement; CV Axle Shaft |
