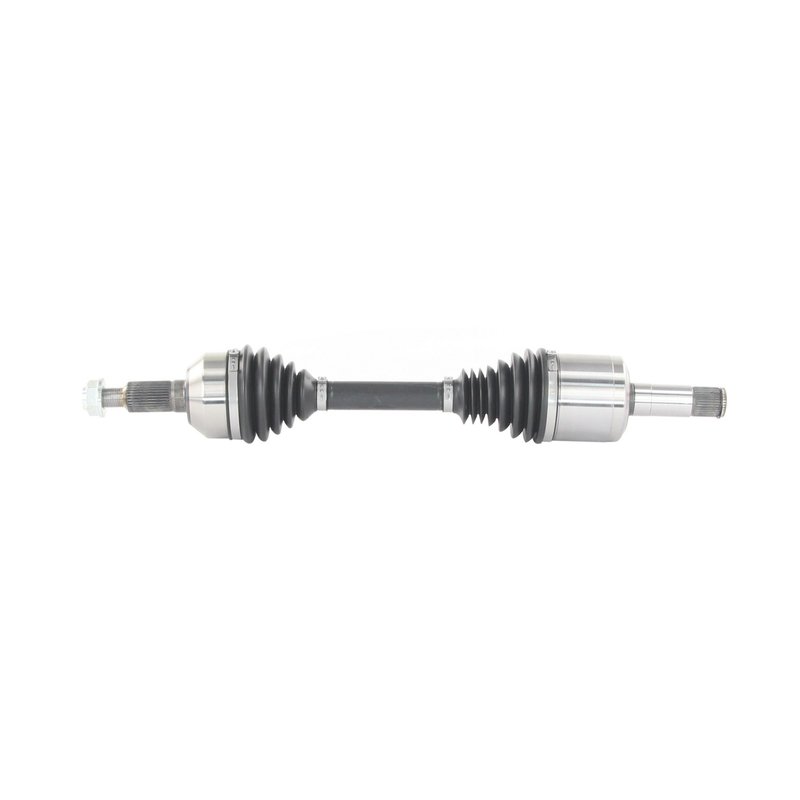

TrakMotive FD-86061 CV Axle Shaft - Front Right
| Brand | TrakMotive FD-86061 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 27.19 |
| Overall Compressed Length (mm) | 691 |
| Overall Extended Length (in) | 29.375 |
| Product line | CV Axle Shaft |
| Fits | Ford · 2 vehicles |
Premium grade. Built as a CV axle shaft with a conventional outboard joint.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Self-lock axle nut. Includes a hex nut for secure, straightforward installation.
Cross-references TrakMotive FD-86061 and NCV11271 for the same application. See all 2.
Front Right CV Axle Shaft for F-150 Lightning
TrakMotive FD-86061 is a premium CV axle shaft for the front right position on the 2022-2023 Ford F-150 Lightning. It is built as a standard duty replacement for this application and includes the axle nut specified for the assembly.
Key Features
- Fits 2022-2023 Ford F-150 Lightning, front right
- Premium-grade CV axle shaft for driveline service
- 34 inboard splines and 33 outboard splines
- Male inboard joint with spline connection style
- Conventional outboard joint design
- Thermoplastic boots on the inboard and outboard joints
- Axle nut included with M24x2 thread, 36 mm hex size, and self-locking design
- No ABS tone ring included; ABS ring tooth count is 0
- Overall compressed length: 691 mm; overall extended length: 746 mm
Product Details
This TrakMotive CV axle shaft, part number FD-86061, is engineered for the front right side of the Ford F-150 Lightning and matches the listed spline counts, joint styles, and length specifications for the application. TrakMotive positions this CV axle shaft line as a premium driveline replacement, and the brand states its products are made by an ISO 9001:2008 and TS 16949:2009 certified company. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Repair Uses
- Restores front axle torque transfer after CV joint wear
- Addresses clicking or popping during turns from a worn axle assembly
- Replaces a damaged axle shaft with spline or boot wear
- Corrects vibration or driveline noise tied to a failing front right axle
- Supports service replacement on 2022-2023 Ford F-150 Lightning front driveline repairs
Installation Notes
Verify front right fitment before installation and confirm axle nut thread size, hex size, and compressed length against the original part. The axle nut is included; use the specified self-locking nut during service and follow factory torque procedures. Because this axle is listed without an ABS tone ring, confirm the vehicle’s original ABS configuration before installation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also identifies its production standards as ISO 9001:2008 and TS 16949:2009 certified.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Ford | F-150 Lightning | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | F-150 Lightning | Front Right | Standard Duty Replacement; CV Axle Shaft |
