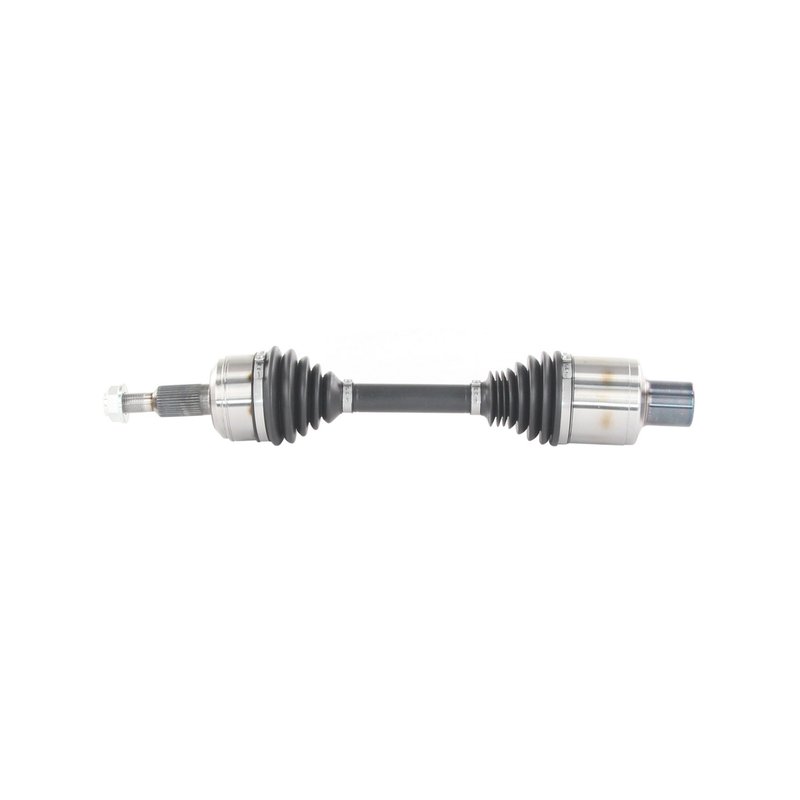

TrakMotive FD-86062 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-86062 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34-1t |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 34 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.375 |
| Overall Compressed Length (mm) | 645 |
| Overall Extended Length (in) | 27.56 |
| Product line | CV Axle Shaft |
| Fits | Ford · 2 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Thermoplastic boots. Help protect the joints from dirt and moisture.
Premium grade. Built by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86062 and NCV11267 for the same application. See all 2.
Ford F-150 Lightning Rear Right CV Axle Shaft
TrakMotive FD-86062 is a premium CV axle shaft for the rear right position on the 2022-2023 Ford F-150 Lightning. It is built for standard duty replacement needs and is specified with a 36 mm axle nut, thermoplastic boots, and spline-style shaft connections for a direct driveline service application.
Key Features
- Fits 2022-2023 Ford F-150 Lightning, rear right
- Premium-grade CV axle shaft for driveline and axle service
- Inboard joint type: female with spline connection style
- Outboard joint type: conventional with spline connection style
- Thermoplastic inboard and outboard joint boots
- Axle nut included; M24x2 thread size, 36 mm hex socket size
- No ABS tone ring included; 0 ABS ring tooth count
- Overall compressed length: 25.375 in. / 645 mm
- Overall extended length: 27.56 in. / 700 mm
Detailed Description
This TrakMotive CV axle shaft, part number FD-86062, is engineered for the rear right driveline position on the Ford F-150 Lightning. It matches the listed application with 34 inboard splines and 34 outboard splines, making it a focused replacement for rear axle service on 2022-2023 Ford F-150 Lightning models. TrakMotive’s CV Axle Shaft line is built for driveline and axle repair work where correct fitment and OE-style connection details matter.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Address
- Clicking or popping from a worn rear CV axle assembly
- Vibration during acceleration from driveline wear
- Boot damage that can lead to grease loss and joint contamination
- Excessive play in the rear axle shaft assembly
- Service replacement for a damaged rear right axle on the Ford F-150 Lightning
Installation Notes and Tips
Verify rear right fitment against the vehicle’s build details before installation. Confirm the axle nut thread size, hex size, and compressed length against the removed part to ensure proper replacement. Because this axle does not include an ABS tone ring, it is intended for non-ABS applications unless otherwise noted by the vehicle configuration.
Quality Assurance
TrakMotive identifies this CV axle shaft as a premium-grade part and states that its manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification. The manufacturer also backs this part with a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Ford | F-150 Lightning | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | F-150 Lightning | Rear Right | Standard Duty Replacement; CV Axle Shaft |
