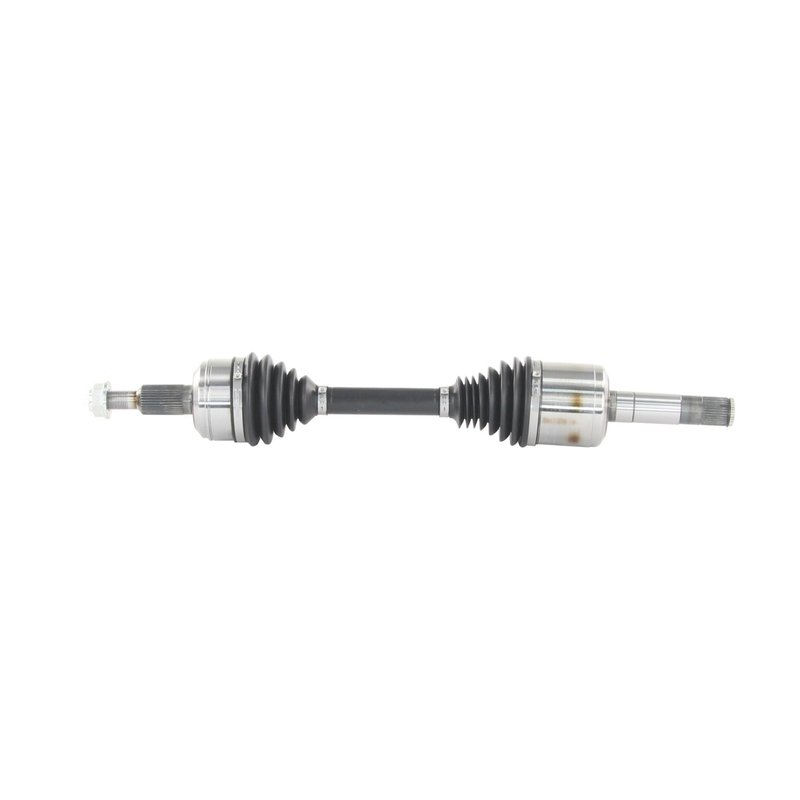

TrakMotive FD-86063 CV Axle Shaft - Rear Left
| Brand | TrakMotive FD-86063 |
|---|---|
| Position | Rear Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 34 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 29 |
| Overall Compressed Length (mm) | 737 |
| Overall Extended Length (in) | 31.19 |
| Product line | CV Axle Shaft |
| Fits | Ford · 2 vehicles |
Premium grade. Built as a CV axle shaft with thermoplastic boots for durable joint protection.
Self-locking axle nut. Included for a secure, ready-to-install connection.
ABS-free design. Configured without an ABS tone ring for non-ABS applications.
Cross-references TrakMotive FD-86063 and NCV11268 for the same application. See all 2.
Rear Left CV Axle Shaft for Ford F-150 Lightning
TrakMotive FD-86063 is a premium CV axle shaft for the rear left position on the 2022-2023 Ford F-150 Lightning. It is built for standard duty replacement use and includes the axle nut for a more complete service fitment.
Key Features
- Fits 2022-2023 Ford F-150 Lightning, rear left
- Premium-grade CV axle shaft for driveline service
- 34-spline inboard and 34-spline outboard shaft connection
- Conventional outboard joint with thermoplastic boot material
- Male inboard joint with spline connection style
- Axle nut included; M24x2 thread, 36 mm hex size, self-lock design
- No ABS tone ring included; 0 ABS ring tooth count
- Overall compressed length: 29 in; overall extended length: 31.19 in
Detailed Description
TrakMotive FD-86063 is a CV axle shaft engineered for the rear left side of the Ford F-150 Lightning. This axle uses a 34-spline inboard and outboard configuration, a conventional outboard joint, and thermoplastic boot materials to support driveline operation in standard duty replacement applications. The included axle nut and self-lock thread specification help simplify parts matching during service. TrakMotive FD-86063 also cross-references NCV11268 for the same application.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Boot damage that can lead to grease loss and contamination
- Axle shaft play or driveline noise at the rear left position
- Service replacement for a damaged Ford F-150 Lightning CV axle shaft
Installation Notes and Tips
Verify rear left fitment before installation and confirm axle nut thread size, hex size, and overall length against the original part. Inspect the hub, seals, and surrounding driveline components for wear before installing the new axle. Because this application uses a self-lock axle nut, follow the vehicle service procedure for proper torque and final tightening.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The brand also notes ISO 9001:2008 and TS 16949:2009 certification, reflecting controlled manufacturing and quality management practices.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Ford | F-150 Lightning | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | F-150 Lightning | Rear Left | Standard Duty Replacement; CV Axle Shaft |
