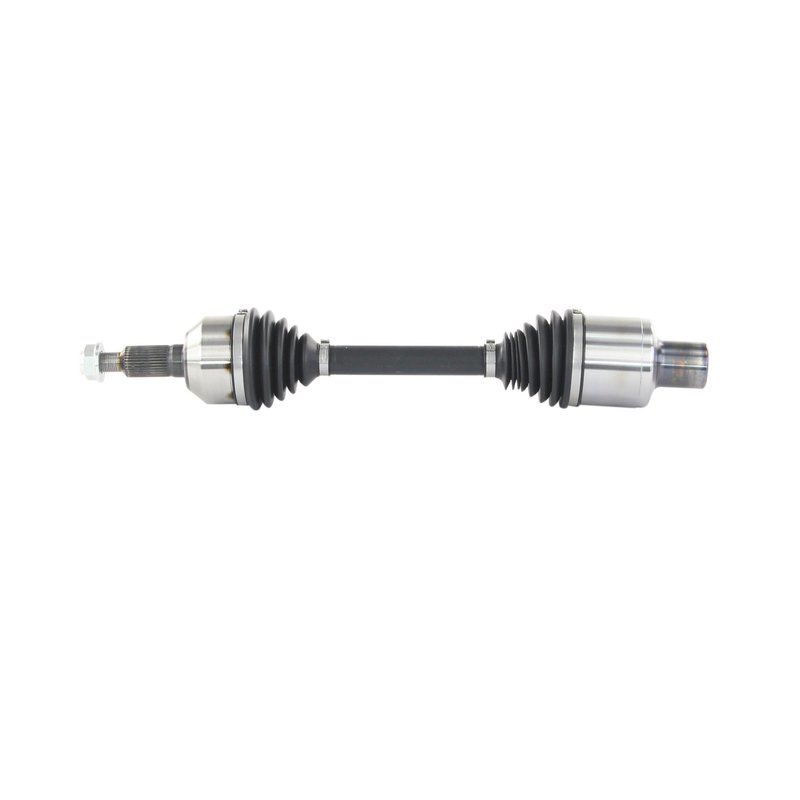

TrakMotive FD-86064 CV Axle Shaft - Front Left
| Brand | TrakMotive FD-86064 |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 34, 1 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.56 |
| Overall Compressed Length (mm) | 675 |
| Overall Extended Length (mm) | 730 |
| Overall Extended Length(In) | 28.75 |
| Product line | CV Axle Shaft |
| Fits | Ford · 2 vehicles |
OE-style replacement. Built as a premium CV axle shaft for straightforward service.
Thermoplastic boots. Help protect the joints with durable, flexible coverage.
Self-lock axle nut included. Ready for a cleaner, more complete installation.
Cross-references TrakMotive FD-86064 and NCV11272 for the same application. See all 2.
Front Left CV Axle Shaft for Ford F-150 Lightning
TrakMotive FD-86064 is a premium CV axle shaft for the front left position on the 2022-2023 Ford F-150 Lightning. It is built as a standard duty replacement for direct driveline service and includes the axle nut for a complete service-ready fit.
Key Features
- Fits 2022-2023 Ford F-150 Lightning, front left
- TrakMotive CV Axle Shaft, part number FD-86064
- Premium-grade replacement for driveline and axle service
- Overall compressed length: 26.56 in. (675 mm)
- Overall extended length: 28.75 in. (730 mm)
- Inboard joint type: female with spline connection
- Outboard joint type: conventional with spline connection
- Includes axle nut with M24x2 thread, 36 mm hex size, and self-lock design
- Thermoplastic boot material on inboard and outboard joints
- ABS tone ring not included; ABS ring tooth count: 0
Product Details
This TrakMotive CV axle shaft is engineered for the front left driveline position on the Ford F-150 Lightning and matches the listed application by length, spline count, and joint configuration. FD-86064 uses a 34-spline inboard connection and a 33-spline outboard connection, with a female inboard joint and conventional outboard joint for direct replacement service. TrakMotive FD-86064 is also cross-referenced to NCV11272 for the same application.
Common Issues This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Torn boots that allow grease loss and contamination
- Excessive play in the front left axle assembly
- Noise from a worn driveline component under load
Installation Notes and Tips
Verify front left fitment against the vehicle’s original axle length, spline count, and axle nut specifications before installation. Inspect the hub, seals, and surrounding suspension components during service, and confirm the axle nut thread size and hex size match the OE-style hardware requirements. This axle is listed for non-ABS applications unless otherwise noted, and no ABS tone ring is included.
Quality Assurance
TrakMotive manufactures this CV axle shaft as an ISO 9001:2008 and TS 16949:2009 certified product. FD-86064 is backed by a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Ford | F-150 Lightning | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | F-150 Lightning | Front Left | Standard Duty Replacement; CV Axle Shaft |
