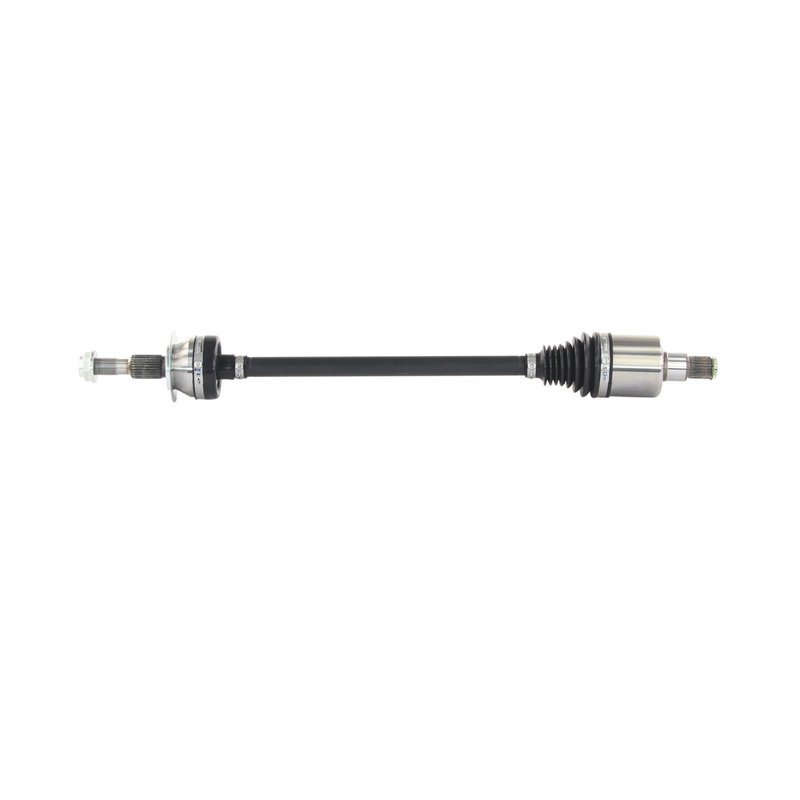

TrakMotive FD-86065 CV Axle Shaft - Rear Left

Rear Left CV Axle Shaft for Ford Edge and Lincoln Nautilus

TrakMotive FD-86065 is a premium AAR CV axle shaft for rear left applications on select Ford and Lincoln vehicles. It is built for OE AAR design fitment and includes the axle nut specified for the application.

Key Features

• Fits 2019-2023 Ford Edge, rear left
• Fits 2019-2020 Lincoln Nautilus, rear left
• OE AAR design replacement for the rear left position
• Premium-grade CV axle shaft construction
• Inboard joint type: male with spline connection
• Outboard joint type: conventional with spline connection
• 25 inboard splines and 27 outboard splines
• Thermoplastic boots on both inboard and outboard joints
• Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design
• No ABS tone ring included; ABS ring tooth count: 0

Product Details

TrakMotive FD-86065 is part of the AAR CV Axle Shaft line, a rear axle application focused on OE-style fitment and driveline restoration. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. For Ford Edge and Lincoln Nautilus rear left service, the axle measures 29 inches compressed and 30.81 inches extended, with a 736 mm compressed length and 783 mm extended length. TrakMotive FD-86065 is manufactured by an ISO 9001:2008 and TS 16949:2009 certified company.

Common Repair Symptoms

• Clicking or popping from the rear driveline during turns
• Vibration or shudder from the rear axle area
• Boot damage that has led to grease loss
• Excessive play or wear in the CV axle assembly
• Noise from a worn rear left axle shaft on Ford Edge or Lincoln Nautilus

Installation Notes

Verify rear left fitment by year, make, and model before installation. Confirm axle nut thread size, hex size, and overall length against the original part to ensure proper replacement. Because this axle is listed without an ABS tone ring, match it to the vehicle’s original rear axle configuration before service.

Quality Assurance

TrakMotive FD-86065 is backed by a limited lifetime warranty. The manufacturer states that ABS axles fit non-ABS applications unless otherwise noted, and the company is ISO 9001:2008 and TS 16949:2009 certified.
