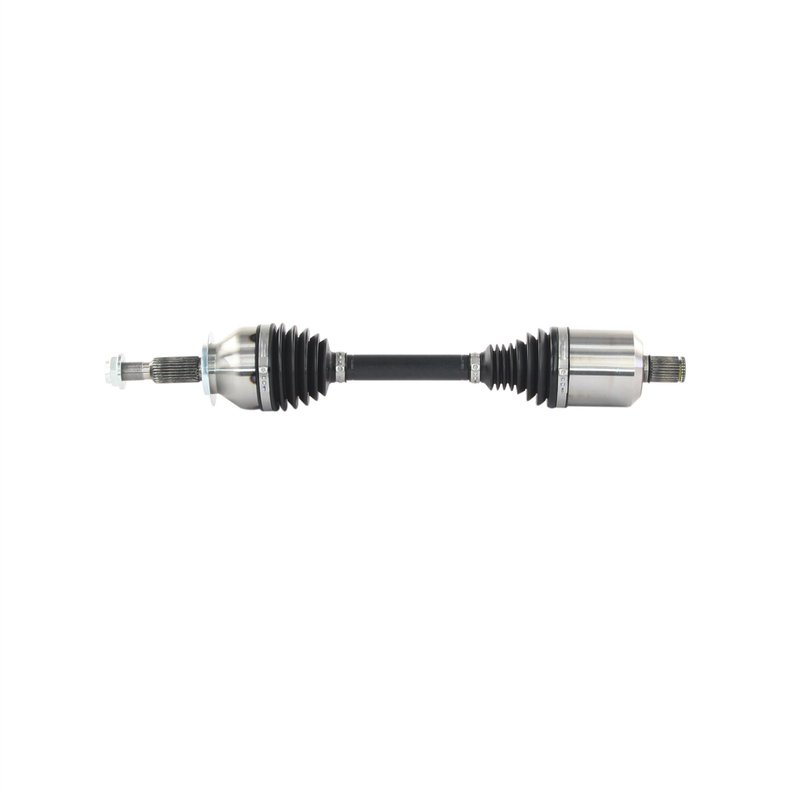

TrakMotive FD-86066 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-86066 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 32 |
| Axle Nut Thread Size | M22x1.5 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.69 |
| Overall Compressed Length (mm) | 601 |
| Overall Extended Length (in) | 26 |
| Product line | CV Axle Shaft |
| Fits | Ford · 3 vehicles |
OE-style replacement. Direct-fit CV axle shaft for straightforward installation.
Premium grade. Built with thermoplastic boots for durable joint protection.
Includes axle nut. Self-locking nut is provided for a complete install.
Cross-references TrakMotive FD-86066 and NCV11266 for the same application. See all 2.
Rear Right CV Axle Shaft for Mustang Mach-E
TrakMotive FD-86066 is a premium CV axle shaft for the rear right position on the 2021-2023 Ford Mustang Mach-E. It is built as a standard-duty replacement with the correct spline counts, compressed and extended lengths, and included axle nut for a direct service fit.
Key Features
- Fits 2021-2023 Ford Mustang Mach-E, rear right
- Premium-grade CV axle shaft for driveline service
- 27 splines on the inboard and outboard ends
- Overall compressed length: 23.69 in. (601 mm)
- Overall extended length: 26 in. (660 mm)
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-lock design
- Thermoplastic boot material on both joints
- No ABS tone ring included; 0 ABS ring tooth count
Product Details
This TrakMotive CV axle shaft, part number FD-86066, is engineered for the rear right driveline position on the Ford Mustang Mach-E. The shaft uses a male inboard joint with spline connection and a conventional outboard joint, matching the listed application requirements. TrakMotive identifies this part as a premium replacement and notes ISO 9001:2008 and TS 16949:2009 certified manufacturing processes. The FD-86066 also cross-references NCV11266 for the same application.
Common Repair Symptoms
- Clicking or popping from the rear axle area during acceleration or turning
- Vibration felt through the driveline under load
- Grease leakage from damaged CV boots
- Excessive play or noise from a worn axle shaft assembly
- Loss of smooth power transfer to the rear right wheel
Installation Notes
Verify rear right fitment before installation on the 2021-2023 Ford Mustang Mach-E. Confirm axle nut thread size, hex size, and overall shaft length against the original part before assembly. Because this axle is listed without an ABS tone ring, use it only for the non-ABS configuration noted by the manufacturer. Follow factory torque specifications and inspect related seals, hubs, and suspension components during service.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also states that its products are manufactured under ISO 9001:2008 and TS 16949:2009 certified quality systems.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Ford | Mustang Mach-E | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | Mustang Mach-E | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2021 | Ford | Mustang Mach-E | Rear Right | Standard Duty Replacement; CV Axle Shaft |
