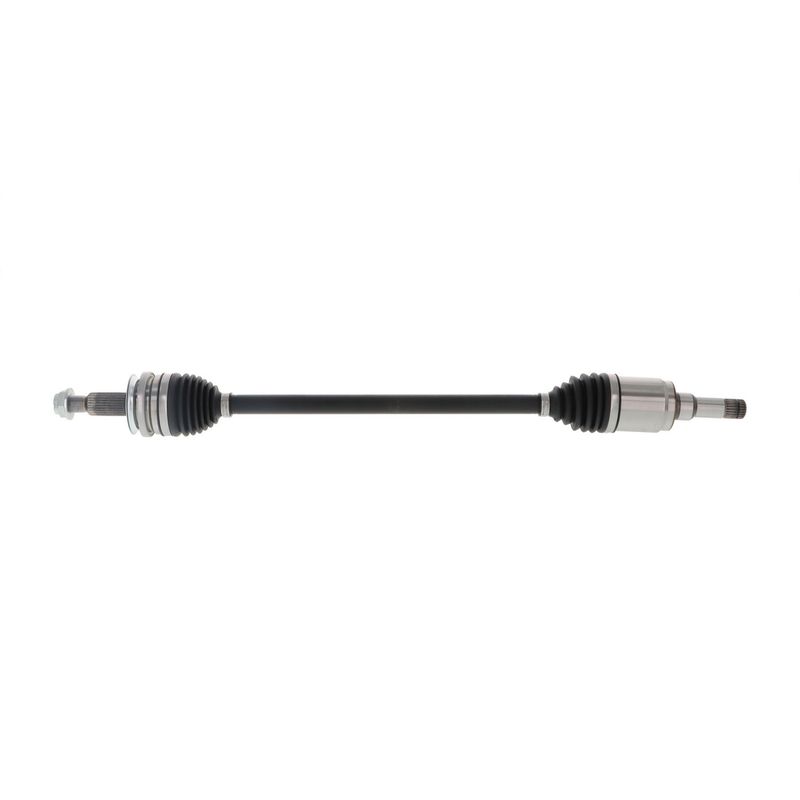

TrakMotive FD-86093 CV Axle Shaft - Rear Right
| Brand | TrakMotive FD-86093 |
|---|---|
| Position | Rear Right |
| ABS Ring Tooth Count | 44 |
| ABS Ring Type | Magnetic |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.75 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1.25 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.44 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.94 |
| Overall Compressed Length (mm) | 837 |
| Overall Extended Length (In) | 35.19 |
| Overall Extended Length (mm) | 893 |
| Product line | CV Axle Shaft |
| Fits | Ford · 2 vehicles |
OE-style replacement. Direct-fit CV axle shaft for the listed driveline application.
ABS sensing components. Includes a magnetic ring and tone ring for ABS-equipped setups.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86093 and NCV11286 for the same application. See all 2.
Product Overview
The TrakMotive FD-86093 CV axle shaft is a direct driveline replacement for the rear right position on select Ford Maverick applications. It is built with spline connections, thermoplastic boots, and an included axle nut to match the listed fitment requirements.
This axle shaft is engineered with a magnetic ABS ring, 44 tooth count, and included tone ring for applications that use ABS-related sensing. The FD-86093 is a fitment-specific replacement for 2022-2023 Ford Maverick rear right standard duty applications.
Key Features
- Fits 2022-2023 Ford Maverick, rear right.
- Magnetic ABS ring with 44 teeth and included tone ring.
- Thermoplastic inboard and outboard boots for driveline protection.
- Includes axle nut with M22x1.5 thread, 32 mm hex size, and self-locking design.
- Spline-style shaft connections with 23 inboard splines and 27 outboard splines.
Detailed Description
TrakMotive FD-86093 is a CV axle shaft for the rear right side of the Ford Maverick. The assembly uses a male inboard joint, a conventional outboard joint, and spline connections at both ends for a precise driveline interface. Its compressed and extended lengths are listed at 32.94 inches and 35.19 inches, respectively, to match the specified application.
The axle includes ABS-related components with a magnetic ring and tone ring, making it suitable for the listed ABS-equipped configuration. TrakMotive identifies this part number as FD-86093, and it cross-references Monroe Shocks & Struts NCV11286 for the same application.
What It Is Used For
- Restores driveline connection when the original axle shaft is worn or damaged.
- Addresses clicking, vibration, or binding caused by CV joint wear.
- Supports ABS signal function when the original sensing components are no longer reliable.
- Replaces a bent or noisy axle assembly in the rear right driveline position.
Installation Notes and Quality Assurance
Verify axle spline count, ABS configuration, and measured length against the removed part before installation. Confirm the axle nut thread size and hex size match the vehicle specification. This part is backed by a limited lifetime warranty and is produced by an ISO 9001:2008 and TS 16949:2009 certified company.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2023 | Ford | Maverick | AWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2022 | Ford | Maverick | AWD | Rear Right | Standard Duty Replacement; CV Axle Shaft |
