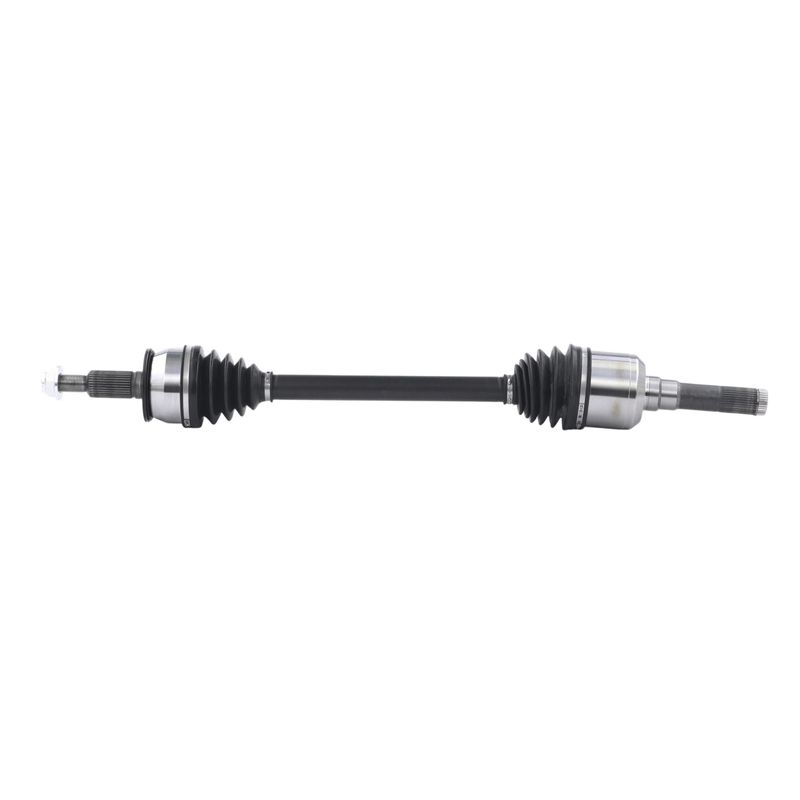

TrakMotive FD-86097 CV Axle Shaft - Rear Left
| Brand | TrakMotive FD-86097 |
|---|---|
| Position | Rear Left |
| ABS Tone Ring Included | No |
| ABS Tone Ring Tooth Quantity | 0 |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 41 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Inboard Splines | 34 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Boot Material | Neoprene |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 36.63 |
| Overall Compressed Length (mm) | 930 |
| Overall Extended Length (in) | 38.38 |
| Overall Extended Length (mm) | 975 |
| Product line | CV Axle Shaft |
| Fits | Ford · 6 vehicles |
Premium-grade construction. Built as a CV axle shaft for driveline service and replacement.
Neoprene boot material. Helps protect the joints from contamination and wear.
Certified manufacturing. Produced by an ISO 9001:2008 and TS 16949:2009 certified company.
Cross-references TrakMotive FD-86097 for the same application. See all 1.
Overview
TrakMotive FD-86097 is a premium CV axle shaft for specific Ford Expedition rear left applications. It is built for non-ABS use unless otherwise noted and includes a self-lock axle nut for the listed fitment.
- Premium-grade CV axle shaft for driveline service
- Neoprene boots help protect the joints from contamination
- 34 inboard splines and 33 outboard splines for the specified application
- Includes a self-lock axle nut with M24x2 thread size
- ABS tone ring not included for non-ABS applications
Fitment Details
Compatible With 2018-2023 Ford Expedition rear left applications with an 8.8-inch ring gear. This TrakMotive CV axle shaft, part number FD-86097, matches the listed rear left configuration for the Ford Expedition and is intended for the specified driveline setup.
What It Helps Address
- Clicking or popping noises from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Boot failure that exposes the joint to dirt and moisture
- Loss of driveline smoothness from spline or joint wear
Installation Notes
Verify the vehicle is a non-ABS application unless otherwise noted in the fitment data. Confirm spline count, axle nut thread size, and compressed length before installation. The axle nut is included; no additional hardware claims are made here. Part number FD-86097 should be matched to the vehicle’s rear left driveline configuration before service.
Quality Assurance
TrakMotive lists this CV axle shaft as a premium-grade component and identifies the company as ISO 9001:2008 and TS 16949:2009 certified. The product also carries a limited lifetime warranty. Part number FD-86097 is supported by those manufacturing and warranty details.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Ford | Expedition | Rear Left | With 8.8" ring gear; CV Axle Shaft |
| 2022 | Ford | Expedition | Rear Left | With 8.8" ring gear; CV Axle Shaft |
| 2021 | Ford | Expedition | Rear Left | With 8.8" ring gear; CV Axle Shaft |
| 2020 | Ford | Expedition | Rear Left | With 8.8" ring gear; CV Axle Shaft |
| 2019 | Ford | Expedition | Rear Left | With 8.8" ring gear; CV Axle Shaft |
| 2018 | Ford | Expedition | Rear Left | With 8.8" ring gear; CV Axle Shaft |
