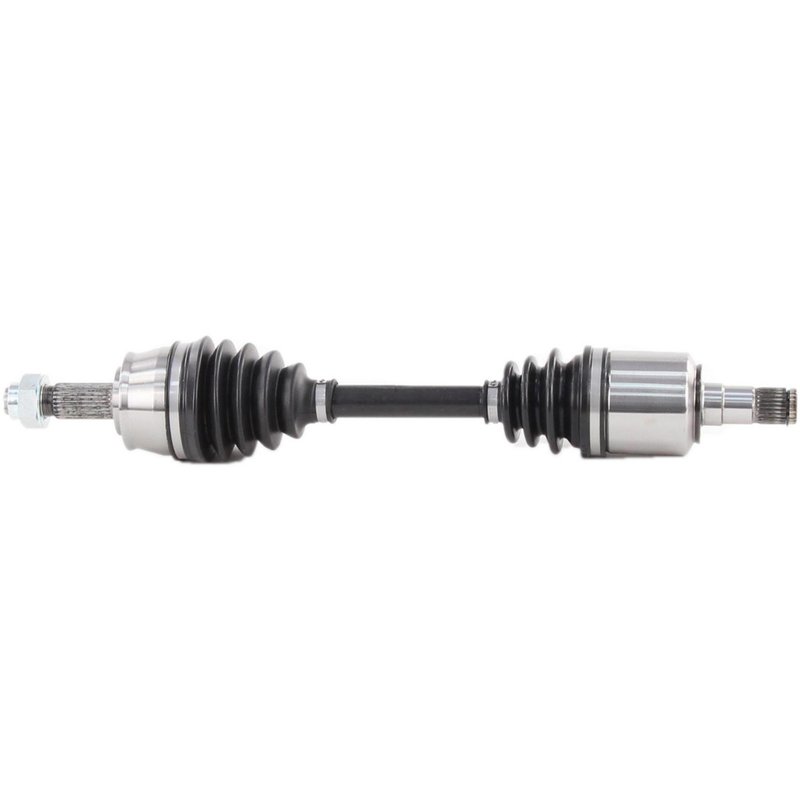

TrakMotive FI-8003 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft FI-8003 for Fiat 500

The TrakMotive CV Axle Shaft FI-8003 is designed specifically for the Fiat 500, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Fiat 500 models
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Inboard joint type: Male with 26 splines
• Outboard joint type: Conventional with 25 splines
• Overall compressed length: 21.93 inches (557 mm)
• Axle nut specifications: Hex head, 1.04 inches height, 1.42 inches hex size, M24*1.5 thread size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The FI-8003 model is part of this line, offering a new axle shaft designed to meet OEM specifications for the Fiat 500. This ensures compatibility and performance consistency within the driveline and axle category.

Detailed Product Description

This CV axle shaft features a neoprene boot that provides resistance to wear and environmental factors, helping to maintain joint integrity. The inboard joint uses a male spline connection with 26 splines, while the outboard joint is conventional with 25 splines, both designed for secure and efficient power transfer. The included axle nut has a hex head type with a stake locking mechanism, measuring 1.04 inches in height and 1.42 inches across the hex, ensuring a secure fit. The overall compressed length of 21.93 inches (557 mm) matches the Fiat 500's specifications for proper installation and operation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Fiat 500
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage from torn or damaged boots
• Fixes axle shaft play or looseness affecting driveline stability
• Restores proper axle nut fitment and locking to prevent loosening

Installation Notes and Tips

Ensure the axle nut is torqued to the manufacturer’s specifications and properly staked to prevent loosening. Verify spline engagement on both inboard and outboard joints for a secure fit. Inspect the neoprene boot for any damage during installation to maintain joint protection. It is recommended to replace the axle nut included with the shaft to ensure proper locking and fitment.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft FI-8003 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a stake-type locking axle nut to maintain secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and durability in driveline applications.
