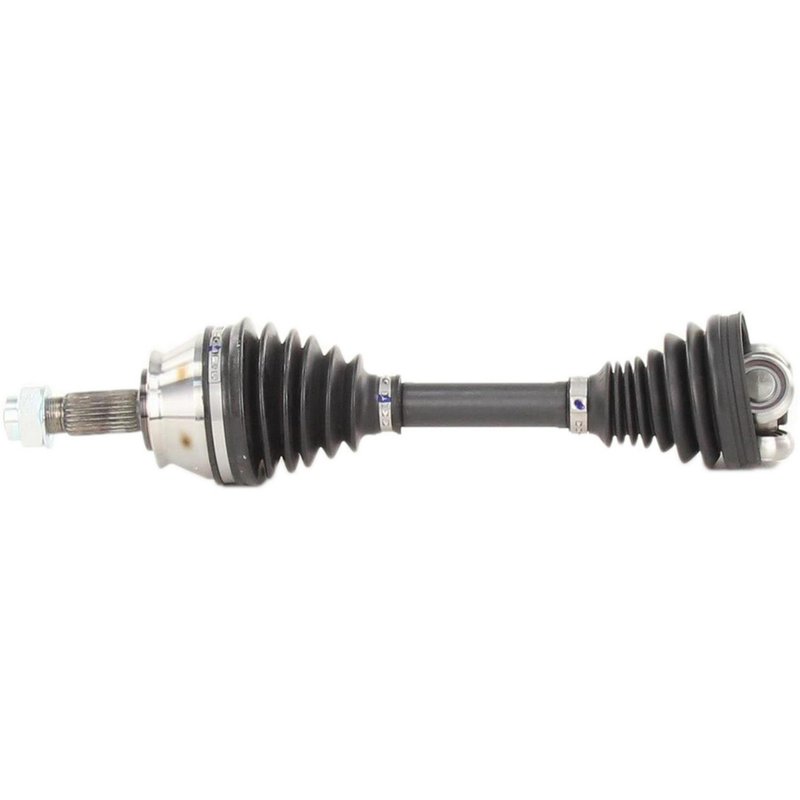

TrakMotive FI-8006 CV Axle Shaft - Front Right

TrakMotive AAR CV Axle Shaft for Fiat 500L Overview

The TrakMotive AAR CV Axle Shaft FI-8006 is engineered specifically for the Fiat 500L, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring a precise fit and dependable operation.

• Compatible with Fiat 500L models
• Includes axle nut with stake locking type
• Neoprene boot material for durability
• Overall compressed length of 18.58 inches (472 mm)
• Hex head axle nut with M24*1.5 thread size
• Tripod inboard shaft connection and spline outboard connection
• 25 outboard splines with conventional joint type

About the AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering quality CV components designed for specific vehicle applications. This product line emphasizes precise fitment and durability, featuring components like neoprene boots and stake-type locking axle nuts to maintain driveline integrity under various driving conditions.

Detailed Product Description

The FI-8006 CV axle shaft is a new, not remanufactured, component tailored for the Fiat 500L. It features a neoprene boot that resists wear and environmental damage, helping to protect the joint from contaminants. The axle nut included is a hex head type, measuring 1.42 inches (36 mm) across the flats, with a height of 1.04 inches (26.5 mm) and a length of 1.63 inches (41.5 mm). The stake locking type axle nut ensures secure fastening to prevent loosening during operation. The inboard shaft connection uses a tripod style, while the outboard shaft connects via a spline with 25 splines, paired with a conventional joint type. The overall compressed length of 18.58 inches (472 mm) ensures proper fitment and alignment within the driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Fiat 500L
• Resolves issues with axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded boots
• Fixes axle nut loosening problems with stake locking design
• Restores driveline stability and smooth power transfer

Installation Notes and Tips

When installing the TrakMotive FI-8006 CV axle shaft, ensure the axle nut is torqued to the manufacturer’s specifications to maintain the stake locking feature. Inspect the tripod and spline connections for proper engagement before final assembly. Use appropriate tools for the hex head axle nut (36 mm) to avoid rounding. Verify the neoprene boot is seated correctly to prevent premature wear or contamination.

Quality Assurance and Warranty

This CV axle shaft is manufactured new to meet or exceed OEM standards for fit and function. The neoprene boot and stake locking axle nut contribute to long-term durability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in Fiat 500L applications.
