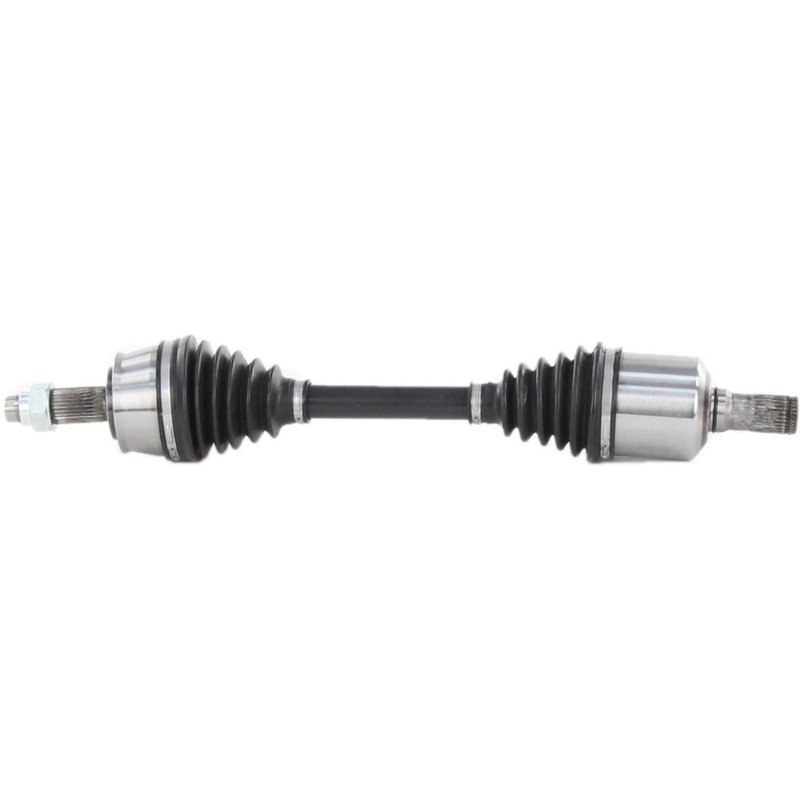

TrakMotive FI-8009 CV Axle Shaft - Front Left
| Brand | TrakMotive FI-8009 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.04 |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Hex Size (in) | 1.42 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.64 |
| Axle Nut Length (mm) | 41.57 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.6 |
| Overall Compressed Length (mm) | 599.5 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep and Fiat · 16 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
Spline connections. Male inboard and conventional outboard joints for secure engagement.
Certified manufacturing. Built by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive FI-8009, 6825 4461AA and 68249357AA for the same application. See all 6.
Front Left CV Axle Shaft for Jeep Renegade and Fiat 500X
The TrakMotive FI-8009 AAR CV Axle Shaft is a new front left axle assembly built for specific Jeep Renegade and Fiat 500X applications. It is engineered with spline-style shaft connections, a neoprene boot, and included axle nut details to support a direct replacement on listed vehicles.
Key Features
- Part number: FI-8009
- Front left CV axle shaft for listed applications
- New construction with conventional outboard joint type
- Male inboard joint with spline shaft connections
- Neoprene boot material
- Axle nut included with M24 x 1.5 thread size
- No ABS tone ring included
- Overall compressed length: 23.6 in. (599.5 mm)
- TrakMotive AAR CV Axle Shaft line
Product Details
TrakMotive FI-8009 is part of the AAR CV Axle Shaft line, a product line focused on direct-fit driveline replacement for specific vehicle applications. This axle shaft is listed for 2015-2018 Jeep Renegade front left, 2016-2018 Fiat 500X front left, and 2017-2020 Jeep Renegade front left. It uses 30 inboard splines and 27 outboard splines, with a hex axle nut and stake-style locking design. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Axle Shaft Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration caused by axle wear
- Grease leakage from a damaged CV boot
- Driveline noise from spline or joint wear
- Front left axle replacement needs on listed Jeep Renegade and Fiat 500X models
Installation Notes and Tips
Verify front left fitment by year, make, model, and axle configuration before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification. Because this axle does not include an ABS tone ring, use it only where the application does not require one unless otherwise noted in the vehicle listing. Inspect hub, seals, and related suspension components during replacement to help ensure proper operation.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
| Year | Make | Model | # Doors | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020 | Jeep | Renegade | — | — | 2.4L | L4 | Front Left | AAR CV Axle Shaft |
| 2019 | Jeep | Renegade | — | — | 2.4L | L4 | Front Left | AAR CV Axle Shaft |
| 2018 | Fiat | 500X | — | — | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Fiat | 500X | — | FWD | 1.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2018 | Jeep | Renegade | — | — | 2.4L | L4 | Front Left | AAR CV Axle Shaft |
| 2018 | Jeep | Renegade | — | AWD | 1.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Fiat | 500X | 4 Door | — | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Fiat | 500X | — | FWD | 1.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Jeep | Renegade | — | — | 2.4L | L4 | Front Left | AAR CV Axle Shaft |
| 2017 | Jeep | Renegade | — | AWD | 1.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Fiat | 500X | 4 Door | — | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Fiat | 500X | — | FWD | 1.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Jeep | Renegade | — | — | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Jeep | Renegade | — | — | 1.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Jeep | Renegade | — | — | 2.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
| 2015 | Jeep | Renegade | — | — | 1.4L | L4 | Front Left | Updated Design; AAR CV Axle Shaft |
