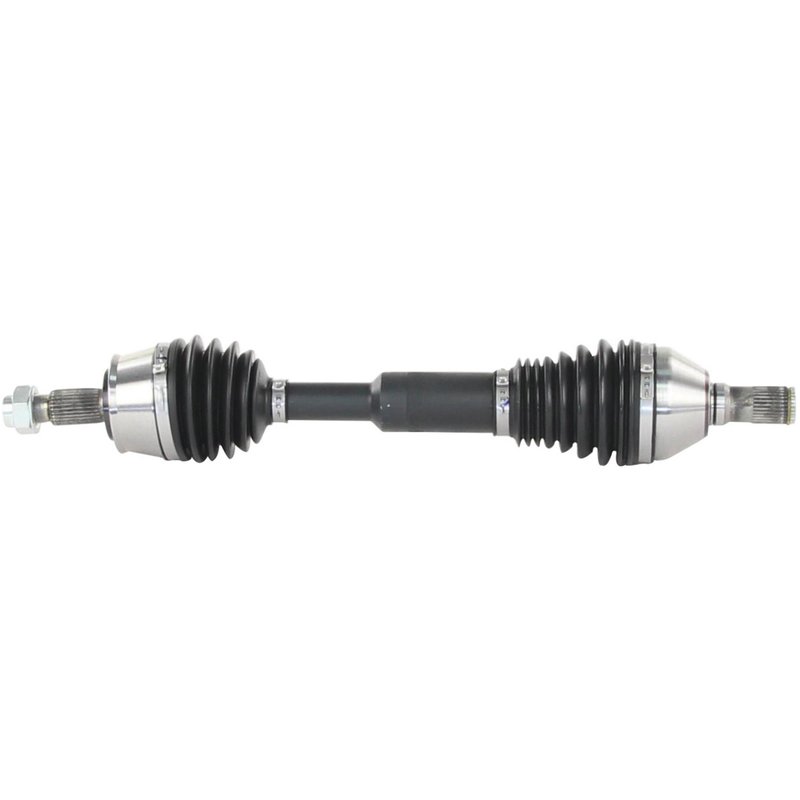

TrakMotive FI-8009XTT CV Axle Shaft - Front

Extended Travel CV Axle for Renegade

TrakMotive FI-8009XTT is an extended travel CV axle shaft for the front position on select Jeep Renegade models. It is built for applications that need more suspension movement than a standard OE-style axle can provide, while maintaining direct driveline connection and proper spline engagement.

The TrakMotive Extended Travel CV Axle Shaft line adds extra operating range through a sliding center bar design. For Jeep Renegade front axle service, FI-8009XTT provides up to 44 mm more travel than a typical OEM CV shaft and CV joint articulation up to 47 degrees, compared with a typical 23-degree OE joint limit.

Key Features

• Front CV axle shaft for 2015-2020 Jeep Renegade
• Extended Travel CV Axle Shaft design for increased suspension movement
• Sliding center bar construction for added axle travel
• Up to 44 mm more travel than a standard OEM CV shaft
• Up to 47-degree CV joint articulation
• Premium grade construction
• Includes axle nut with M24x1.5 thread size
• Inboard joint: male, spline connection, 30 splines
• Outboard joint: conventional, spline connection, 27 splines
• Thermoplastic boot material on inboard and outboard joints

Detailed Description

TrakMotive FI-8009XTT is engineered for the front driveline on the Jeep Renegade, with fitment for 2015-2020 models. This CV axle shaft uses a male inboard joint with a spline-style connection and a conventional outboard joint, helping maintain the correct driveline interface for the application. The axle measures 599 mm compressed and 659 mm extended, giving it the added operating range needed for vehicles with increased suspension travel.

For buyers searching for a Jeep Renegade front CV axle shaft, extended travel axle replacement, or TrakMotive FI-8009XTT, this part is built around the specifications needed for the listed application. This part cross-references TrakMotive FI-8009XTT for the same application.

What It Helps Address

• CV axle binding during increased suspension droop
• Axle overextension on lifted or travel-focused front suspension setups
• Driveline vibration caused by incorrect axle length or articulation limits
• Front axle wear from operating outside OE travel range
• Replacement needs for a worn Jeep Renegade front CV axle

Installation Notes

Fits 2015-2020 Jeep Renegade, front. Always replace in pairs for balanced driveline service. Verify spline count, axle nut thread size, and compressed/extended length before installation. Confirm the front axle is the correct side and configuration for the vehicle before assembly.

Quality Assurance

TrakMotive lists this as a premium-grade Extended Travel CV Axle Shaft. The design uses thermoplastic boots and application-specific spline counts to match the listed Jeep Renegade front fitment.
