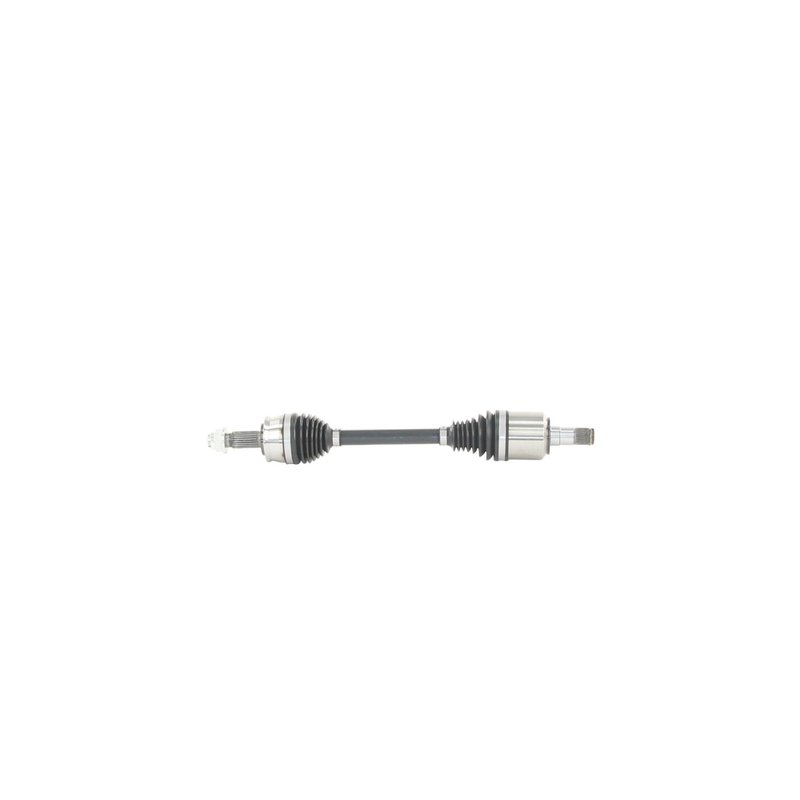

TrakMotive FI-86003 CV Axle Shaft - Front Left

CV Axle Shaft for Fiat 500 Front Left

TrakMotive FI-86003 is a premium CV axle shaft for the front left position on the 2012-2013 Fiat 500. It is built for standard duty replacement service and matches the OE-style spline and length requirements for this application.

TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts with application-specific dimensions and joint configurations. FI-86003 follows that approach for Fiat 500 front axle service, with a 26-spline inboard connection, 25-spline outboard connection, and included axle nut for the specified fitment.

Key Features

• Fits 2012-2013 Fiat 500, front left
• TrakMotive part number FI-86003
• Premium-grade CV axle shaft for driveline repair
• Overall compressed length: 22 in. (559 mm)
• Overall extended length: 23.875 in. (606 mm)
• 26-spline inboard shaft connection and 25-spline outboard shaft connection
• Thermoplastic inboard and outboard joint boots
• Conventional outboard joint type with male inboard joint type
• Axle nut included, M24x1.5 thread, 36 mm hex size
• No ABS tone ring included; ABS ring tooth count: 0

Detailed Description

FI-86003 is a front left CV axle shaft for the Fiat 500, engineered for 2012-2013 models that require a standard duty replacement. The shaft uses a spline-style inboard and outboard connection, with compressed and extended lengths that align with the listed application. The included axle nut features a stake locking type and 36 mm socket size for service work on this drivetrain position. If you are searching for a 2012 Fiat 500 front left CV axle shaft or a 2013 Fiat 500 front left axle replacement, FI-86003 is the direct-reference part number to review.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Clicking or popping during turns from a worn front CV joint
• Vibration under acceleration caused by axle wear or imbalance
• Torn or deteriorated CV boots that allow grease loss and contamination
• Axle shaft play from worn splines or joint components
• Front driveline noise on a 2012-2013 Fiat 500, front left

Installation Notes and Tips

Verify the front left position, spline count, axle nut thread size, and overall length before installation. Confirm whether the vehicle uses a non-ABS application, since this axle does not include an ABS tone ring. Inspect hub, seal, and suspension components during replacement to help prevent repeat driveline noise.

Quality Assurance

TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:2008 and TS 16949:2009 certification, supporting controlled production and quality management for driveline components.
