TrakMotivePart #: FI-86004

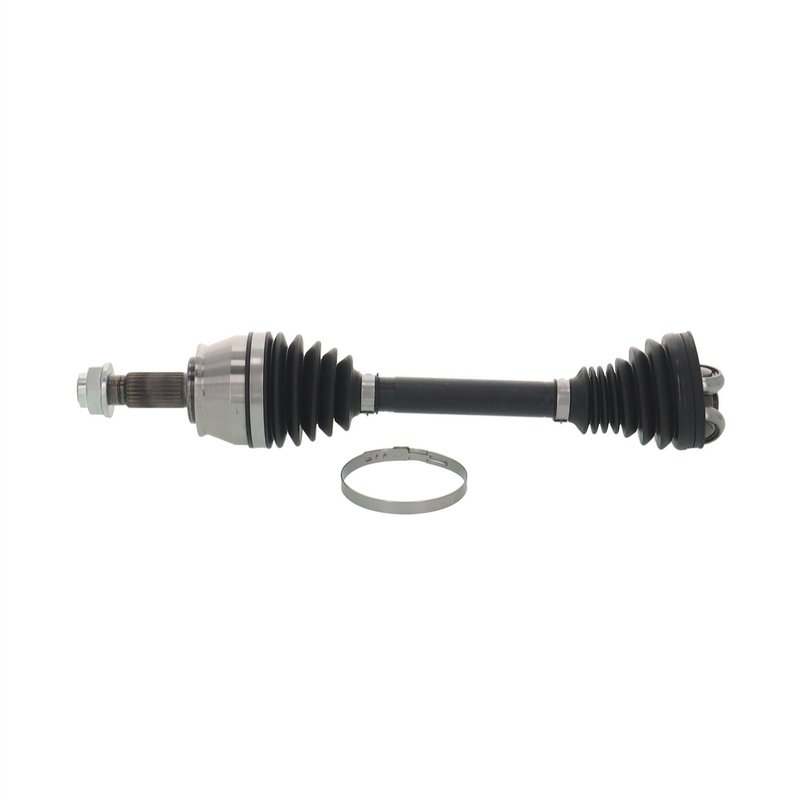

TrakMotive FI-86004 CV Axle Shaft - Front Right
4 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$105.27Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
AAR CV Axle Shaft, Front Right
Fitment: Fiat, 500L
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive FI-86004 CV Axle Shaft - Front Right
| Brand | TrakMotive |
|---|---|
| Part Number | FI-86004 |
| Position | AAR CV Axle Shaft, Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.38 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 42 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Tripod |
| Inboard Shaft Connection Style | Tripod |
| Number Of Outboard Splines | 25 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 19 |
| Overall Compressed Length (mm) | 482 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | # Doors | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Fiat | 500L | 4 Door | 1.4L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2016 | Fiat | 500L | 4 Door | 1.4L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2015 | Fiat | 500L | 4 Door | 1.4L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2014 | Fiat | 500L | 4 Door | 1.4L | L4 | Front Right | OE AAR design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
FI-86004NCV76004
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
