TrakMotivePart #: FI-86006

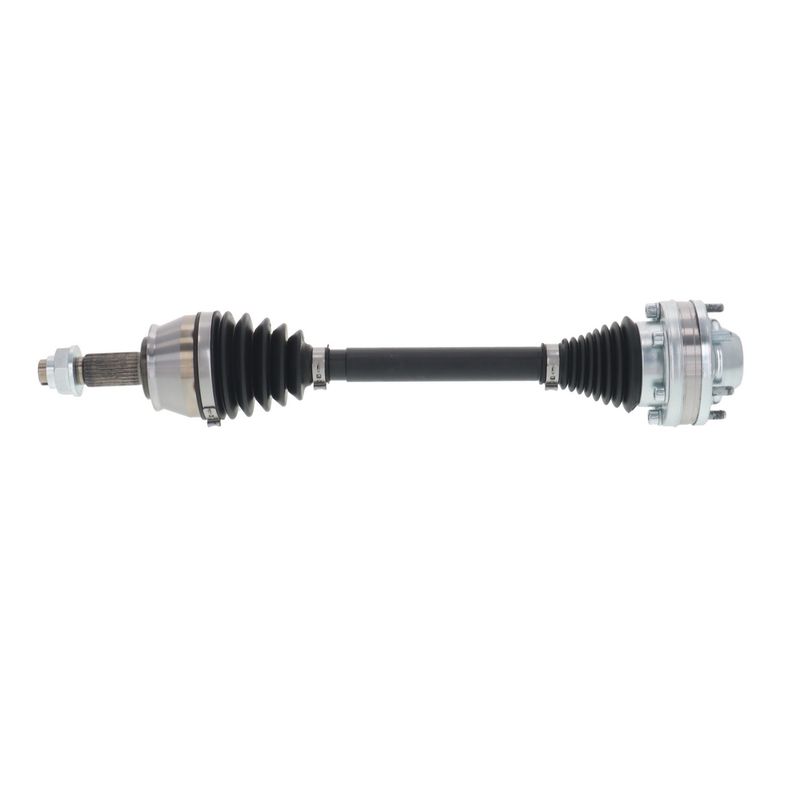

TrakMotive FI-86006 CV Axle Shaft - Front Left
5 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$144.49Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
CV Axle Shaft, Front Left
Fitment: Fiat, 500
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all CV Axle Shaft options
TrakMotive FI-86006 CV Axle Shaft - Front Left
| Brand | TrakMotive |
|---|---|
| Part Number | FI-86006 |
| Position | CV Axle Shaft, Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 7/8 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.1 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Inboard Bolt Head Size (in) | 1/4 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2 1/2 |
| Inboard Bolt Length (mm) | 63 |
| Inboard Bolt Thread Size | M8*1.25 |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 21 1/2 |
| Overall Compressed Length (mm) | 546 |
| Overall Extended Length (mm) | 586 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Fiat | 500 | BATTERY EV (EV/BEV) | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Fiat | 500 | BATTERY EV (EV/BEV) | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Fiat | 500 | BATTERY EV (EV/BEV) | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Fiat | 500 | BATTERY EV (EV/BEV) | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2013 | Fiat | 500 | BATTERY EV (EV/BEV) | Front Left | Standard Duty Replacement; CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
FI-86006
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
