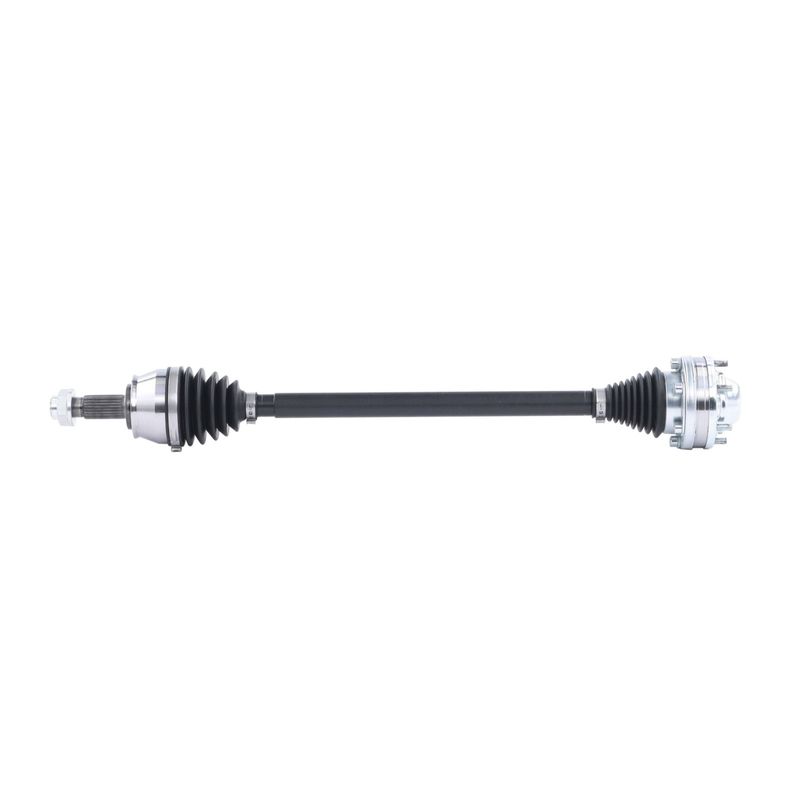

TrakMotive FI-86007 CV Axle Shaft - Front Right
| Brand | TrakMotive FI-86007 |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .875 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24x1.5 |
| Inboard Bolt Head Size (in) | .25 |
| Inboard Bolt Head Size (mm) | 6 |
| Inboard Bolt Head Type | Allen |
| Inboard Bolt Length (in) | 2.5 |
| Inboard Bolt Length (mm) | 63 |
| Inboard Bolt Thread Size | M8x1.25 |
| Inboard Joint Type | Bolt-on |
| Inboard Shaft Connection Style | Bolt-on |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 6 |
| Number Of Inboard Shaft Bolts | 6 |
| Number Of Inboard Splines | 0 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 28.75 |
| Product line | CV Axle Shaft |
| Fits | Fiat · 5 vehicles |
Bolt-on design. Inboard joint connection simplifies driveline service.
Included axle nut. Features M24x1.5 threads and a stake-style lock.
Certified manufacturing. Built under ISO 9001:2008 and TS 16949:2009 standards.
Cross-references TrakMotive FI-86007 for the same application. See all 1.
Product Overview
TrakMotive FI-86007 is a CV axle shaft for the front right position on select Fiat 500 models. It is built as a bolt-on replacement with a conventional outboard joint and a spline-style shaft connection for direct driveline service.
Compatible With 2013-2017 Fiat 500, front right. This part number, FI-86007, is also referenced by TrakMotive under the same application.
Key Features
- Bolt-on inboard joint design for straightforward driveline connection.
- 25-spline outboard shaft connection for the specified application.
- Includes a hex axle nut with M24x1.5 thread size and stake locking type.
- ABS tone ring is not included, matching non-ABS applications unless otherwise noted.
- Overall compressed length of 28.75 in. and extended length of 30.31 in.
Detailed Description
FI-86007 is a replacement CV axle shaft engineered for the Fiat 500 front right driveline position. The assembly uses a bolt-on inboard joint with six inboard shaft bolts and a conventional outboard joint, giving it the connection style expected for this application. The included axle nut features a 36 mm hex size, M24x1.5 thread, and stake-style locking design. FI-86007 is a direct service part for 2013-2017 Fiat 500 models listed in the fitment data.
TrakMotive identifies this CV axle shaft as part of its CV Axle Shaft line, and the product is backed by ISO 9001:2008 and TS 16949:2009 certified manufacturing standards. FI-86007 is also cross-referenced by TrakMotive under the same part number for the same application.
Common Replacement Issues
- Clicking or popping during turns caused by worn CV joints.
- Vibration under acceleration from a damaged axle shaft.
- Grease leakage from a failed axle boot or joint wear.
- Driveline noise from excessive axle play or spline wear.
- Loss of smooth power transfer through the front axle assembly.
Installation Notes
Verify the vehicle is a non-ABS application unless otherwise noted in the catalog, since the axle does not include an ABS tone ring. Confirm axle length, spline count, and axle nut thread size before installation. Use the correct torque procedure for the axle nut and inboard fasteners during service.
Quality Assurance
TrakMotive lists a limited lifetime warranty for this part. Manufacturing is supported by ISO 9001:2008 and TS 16949:2009 certification.
| Year | Make | Model | Submodel | # Doors | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Fiat | 500 | E | 2 Door | BATTERY EV (EV/BEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Fiat | 500 | E | 2 Door | BATTERY EV (EV/BEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Fiat | 500 | E | 2 Door | BATTERY EV (EV/BEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Fiat | 500 | E | 2 Door | BATTERY EV (EV/BEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2013 | Fiat | 500 | E | 2 Door | BATTERY EV (EV/BEV) | Front Right | Standard Duty Replacement; CV Axle Shaft |
