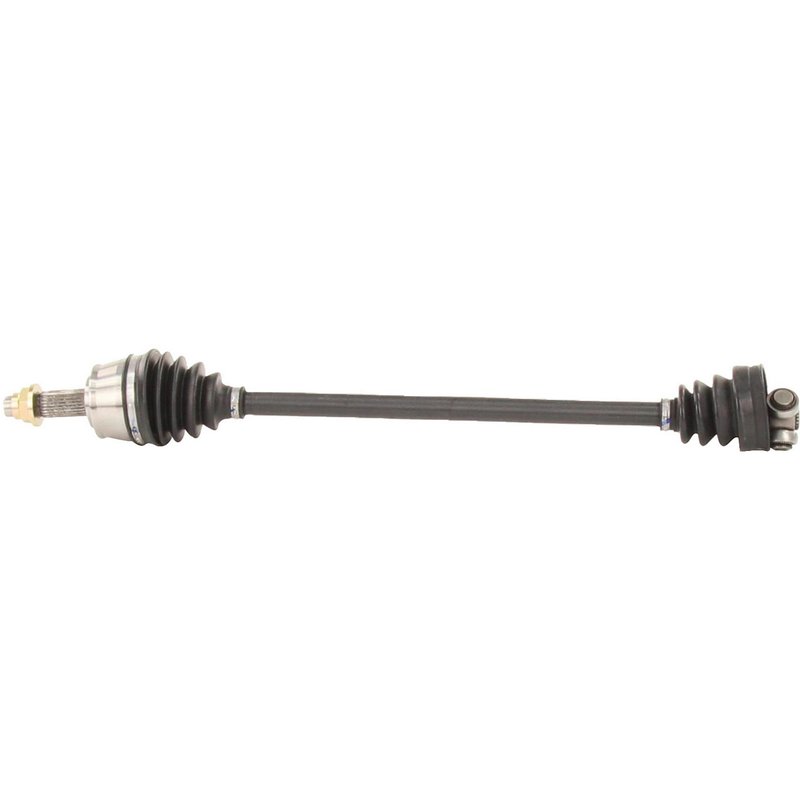

TrakMotive FI-8733 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft FI-8733 for Fiat 500

The TrakMotive CV Axle Shaft FI-8733 is designed specifically for the Fiat 500, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Fiat 500 models
• New, not remanufactured, for consistent quality
• Includes axle nut with stake locking type
• Neoprene boot material for enhanced durability
• Overall compressed length of 29.69 inches (754 mm)
• Hex head axle nut with M24*1.5 thread size
• 25 outboard splines with conventional joint type
• Inboard and outboard shaft connection style: spline

Detailed Features of the TrakMotive CV Axle Shaft FI-8733

This CV axle shaft from TrakMotive’s CV Axle Shaft product line is engineered to meet the specific requirements of the Fiat 500. The axle nut included features a hex head design measuring 1.26 inches (32 mm) across flats, with a height of 0.91 inches (23 mm) and a length of 1.45 inches (37 mm). The stake locking type axle nut ensures secure fastening during operation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. Both the inboard and outboard shaft connections utilize spline styles, with the outboard joint employing a conventional design and 25 splines for proper engagement. The overall compressed length of 29.69 inches (754 mm) matches OEM specifications for a precise fit.

Purpose and Applications for Fiat 500 CV Axle Shaft FI-8733

• Replaces worn or damaged CV axle shafts on Fiat 500 models
• Addresses issues such as clicking noises during turns
• Resolves vibration or shuddering under acceleration
• Fixes torn or leaking CV boots to prevent joint failure
• Restores driveline stability and smooth power transfer

Installation Notes and Tips

When installing the TrakMotive FI-8733 CV axle shaft, ensure the stake locking axle nut is properly secured to prevent loosening. Verify spline engagement on both inboard and outboard connections for a tight fit. Use appropriate torque specifications for the M24*1.5 thread size axle nut. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Fiat 500 models, facilitating straightforward installation.

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft FI-8733 is a new component manufactured to meet or exceed OEM standards. It is part of the CV Axle Shaft product line, which focuses on delivering reliable driveline components engineered for durability and fitment accuracy. This product includes the axle nut and features quality materials such as neoprene boots and precision-machined splines. Warranty coverage details should be confirmed with the distributor or manufacturer to ensure protection against defects.
