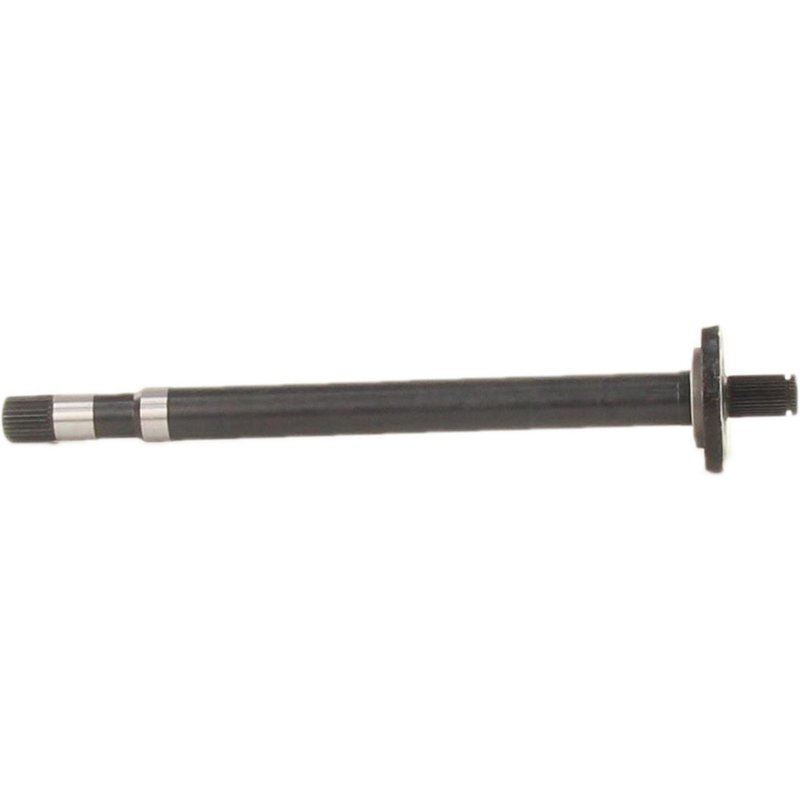

TrakMotive GM-3502 CV Intermediate Shaft - Front Right
| Brand | TrakMotive GM-3502 |
|---|---|
| Position | Front Right |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 34 |
| Outboard Joint Type | Male |
| Overall Compressed Length (in) | 19.27 |
| Overall Compressed Length (mm) | 489.5 |
| Product line | CV Intermediate Shaft |
| Fits | Chevrolet and Pontiac · 12 vehicles |
New part. Built as a new CV intermediate shaft for dependable replacement.
Neoprene boot. Helps protect the joint from dirt and moisture.
ISO certified. Made by a company certified to ISO 9001:2008 and TS 16949:2009.
Cross-references TrakMotive GM-3502 for the same application. See all 1.
CV Intermediate Shaft for GM-3502
TrakMotive GM-3502 is a new CV intermediate shaft for front right applications on select Chevrolet Equinox and Pontiac Torrent models. It is built with a neoprene boot and male inboard and outboard joints to match the specified driveline configuration.
Key Features
- Brand: TrakMotive CV Intermediate Shaft
- Part number: GM-3502
- New replacement shaft, not remanufactured
- Neoprene boot material for driveline protection
- Male inboard joint type
- Male outboard joint type
- 27 inboard splines and 34 outboard splines
- Overall compressed length: 19.27 in. (489.5 mm)
- Limited lifetime warranty
- ISO 9001:2008 and TS 16949:2009 certified manufacturing
Product Details
This TrakMotive CV intermediate shaft is engineered for front right driveline service on 2005-2007 Chevrolet Equinox, 2008-2009 Chevrolet Equinox with Opt. M09, 2006-2007 Pontiac Torrent, and 2008-2009 Pontiac Torrent with Opt. M09. The GM-3502 part number should be matched to the vehicle’s spline count, joint style, and compressed length for proper fitment. This part cross-references TrakMotive GM-3502 for the same application.
What It Helps Fix
- Vibration or shudder from a worn intermediate shaft
- Clicking or driveline noise during acceleration
- Excessive play in the front right CV driveline assembly
- Boot deterioration that can expose joints to contamination
- Fitment issues when replacing the original shaft on listed Equinox and Torrent models
Installation Notes
Verify the vehicle’s year, make, model, position, and option code before ordering. Confirm the 27-spline inboard and 34-spline outboard configuration, along with the 19.27-inch compressed length, against the original shaft. Professional installation and a final road test are recommended after replacement.
Quality Assurance
TrakMotive manufactures this CV intermediate shaft under ISO 9001:2008 and TS 16949:2009 certified quality systems. The GM-3502 is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Chevrolet | Equinox | — | FWD | Front Right | Intermediate Shaft; Opt. M09; CV Intermediate Shaft |
| 2009 | Pontiac | Torrent | — | FWD | Front Right | Intermediate Shaft; Opt. M09; CV Intermediate Shaft |
| 2008 | Chevrolet | Equinox | — | FWD | Front Right | Intermediate Shaft; Opt. M09; CV Intermediate Shaft |
| 2008 | Pontiac | Torrent | — | FWD | Front Right | Intermediate Shaft; Opt. M09; CV Intermediate Shaft |
| 2007 | Chevrolet | Equinox | LT | — | Front Right | CV Intermediate Shaft |
| 2007 | Chevrolet | Equinox | LS | — | Front Right | CV Intermediate Shaft |
| 2007 | Pontiac | Torrent | — | FWD | Front Right | Compatible with CV Intermediate Shaft.; CV Intermediate Shaft |
| 2006 | Chevrolet | Equinox | LT | — | Front Right | CV Intermediate Shaft |
| 2006 | Chevrolet | Equinox | LS | — | Front Right | CV Intermediate Shaft |
| 2006 | Pontiac | Torrent | — | FWD | Front Right | Compatible with CV Intermediate Shaft.; CV Intermediate Shaft |
| 2005 | Chevrolet | Equinox | LT | — | Front Right | CV Intermediate Shaft |
| 2005 | Chevrolet | Equinox | LS | — | Front Right | CV Intermediate Shaft |
