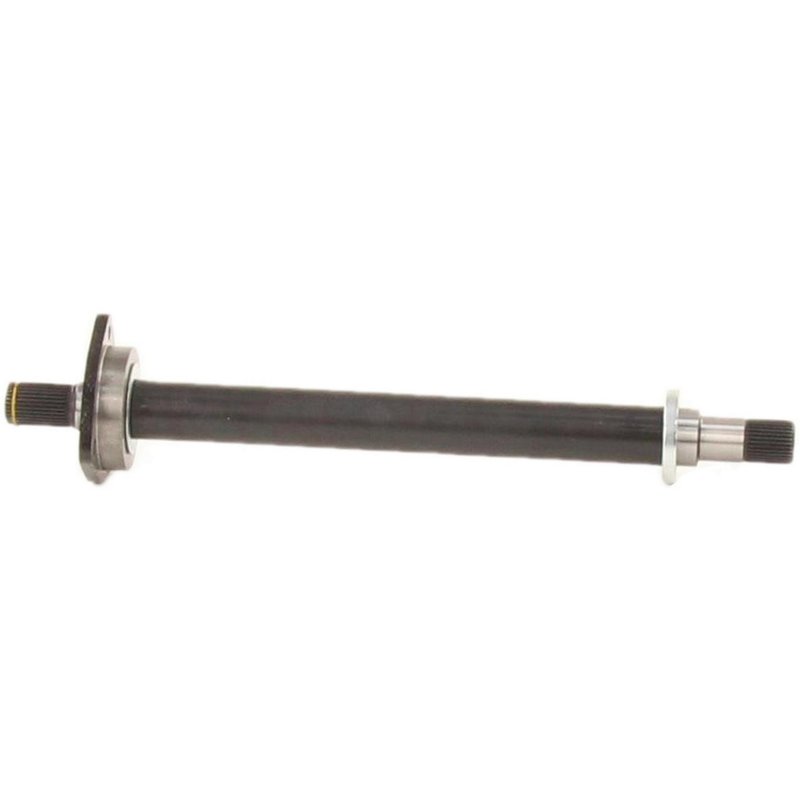

TrakMotive GM-3506 CV Intermediate Shaft - Front Right

Reliable CV Intermediate Shaft for Chevrolet, Pontiac, and Saturn

The TrakMotive CV Intermediate Shaft GM-3506 is designed to provide a precise fit and dependable performance for select Chevrolet, Pontiac, and Saturn models. Engineered with quality materials, this new CV intermediate shaft ensures smooth driveline operation and durability.

• Brand: TrakMotive
• Brand Line: CV Intermediate Shaft
• Part Number: GM-3506
• Boot Material: Neoprene for enhanced flexibility and protection
• Inboard and Outboard Shaft Connection Style: Spline
• Number of Inboard and Outboard Splines: 34 each
• Overall Compressed Length: 18.5 inches (470 mm)
• New, not remanufactured
• Abs Tone Ring and Axle Nut not included

About the TrakMotive CV Intermediate Shaft Product Line

The TrakMotive CV Intermediate Shaft line focuses on delivering reliable driveline components that meet OEM specifications. This product line emphasizes precise spline counts and connection styles to ensure compatibility and performance. The GM-3506 model is part of this line, offering a new shaft with neoprene boot material designed to withstand typical wear and environmental factors.

Product Details and Specifications

The GM-3506 CV Intermediate Shaft features a neoprene boot that provides resistance to cracking and deterioration, helping to protect the internal components from dirt and moisture. Both the inboard and outboard shaft connections utilize a 34-spline design with spline connection styles, ensuring a secure and accurate fit. The overall compressed length of 18.5 inches (470 mm) matches factory specifications for proper driveline alignment. This shaft is new, not remanufactured, which can be important for those seeking original condition parts.

Compatible Vehicles and Common Applications

• Chevrolet Malibu
• Pontiac G6
• Saturn Aura

This CV intermediate shaft is compatible with these specific models, making it suitable for driveline repairs or replacements where the original shaft has worn or failed.

Common Issues Addressed by This CV Intermediate Shaft

• Vibration or noise from worn or damaged intermediate shaft
• Boot deterioration leading to contamination of CV joint
• Loose or damaged spline connections causing driveline play
• Failure of the original shaft due to wear or corrosion
• Improper driveline length causing alignment issues

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the spline counts and shaft length match the original part. Use appropriate tools to avoid damaging the neoprene boot or splines during installation. Note that axle nut and ABS tone ring are not included and must be reused or replaced separately if needed.

Quality Assurance and Warranty

The TrakMotive GM-3506 CV Intermediate Shaft is manufactured to meet or exceed OEM standards. It is supplied new and inspected for quality and fitment. Warranty details should be confirmed with the supplier or manufacturer, as they may vary.
