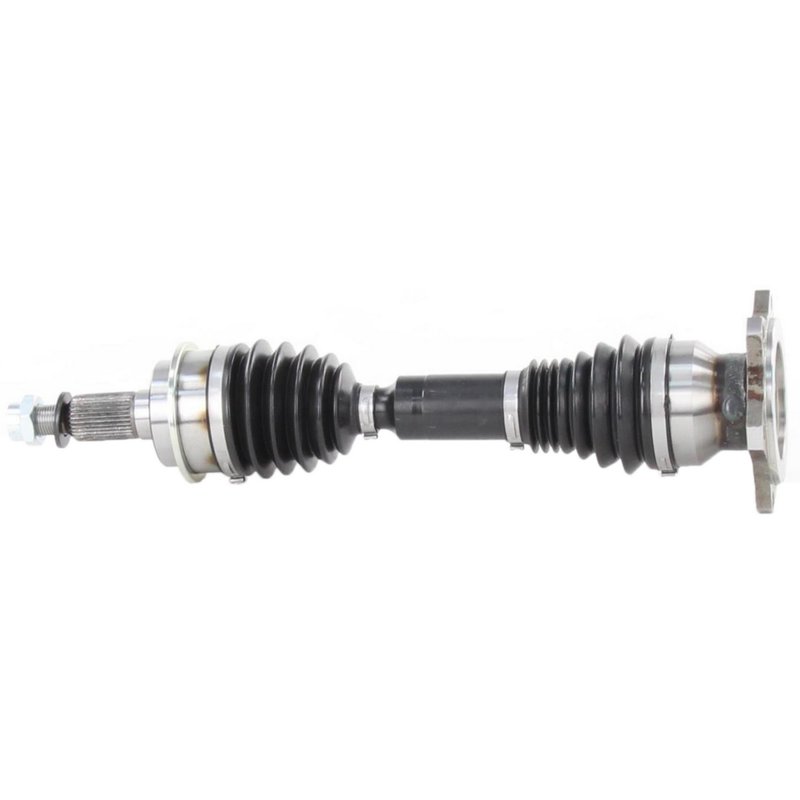

TrakMotive GM-8002XTT CV Axle Shaft - Front Left or Front Right

Extended Travel CV Axle for GM Trucks

TrakMotive GM-8002XTT is an extended travel CV axle shaft for front left and front right applications on select Chevrolet and GMC full-size trucks and SUVs. It is built for extreme articulation, with added shaft travel and a higher joint angle range than a typical OE CV axle.

The Extended Travel CV Axle Shaft line is engineered for lifted or heavily articulated suspension setups where standard OE-style axles can reach their limits. TrakMotive GM-8002XTT combines a sliding center bar with premium-grade CV components to support more suspension movement in demanding front driveline applications.

Key Features

• Extended travel design with up to 44 mm more travel than an OEM CV shaft
• CV joints allow up to 47 degrees of articulation versus a typical 23-degree OE joint angle
• Premium grade construction for front driveline service
• Thermoplastic boot material on both inboard and outboard joints
• Inboard flange-style joint with bolt-on shaft connection
• Outboard spline connection with 33 outboard splines
• Includes axle nut with M24x2 thread, 36 mm socket size, and self-locking design
• Compatible with front left and front right positions on select Chevrolet K2500, Chevrolet K3500, GMC K2500, GMC K3500, Chevrolet Suburban 1500, GMC K1500 Suburban, and Chevrolet/GMC K2500 Suburban applications

Detailed Description

TrakMotive GM-8002XTT is a CV axle shaft built for Chevrolet and GMC 4x4 front suspension setups that require additional operating range. The extended travel design uses a sliding center bar to provide more movement than a standard OEM shaft, while the CV joints are built to handle greater articulation during suspension travel. This makes it a direct-fit driveline solution for vehicles used in extreme articulation conditions, including select Chevrolet K2500 and GMC K3500 front axle applications.

This part cross-references Monroe Shocks & Struts (e.g., NCV10106XDP) for the same application. It is listed for 1988-2000 Chevrolet K2500 and K3500, 1988-2000 GMC K2500 and K3500, and 1995-1999 Chevrolet and GMC Suburban/K2500 Suburban front positions, including GM-8002XTT applications on front left and front right.

What It Helps Address

• CV axle binding during suspension droop or compression
• Premature axle wear in lifted or high-articulation front suspensions
• Noise or vibration caused by an axle operating outside its normal angle range
• Front driveline stress on Chevrolet K2500, GMC K2500, and K3500 trucks
• Fitment issues on select Suburban and K2500 Suburban front axle applications

Installation Notes and Tips

Verify front left or front right position before ordering. Confirm axle nut thread size, spline count, and flange-style inboard connection against the vehicle’s original axle. For listed Chevrolet and GMC applications, always replace in pairs when servicing the front axle assembly, and check for suspension lift or articulation changes that may affect axle angle.

Quality Assurance

TrakMotive identifies this as a premium-grade Extended Travel CV Axle Shaft designed for demanding front driveline use. The GM-8002XTT part number is used for catalog verification and fitment matching on select Chevrolet and GMC K2500, K3500, and Suburban applications.
