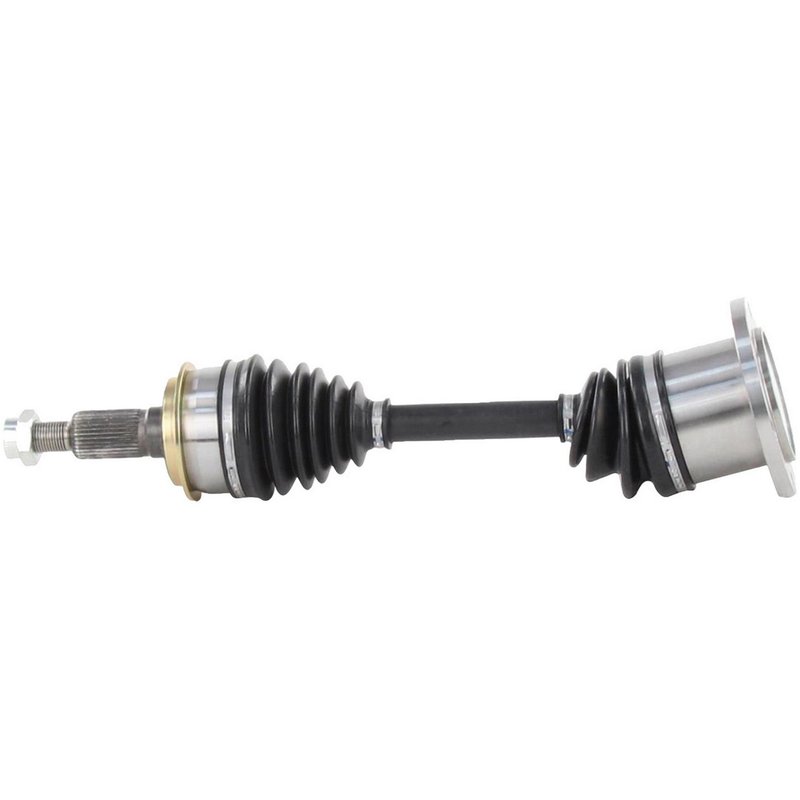

TrakMotive GM-8005 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive GM-8005 CV Axle Shaft

The TrakMotive GM-8005 CV Axle Shaft is designed specifically for Chevrolet Astro and GMC Safari models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: GM-8005
• Compatible with Chevrolet Astro and GMC Safari
• Neoprene boot material for enhanced durability
• Includes self-locking hex axle nut (M24*2 thread size)
• Inboard joint type: Flange with flange shaft connection
• Outboard joint type: Conventional with conventional shaft connection
• Overall compressed length: 20.47 inches (520 mm)
• 33 outboard splines for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for specific vehicle applications. This line emphasizes precise fitment and reliable joint designs, such as flange inboard joints and conventional outboard joints, to maintain driveline integrity and vehicle performance. The GM-8005 is part of this line, offering a neoprene boot and a self-locking hex axle nut to ensure long-lasting service in Chevrolet Astro and GMC Safari vehicles.

Technical Description and Features

The GM-8005 CV Axle Shaft features a neoprene boot that resists wear and environmental damage, protecting the internal joints. The inboard joint uses a flange type connection, providing a secure and stable attachment to the transmission or differential. The outboard joint is conventional, designed for smooth power transfer to the wheel hub. The included axle nut is a self-locking hex type with a 36 mm hex size and a thread size of M24*2, ensuring a secure fit and preventing loosening during operation. The overall compressed length of 20.47 inches (520 mm) matches OEM specifications for proper installation and function.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chevrolet Astro and GMC Safari
• Eliminates axle vibration and noise caused by joint wear
• Restores proper driveline alignment and smooth power delivery
• Prevents grease leakage with durable neoprene boot
• Addresses axle nut loosening issues with self-locking design

Installation Notes and Tips

Ensure compatibility with Chevrolet Astro or GMC Safari before installation. Use proper torque specifications for the M24*2 self-locking axle nut to avoid over-tightening or under-tightening. Inspect the axle shaft splines and joint surfaces for damage before installation. The 33 outboard splines must align correctly with the hub for secure fitment. It is recommended to replace the axle nut included with the shaft to maintain locking integrity.

Quality Assurance and Warranty

The TrakMotive GM-8005 CV Axle Shaft is a new, OEM-style replacement part manufactured to meet or exceed original equipment specifications. It undergoes quality control inspections to ensure durability and fitment accuracy. The product includes a self-locking axle nut to maintain secure installation. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
