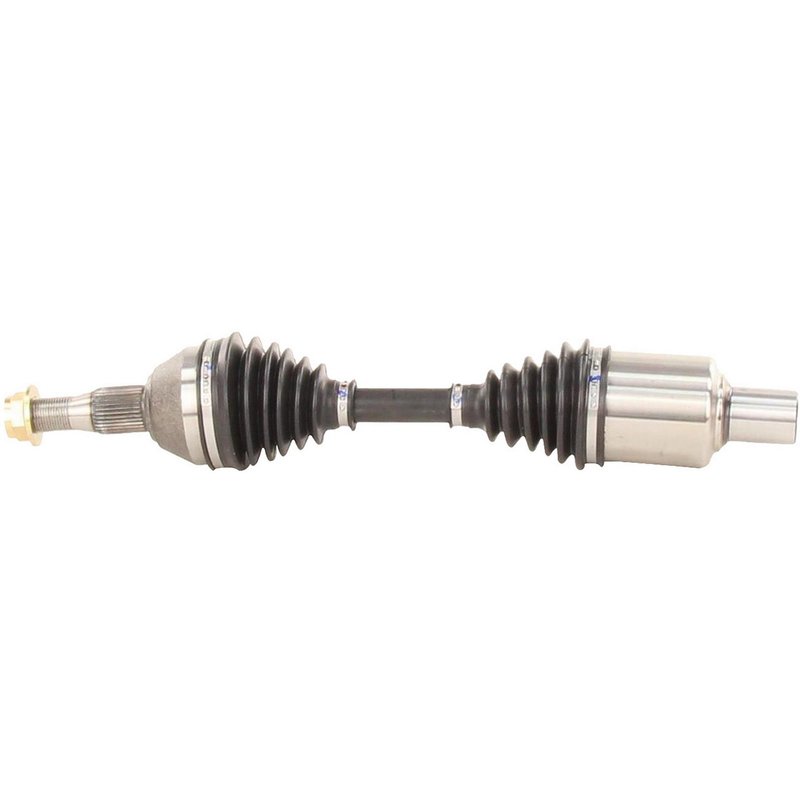

TrakMotive GM-8006 CV Axle Shaft - Front Left or Front Right

Overview of the TrakMotive CV Axle Shaft GM-8006

The TrakMotive CV Axle Shaft GM-8006 is engineered for reliable driveline performance in select Cadillac models. Designed specifically for Cadillac Allante, DeVille, Eldorado, and Seville vehicles, this new CV axle shaft ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Cadillac Allante, DeVille, Eldorado, and Seville
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Female inboard joint with 41 splines and conventional outboard joint with 33 splines
• Overall compressed length of 21.26 inches (540 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. The GM-8006 part number represents a new CV axle shaft designed to meet factory specifications, featuring a neoprene boot for resistance to wear and environmental factors. This product line emphasizes compatibility and durability for Cadillac front-wheel drive systems.

Technical Specifications and Features

This CV axle shaft includes a self-locking axle nut with a hex head type, measuring 6/7 inches (22 mm) in height and 1 2/7 inches (32.8 mm) across the hex. The axle nut length is 1 1/2 inches (37.9 mm) with an M27*2 thread size. The inboard joint is female with 41 splines, while the outboard joint is conventional with 33 splines, ensuring secure shaft connection and smooth power transfer. The neoprene boot material provides flexibility and protection against contaminants, extending the service life of the joint.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Cadillac Allante, DeVille, Eldorado, and Seville
• Addresses issues such as axle shaft vibration and noise
• Resolves grease leakage from torn or cracked CV boots
• Eliminates axle nut loosening with self-locking design
• Restores proper driveline function and vehicle handling

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the part number GM-8006 matches the original axle shaft specifications for your Cadillac model. Use appropriate tools to tighten the self-locking hex axle nut to the manufacturer’s torque specifications. Inspect the CV boot for proper seating to prevent contamination. It is recommended to replace axle nuts with the included new nut to maintain secure fastening.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft GM-8006 is a new, not remanufactured, component built to meet OEM standards. The use of durable neoprene boot material and precision-machined splines ensures long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality standards for driveline components.
