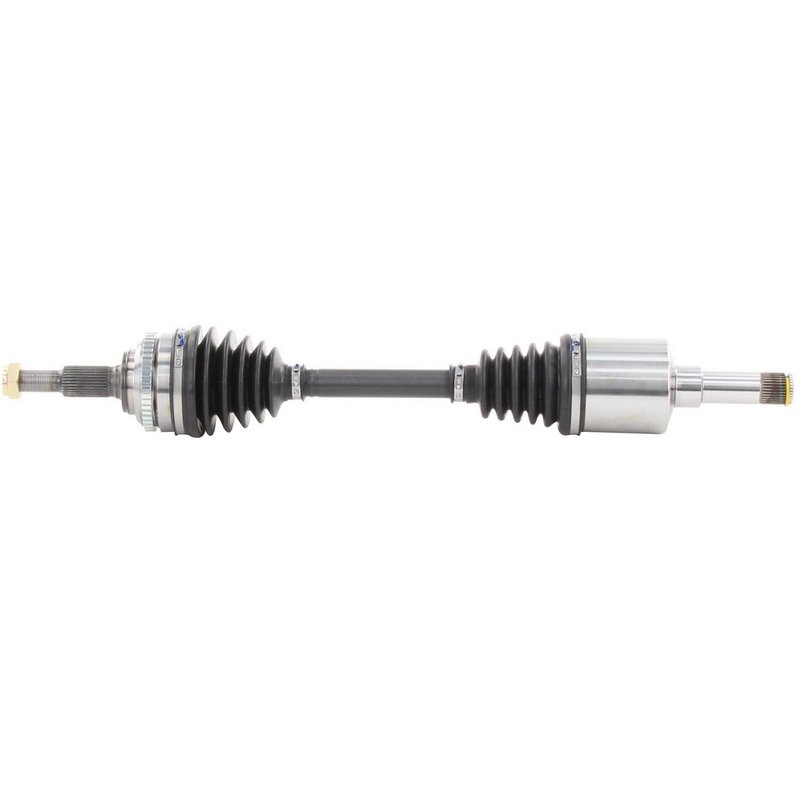

TrakMotive GM-8011 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8011 CV Axle Shaft

The TrakMotive GM-8011 CV Axle Shaft is engineered for reliable driveline performance in Saturn vehicles. Designed specifically for Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2 models, this new CV axle shaft ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2 models
• Includes a self-locking hex axle nut (M20*1.5 thread size)
• Equipped with a neoprene boot for durability and protection
• Features a 47-tooth ABS ring with a toothed tone ring included
• Overall compressed length of 24.72 inches (628 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to meet OEM specifications. This line includes shafts with precise spline counts and connection styles to ensure compatibility and durability. The GM-8011 model features a male inboard joint and a conventional outboard joint, providing a secure and reliable driveline connection for Saturn vehicles.

Technical Specifications and Features

The GM-8011 CV Axle Shaft includes a 47-tooth ABS ring with a toothed design and an included tone ring, which supports accurate wheel speed sensor readings. The axle nut is a self-locking hex type, measuring 1 1/6 inches (30 mm) across the flats, with a height of 14 mm (5/9 inch) and a length of 34.6 mm (1 1/3 inch). The shaft features 34 inboard splines and 33 outboard splines, with male and conventional connection styles respectively. The neoprene boot material offers resistance to wear and environmental factors, helping to maintain joint integrity over time.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2
• Addresses issues such as axle shaft vibration or clicking noises during turns
• Resolves ABS sensor errors related to damaged or missing tone rings
• Fixes grease leaks caused by torn or degraded CV boots
• Restores driveline stability and smooth power transfer to the wheels

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the axle nut thread size (M20*1.5) matches your vehicle’s specifications. Use the included self-locking hex axle nut and torque it to manufacturer-recommended specifications. Inspect the CV boot for proper seating and avoid damaging the neoprene material during installation. Confirm the ABS tone ring is properly aligned to maintain accurate sensor readings.

Quality Assurance and Warranty

The TrakMotive GM-8011 CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a self-locking axle nut and durable neoprene boot to ensure long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable performance in Saturn driveline applications.
