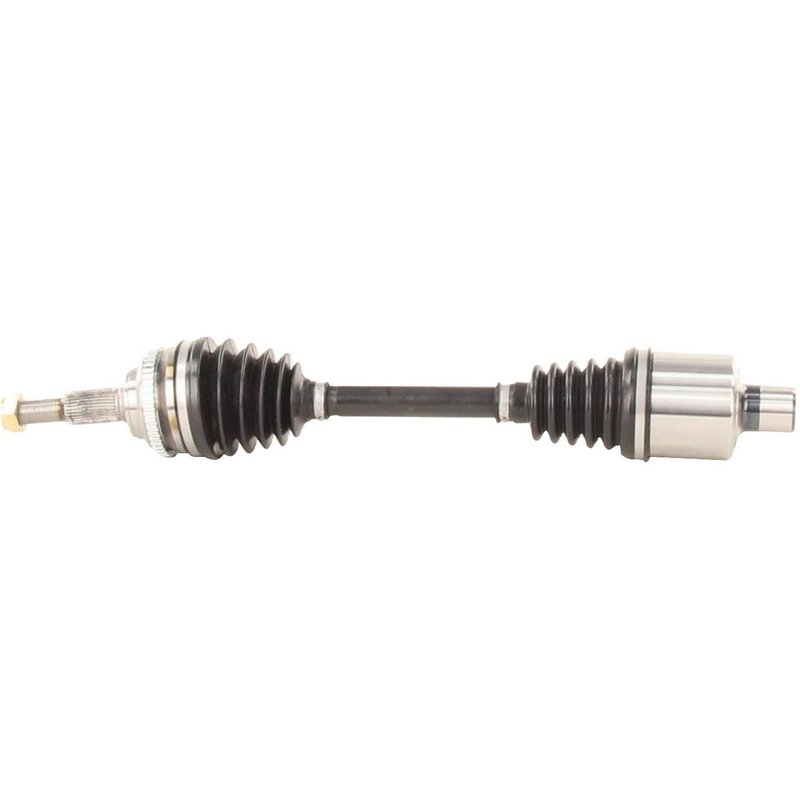

TrakMotive GM-8012 CV Axle Shaft - Front Right

Overview of TrakMotive GM-8012 CV Axle Shaft

The TrakMotive GM-8012 CV Axle Shaft is designed specifically for Saturn vehicles including SC1, SC2, SL, SL1, SL2, SW1, and SW2 models. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2 models
• Includes a self-locking hex axle nut (M20*1.5 thread size)
• Neoprene boot material for enhanced durability and protection
• 47-tooth ABS ring with included toothed tone ring for accurate ABS sensor operation
• Overall compressed length of 22.37 inches (568.3 mm) for exact fit
• Female inboard joint with 34 splines and conventional outboard joint with 33 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The GM-8012 model features a combination of female inboard joint and conventional outboard joint types, designed to match the original equipment specifications for Saturn models. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like the self-locking hex axle nut to ensure secure installation and long-term reliability.

Technical Specifications and Features

This CV axle shaft includes a 47-tooth ABS ring with a toothed tone ring included, which is essential for maintaining proper ABS sensor function. The axle nut is a hex head type, measuring 30 mm across flats with a height of 14 mm and a length of 34.6 mm, featuring a self-locking design to prevent loosening during operation. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint uses a female connection style with 34 splines, while the outboard joint is conventional with 33 splines, ensuring compatibility with the specified Saturn models. The overall compressed length of 22.37 inches (568.3 mm) matches factory dimensions for a direct replacement.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2
• Restores proper ABS sensor signal with included toothed ABS tone ring
• Eliminates axle vibration or clicking noises caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive GM-8012 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Verify the ABS tone ring is properly seated to avoid sensor errors. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct fitment on compatible Saturn models, but it is recommended to compare spline counts and lengths before installation.

Quality Assurance and Warranty

The GM-8012 CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. It includes the axle nut and ABS tone ring for a complete replacement solution. TrakMotive products undergo quality control to ensure durability and fitment accuracy. Warranty details should be confirmed with the distributor or manufacturer.
