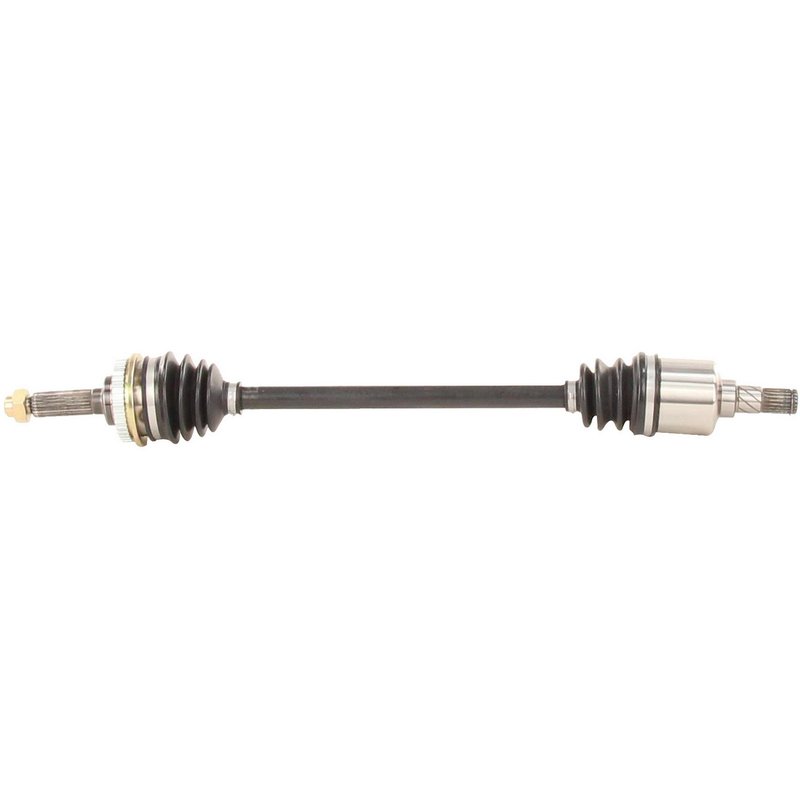

TrakMotive GM-8015 CV Axle Shaft - Front Left

Overview of TrakMotive GM-8015 CV Axle Shaft for Chevrolet Metro

The TrakMotive GM-8015 CV Axle Shaft is designed specifically for Chevrolet and Geo Metro models, providing reliable driveline performance. This new CV axle shaft features a robust construction with precise specifications to ensure compatibility and durability.

• Compatible with Chevrolet Metro and Geo Metro vehicles
• Includes a 42-tooth ABS ring with a toothed design for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Axle nut included with hex head type and stake locking mechanism
• Overall compressed length of 27.09 inches (688 mm) for proper fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components engineered for precise fit and function. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts to facilitate installation. The GM-8015 model exemplifies this approach by integrating a toothed ABS tone ring and conventional joint types to maintain vehicle safety and driveline integrity.

Technical Specifications and Features

The GM-8015 CV Axle Shaft features a 42-tooth ABS ring designed to work with the vehicle's anti-lock braking system, ensuring accurate wheel speed data. The ABS tone ring is included and has a toothed design for consistent sensor readings. The axle nut is a hex head type measuring 1 1/6 inches (30 mm) across flats, with a height of 3/4 inch (19 mm) and a length of 1 1/3 inches (34.6 mm). It uses an M18x1.5 thread size and a stake locking mechanism to secure the assembly. The neoprene boot material offers resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint is a male type with 22 splines, while the outboard joint is conventional with 23 splines, ensuring proper connection and torque transfer. The overall compressed length of 27.09 inches (688 mm) matches factory specifications for Chevrolet and Geo Metro models.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Chevrolet Metro and Geo Metro vehicles
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

When installing the TrakMotive GM-8015 CV Axle Shaft, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This axle shaft is designed for direct replacement on compatible Chevrolet and Geo Metro models, simplifying the installation process.

Quality Assurance and Warranty

The GM-8015 CV Axle Shaft is a new, not remanufactured, component built to meet OEM standards. TrakMotive ensures quality through precise manufacturing and material selection, including durable neoprene boots and secure locking axle nuts. While specific warranty details are not provided, the product is designed to offer reliable service life consistent with factory replacement parts.
