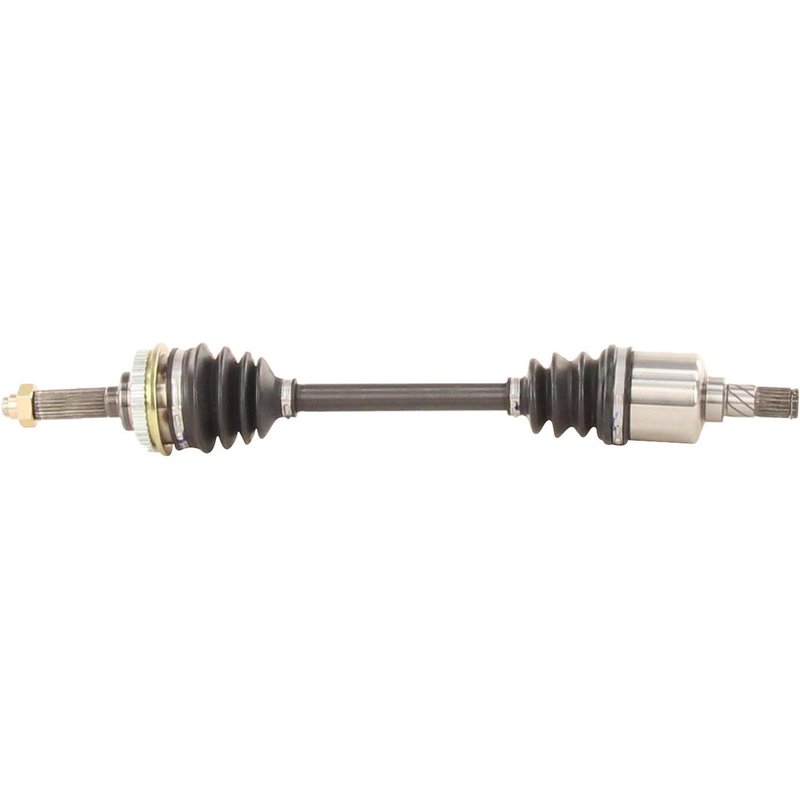

TrakMotive GM-8018 CV Axle Shaft - Front Left
| Brand | TrakMotive GM-8018 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 42 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 19 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M18*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 22 |
| Number Of Outboard Splines | 23 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 22.48 |
| Overall Compressed Length (mm) | 571 |
| Product line | CV Axle Shaft |
| Fits | Chevrolet, Suzuki, and Geo · 14 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot. Flexible material helps protect the joint from wear.
ABS tone ring included. Toothed ring is built in for ABS-equipped applications.
Cross-references Cardone New 66-1314, Cardone Reman 60-1314 and Four Seasons 73501 for the same application. See all 31.
CV Axle Shaft for Metro and Swift
TrakMotive GM-8018 is a new CV axle shaft built for front left applications on select Chevrolet Metro, Suzuki Swift, and Geo Metro models. It is engineered with the specified spline counts, ABS tone ring, and axle nut details needed for a direct-fit driveline repair.
- Brand: TrakMotive CV Axle Shaft line
- Part number: GM-8018
- New replacement axle shaft, not remanufactured
- Front left position
- Inboard male shaft connection with 22 splines
- Outboard conventional joint with 23 splines
- Neoprene boot material
- ABS tone ring included, 42-tooth toothed ring
- Axle nut included, M18 x 1.5 thread
- Overall compressed length: 22.48 in. (571 mm)
Product Details
The TrakMotive GM-8018 CV axle shaft is built for driveline service where the original axle has worn joints, damaged splines, torn boots, or ABS-related concerns. This axle uses a male inboard connection, a conventional outboard joint, and the listed 42-tooth ABS ring to match the required front left setup on 1998-2001 Chevrolet Metro, 1995-2001 Suzuki Swift, and 1995-1997 Geo Metro applications. TrakMotive identifies this axle as part of its CV Axle Shaft line, and the GM-8018 reference is useful when cross-checking replacement needs for Metro and Swift front axle service.
This part cross-references Cardone New 66-1314 and Four Seasons 73501 for the same application.
Common Repair Uses
- Restores drive transfer when the original axle shaft is worn or damaged
- Addresses clicking or popping from a failing CV joint
- Replaces a torn boot that has allowed grease loss and contamination
- Helps correct vibration caused by axle wear or imbalance
- Supports ABS function when the original tone ring is damaged or missing
Installation Notes
Verify front left fitment by year, make, model, spline count, and ABS configuration before installation. Confirm axle nut thread size, hex size, and compressed length against the removed part to ensure proper fit. Inspect hub, seals, and related suspension components during service, and torque fasteners to the vehicle manufacturer’s specifications.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
Vehicle Fitment
- Fits 1998-2001 Chevrolet Metro, front left
- Fits 1995-2001 Suzuki Swift, front left
- Fits 1995-1997 Geo Metro, front left
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2001 | Chevrolet | Metro | Automatic | 1.3L | L4 | Front Left | CV Axle Shaft |
| 2001 | Suzuki | Swift | Automatic | — | — | Front Left | CV Axle Shaft |
| 2000 | Chevrolet | Metro | Automatic | 1.3L | L4 | Front Left | CV Axle Shaft |
| 2000 | Suzuki | Swift | Automatic | — | — | Front Left | CV Axle Shaft |
| 1999 | Chevrolet | Metro | Automatic | 1.3L | L4 | Front Left | CV Axle Shaft |
| 1999 | Suzuki | Swift | Automatic | — | — | Front Left | CV Axle Shaft |
| 1998 | Chevrolet | Metro | Automatic | 1.3L | L4 | Front Left | CV Axle Shaft |
| 1998 | Suzuki | Swift | Automatic | — | — | Front Left | CV Axle Shaft |
| 1997 | Geo | Metro | Automatic | 1.3L | L4 | Front Left | CV Axle Shaft |
| 1997 | Suzuki | Swift | Automatic | — | — | Front Left | CV Axle Shaft |
| 1996 | Geo | Metro | Automatic | 1.3L | L4 | Front Left | CV Axle Shaft |
| 1996 | Suzuki | Swift | Automatic | — | — | Front Left | CV Axle Shaft |
| 1995 | Geo | Metro | Automatic | 1.3L | L4 | Front Left | CV Axle Shaft |
| 1995 | Suzuki | Swift | Automatic | — | — | Front Left | CV Axle Shaft |
